Hyundai Santa Fe 2023 Fuse Box Info

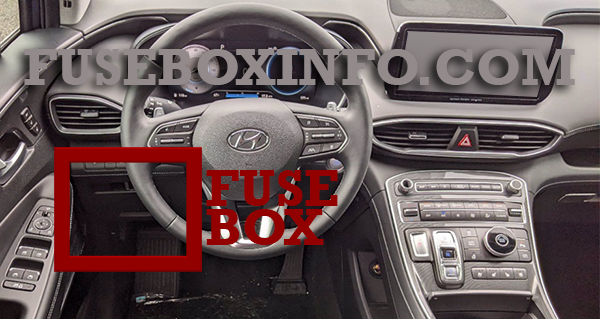

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

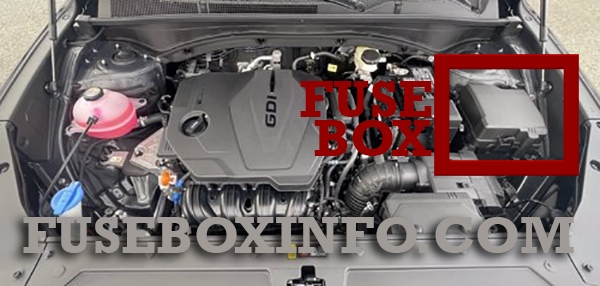

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MODULE 4 | 7.5A | Data Link Connector, Stop Lamp Switch, Driver Area Unit |
| AIR BAG 1 | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| BRAKE SWITCH |
7.5A | IBU, Stop Lamp Switch |
| MODULE 9 | 15A | Front A/C Control Module, Driver Door Area Unit, Power Tailgate Module, Low DC-DC Converter, Rear Occupant Alert (ROA) Sensor,Driver IMS Control Module, Head-Up Display, Driver/Passenger Power Outside Mirror |
| MODULE 10 | 10A | Blind-Spot Collision Warning Unit LH/RH, Front Wireless Charger |
| AIR BAG IND | 10A | Overhead Console Assembly, Instrument Cluster |
| IBU 1 | 7.5A | IBU |
| MODULE 2 | 7.5A | AC Inverter Outlet, AC Inverter Module, Front Air Ventilation Control Module, Front Seat Warmer Control Module, 2nd Seat Warmer LH/ RH Control Module |
| MODULE 8 | 7.5A | Hazard Switch, Key Solenoid, Mood Lamp, Rain Sensor, Mood Lamp Unit, Mood Lamp #1/#2 |
| S/HEATER FRT |
20A | Data Link Connector, Front Air Ventilation Control Module, Front Seat Warmer Control Module |
| AIR BAG 2 | 15A | SRS Control Module |
| E-SHIFTER1 | 10A | Electronic Shift Dial |
| E-SHIFTER2 | 7.5A | Electronic Shift Dial |
| MODULE 5 | 7.5A | Lane Departure Warning Unit, Crash Pad Switch, IBU, Console Switch, 4WD ECM, Surround View Monitor Unit, Upper Console Switch, Parking Collision Avoidance Assist Unit |
| IBU 2 | 15A | IBU, Ignition Switch, BLE (Bluetooth Low Energy) Unit, IAU (Identity Authentication Unit), Driver/Passenger Smart Key Outside Handle |
| SUNROOF 2 | 20A | Panoramic Sunroof |
| MODULE 1 | 7.5A | IBU, IAU (Identity Authentication Unit) |
| P/WINDOW RH |
25A | Passenger Safety Power Window Module, Passenger Power Window Switch, Rear Power Window Switch RH, Rear Safety Power Window RH |
| ISG | 15A | Low DC-DC Converter (AMP), Instrument Cluster, Front A/C Control Module, A/V & Navigation Head Unit, Head Up Display, Audio |
| RR SEAT (LH) | 25A | 2nd Seat Warmer LH Control Module, 2nd Seat LH Folding Actuator |
| CLUSTER | 7.5A | Instrument Cluster, Head Up Display |
| MDPS | 10A | MDPS Unit ❈ MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering). |
| A/C | 7.5A | E/R Junction Block (Blower Relay, PTC Heater Relay) |
| CHILD LOCK | 15A | ICM Relay Box (Child Lock/Unlock Relay) |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, Tailgate Relay, Driver Door Unlock Relay |
| SUNROOF 1 | 20A | Panoramic Sunroof |
| P/WINDOW LH |
25A | Driver Safety Power Window Module, Rear Power Window Switch LH, Rear Safety Power Window LH |
| MODULE 3 | 7.5A | IBU |
| MODULE 6 | 7.5A | Audio, A/V & Navigation Head Unit, A/V & Navigation Keyboard, Front A/C Control Module, Front Wireless Charger, Electro Chromic Mirror, Low DC-DC Converter |
| WASHER | 15A | Multifunction Switch |
| RR SEAT (RH) | 25A | 2nd Seat Warmer RH Control Module, 2nd Seat RH Folding Actuator |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| AMP | 25A | Low DC-DC Converter (With AMP) |
| ACC | 7.5A | IBU, Front USB Charger, Low DC-DC Converter, Rear USB Charger LH/RH, IAU (Identity Authentication Unit) |
| P/SEAT (PASS) |
30A | Passenger Seat Manual Switch |
| P/SEAT (DRV) | 30A | Driver IMS Control Module, Driver Seat Manual Switch |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| COOLING FAN1 | 80A | [BLDC 600W] Cooling Fan Controller |
| COOLING FAN2 | 60A | [BLDC 400W] Cooling Fan Controller |
| B+4 | 50A | ICU Junction Block (Fuse - MODULE8, SUNROOF1, AMP, P/WINDOW RH, S/HEATER DRV/PASS) |
| B+2 | 50A | ICU Junction Block (IPS 8 SPOC+/IPS 10/IPS 11/ IPS 13/IPS 14/IPS 15) |
| B+3 | 50A | ICU Junction Block (Fuse - E-SHIFTER1, P/ SEAT (DRV, P/SEAT (PASS), P/WINDOW LH, RR SEAT(LH)) |
| BLOWER | 40A | Blower Relay |
| IG2 | 40A | Start Relay, PCB Block (PDM (IG2) Relay) |
| ABS 2 | 30A | ESC Module |
| MDPS | 100A | MDPS Unit ❈ MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering) |
| ABS 3 | 60A | ESC Module |
| B+6 | 60A | PCB Block (B+) |
| DCT | 60A | TCM |
| E-CVVT1 | 50A | PCB Block (E-CVVT Relay) |
| REAR HEATED | 40A | Rear Heated Relay |
| INVERTER | 40A | AC Inverter Module |
| E-SHIFTER 1 | 40A | SCU |
| HEATED MIRROR |
10A | Rear Heated Relay, Driver/Passenger Outside Mirror, Front A/C Control Module |
| E-CVVT3 | 20A | PCM, PCB Block (E-CVVT Relay) |
| E-CVVT2 | 20A | PCM, PCB Block (E-CVVT Relay) |
| A/C2 | 10A | Blower Relay, Front A/C Control Module |
| VACUUM PUMP2 |
10A | ESC Module, Vacuum Pump Relay, Vacuum Pump |
| B+5 | 50A | ICU Junction Block (Fuse - DOOR LOCK, IBU1, IBU2, BRAKE SWITCH, CHILD LOCK, RR SEAT(RH), SUNROOF2) |
| EOP2 | 60A | [G4KP] Electronic Oil Pump |
| B+1 | 50A | ICU Junction Block (IPS 1 SPOC+/IPS 2/IPS 3/IPS 5/IPS 6/IPS 7/Long Term Load Latch Relay, Short Term Load Latch Relay) |
| PTC HEATER | 50A | PTC Heater Relay |
| TRAILER3 | 30A | Trailer Module |
| POWER TAIL GATE |
30A | Power Tail Gate Unit |
| TRAILER2 | 30A | Trailer Module |
| FUEL PUMP | 20A | Fuel Pump Relay |
| AMS | 10A | Battery Sensor |
| VACUUM PUMP1 | 20A | Vacuum Pump Relay |
| 4WD | 20A | 4WD ECM |
| E-SHIFTER2 | 10A | SCU |
| TRAILER1 | 30A | Trailer Module |
| IG1 | 40A | PDM (IG1) Relay |
| TCU2 | 10A | TCM |
| SENSOR3 | 20A | Injector #2/#4 |
| SENSOR1 | 10A | Injector #1/#3 |
| ECU3 | 10A | PCM |
| EOP3 | 10A | [G4KN] Electronic Oil Pump |
| POWER OUTLET1 | 20A | Luggage Power Outlet |
| WIPER2 | 10A | IBU, PCM |
| HORN | 15A | Horn Relay |
| ABS4 | 10A | ESC Module |
| ECU2 | 20A | PCM |
| SENSOR2 | 10A |
[G4KN] Canister Close Valve, Cooling Fan Controller, Variable Oil Pump Solenoid Valve, Purge Control Solenoid Valve, Oil Control Valve, Variable Intake Solenoid Valve, A/CON Relay
|
| SENSOR4 | 15A | Oxygen Sensor (Up/Down) |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4 |
| ACC | 20A | ICU Junction Block (Fuse - ACC) |
| POWER OUTLET2 |
20A | Front Power Outlet |
| WIPER FRT1 | 30A | Front Wiper Motor, Front Wiper (Low) Relay |
| E-SHIFTER3 | 10A | SCU |
| FCA | 10A | Front Radar Unit |
| ECU1 | 15A | PCM |
| A/C1 | 10A | TCM |
| TCU1 | 20A | PCM |
| REAR HEATED2 |
10A | E/R Junction Block (Rear Heated Relay) |
