Hyundai Santa Fe 2013 Fuse Box Info

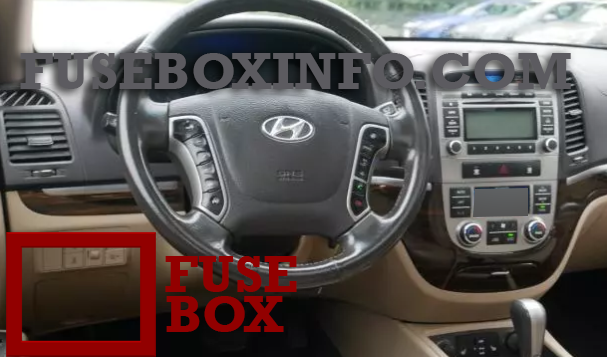

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| A/BAG IND | 10A | Instrument Cluster |
| A/BAG | 10A | SRS Control Module, A/C Control Module, Passenger Occupant Detection Sensor |
| MODULE 5 | 7.5A | Sunroof, Smart Key Control Module, BCM, Rear Seat Warmer LH/RH, Electro Chromic Mirror, Driver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module |
| MODULE 1 | 7.5A | Sport Mode Switch, Key Solenoid, Console Switch LH/RH, Front Console Switch, Rear Power Window Switch LH/RH |
| FOG LAMP RR | 10A | - |
| MEMORY 2 | 10A | BCM, Tire Pressure Monitoring Module, Electro Chromic Mirror, Driver/Passenger Door Module, Auto Light & Photo Sensor, Data Link Connector, A/C Control Module, Instrument Cluster |
| SMART KEY 2 | 7.5A | Smart Key Control Module, Immobilizer Module |
| MODULE 3 | 10A | BCM, Instrument Cluster, Tire Pressure Monitoring Module, A/C Control Module, Audio, Driver/Passenger Door Module, ATM Shift Lever Indicator, Rear Seat Warmer LH/RH, 4WD ECM, Driver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module, MTS Module, Rear Parking Assist Sensor LH/RH, A/V & Navigation Head Unit, Rear Parking Assist Sensor (Center) LH/RH, AMP |
| SMART KEY 4 | 10A | Start/Stop Button Switch, Immobilizer Module |
| INTERIOR LAMP | 15A | Cargo Lamp, Vanity Lamp LH/RH, Overhead Console Lamp, Center Room Lamp, Personal Lamp LH/RH |
| MULTI MEDIA | 15A | Audio, A/V & Navigation Head Unit, MTS Module |
| MDPS | 7.5A | MDPS Unit |
| HTD STRG | 15A | Steering Wheel Switch |
| MEMORY 1 | 10A | RF Receiver, Ignition Key Ill. & Door Warning Switch |
| START | 7.5A | W/O IMMO. & Smart Key : ICM Relay Box (Burglar Alarm Relay) With IMMO. or Smart Key : PCM, Transaxle Range Switch, Smart Key Control Module, E/R Fuse & Relay Box (Start Relay) |
| MODULE 2 | 10A | Crash Pad Switch, Multipurpose Check Connector, Head Lamp Leveling Device Actuator LH/RH, Auto Head Lamp Leveling Device Module, Stop Lamp Switch |
| CORNERING LAMP | 10A | - |
| SUNROOF 2 | 20A | Sunroof |
| S/HEATER RR | 15A | Rear Seat Warmer LH/RH |
| IGN | 20A | E/R Fuse & Relay Box (Fuse - ABS 3, SENSOR 5, TCU) |
| A/CON 1 | 7.5A | E/R Fuse & Relay Box (Blower Relay), A/C Control Module, Cluster Ionizer |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch |
| SMART KEY 1 | 25A | Smart Key Control Module |
| S/HEATER FRT | 20A | Driver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module |
| A/CON 2 | 7.5A | A/C Control Module |
| C/LIGHTER | 20A | Front Power Outlet & Cigarette Lighter, Luggage Power Outlet |
| WIPER FRT | 15A | Multifunction Switch, E/R Fuse & Relay Box (Wiper HI Relay, IG2 Relay) |
| BLOWER RR | 20A | - |
| P/WDW RH | 25A | Passenger Door Module, Rear Power Window Switch RH |
| RR HTD | 10A | A/C Control Module |
| BRAKE SWITCH | 7.5A | Smart Key Control Module, Stop Lamp Switch |
| SUNROOF 1 | 20A | Sunroof |
| P/WDW LH | 25A | Driver Safety Power Window Module, Driver Door Module, Rear Power Window Switch LH |
| FUEL LID | 15A | Fuel Fillar Door Switch |
| SMART KEY 3 | 7.5A | Smart Key Control Module |
| STOP LAMP | 15A | Stop Signal Electronic Module |
| P/SEAT PASS | 20A | Passenger Seat Manual Switch |
| AMP | 30A | AMP |
| MODULE 4 | 10A | Audio, A/V & Navigation Head Unit, BCM, Overhead Console Lamp, AMP, MTS Module, Power Outside Mirror Switch, E/R Fuse & Relay Box (Power Outlet Relay) |
| DR LOCK | 20A | Door Lock/Unlock Relay, Tail Gate Relay, ICM Relay Box (Dead Lock Relay |
| P/SEAT DRV | 30A | Driver IMS Module, Driver Seat Manual Switch, Driver Lumbar Support Switch |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | MDPS Unit |
| B+2 | 60A | Smart Junction Box (IPS 1 (4CH), IPS 2 (1CH), IPS 5 (1CH), Fuse - SUNROOF 1, P/SEAT PASS, P/SEAT DRV) |
| BLOWER | 40A | Blower Relay |
| RR HTD | 40A | Rear Defogger Relay |
| ABS1 | 40A | ESC Module, Multipurpose Check Connector |
| ABS2 | 40A | ESC Module |
| C/FAN | 60A | Cooling Fan Relay |
| B+3 | 60A | Smart Junction Box (Fuse - MODULE 1, SMART KEY 4, SUNROOF 2, SMART KEY 1, Leak Current Autocut Device) |
| B+4 | 50A | Smart Junction Box (IPS 3 (4CH), IPS 6 (2CH), Fuse - F/LID, STOP LAMP, DR LOCK, BRAKE SWITCH) |
| EMS | 40A | EMS Box |
| IG1 | 40A | W/O Smart Key : Ignition Switch, With Smart Key - ACC Relay, IG1 Relay |
| IG2 | 40A | Start Relay, IG2 Relay, W/O Smart Key : Ignition Switch |
| TRAILER | 30A | Trailer Power Outlet |
| B+1 | 50A | Smart Junction Box (Fuse - S/HEATER RR, S/HEATER FRT, P/WDW RH, P/WDW LH) |
| HORN | 15A | Horn Relay |
| VACUUM PUMP | 20A | Vacuum Pump Relay |
| DEICER | 15A | Front Deicer Relay |
| POWER OUTLET | 25A | Power Outlet Relay |
| 4WD | 20A | 4WD ECM |
| AMS | 10A | Battery Sensor |
| AMS (WIPER) | 10A | BCM, PCM |
| WIPER FRT | 25A | Wiper LO Relay, Front Wiper Motor |
| B/UP LAMP | 10A | M/T - Back-Up Lamp Switch, A/T - Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, Audio, A/V & Navigation Head Unit |
| ABS3 | 7.5A | ESC Module |
| SENSOR5 | 7.5A | PCM |
| TCU | 15A | A/T : Transaxle Range Switch, M/T : Fuse - B/UP LAMP (M/T) |
| F/PUMP | 15A | Fuel Pump Relay |
| ECU 1 | 15A | PCM |
| ECU 2 | 10A | - |
| SENSOR 3 | 10A | Fuel Pump Relay, Camshaft Position Sensor #1/#2 |
| IGN COIL | 20A | Condenser, Ignition Coil #1/#2/#3/#4 |
| SENSOR 2 | 10A | Purge Control Solenoid Valve, Variable Intake Solenoid Valve(G4KJ), RCV Control Solenoid Valve(G4KH),Crankshaft Position Sensor, Oil Control Valve #1/#2, Canister Close Valve |
| SENSOR 1 | 15A | Oxygen Sensor (Up), Oxygen Sensor(Down), E/R Fuse & Relay Box (Cooling Fan Relay) |
| SENSOR 4 | 20A | PCM |
| B/A HORN | 10A | Burgl Aralarm Horn Relay |
