Hyundai Santa Fe 2020 Fuse Box Info

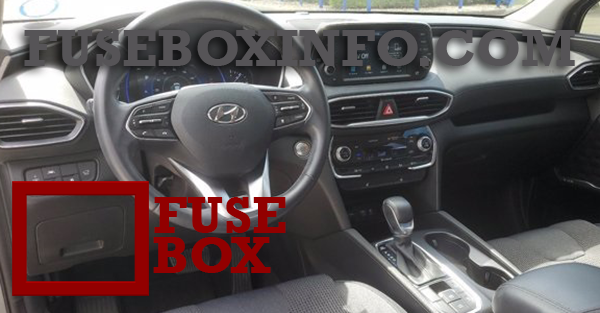

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

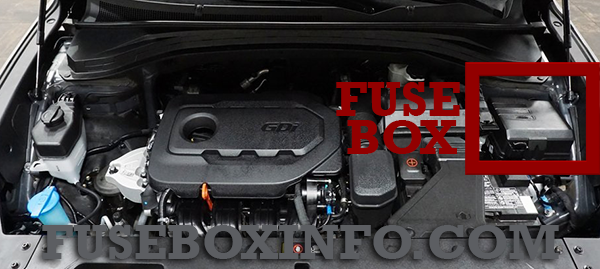

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MODULE 4 | 7.5A | Data Link Connector, Stop Lamp Switch, Driver Door Module |
| AIR BAG 1 | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| BRAKE SWITCH |
7.5A | IBU, Stop Lamp Switch |
| MODULE 9 | 15A | Audio, A/V & Navigation Head Unit, Instrument Cluster, A/C Control Module, Low DC-DC Converter (Audio/AMP), Head-Up Display, Rain Sensor, Rear Occupant Alert (ROA) Sensor, Driver IMS Control Module, Driver Door Module, Driver/Passenger Power Outside Mirror, Power Liftgate Module |
| MODULE 10 | 10A | Data Link Connector, Blind-Spot Collision Warning Unit LH/RH, Front Wireless Charger, Rear A/C Control Module, Electro Chromic Mirror |
| AIR BAG IND | 10A | A/C Control Module, Instrument Cluster |
| IBU 1 | 7.5A | IBU |
| MODULE 2 | 7.5A | Surround View Monitor, AC Inverter Outlet, AC Inverter Unit, Rear Seat Heater LH/RH, Front Air Ventilation Control Module, Front Seat Warmer Control Module |
| MODULE 8 | 7.5A | Hazard Switch, Key Solenoid, Driver/Passenger Smart Key Outside Handle |
| S/HEATER FRT |
20A | Front Air Ventilation Control Module, Front Seat Warmer Control Module |
| AIR BAG 2 | 15A | SRS Control Module |
| MODULE 5 | 7.5A | Lane Departure Warning Unit, Crash Pad Switch, IBU, Console Switch, ATM Shift Lever IND., AWD ECM, Sport Mode Switch |
| IBU 2 | 15A | IBU, Ignition Switch |
| SUNROOF 2 | 20A | Panoramic Sunroof |
| MODULE 1 | 7.5A | IBU |
| P/WINDOW RH |
25A | Passenger Safety Power Window Module, Passenger Power Window Switch, Rear Power Window Switch RH |
| ISG | 15A | Low DC-DC Converter (AMP), Instrument Cluster, A/C Control Module, A/V & Navigation Head Unit, Head Up Display |
| RR SEAT (LH) | 25A | Rear Seat Heater LH, Rear Seat Folding Switch LH |
| CLUSTER | 7.5A | Instrument Cluster, Head Up Display |
| MDPS | 10A | MDPS Unit |
| A/C | 7.5A | E/R Junction Block (Blower Relay), SUB Junction Block (PTC Heater 1/2 Relay), A/C Control Module, Cluster Ionizer |
| CHILD LOCK | 15A | ICM Relay Box (Child Lock/Unlock Relay) |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, Tailgate Relay, Two Turn Unlock Relay |
| REAR A/C | 10A | Rear A/C Control Module, Rear Blower Motor, A/C Control Module |
| SUNROOF 1 | 20A | Panoramic Sunroof |
| P/WINDOW LH |
25A | Driver Safety Power Window Module, Rear Power Window Switch LH |
| MODULE 3 | 7.5A | IBU |
| MODULE 6 | 7.5A | Audio, A/V & Navigation Head Unit, Low DC-DC Converter (Audio/AMP), A/C Control Module, Electro Chromic Mirror, Center Low Panel Switch, Driver IMS Control Module, Rear Seat Heater LH/RH, Front Air Ventilation Control Module, Front Seat Warmer Control Module |
| WASHER | 15A | Multifunction Switch |
| RR SEAT (RH) | 25A | Rear Seat Heater RH, Rear Seat Folding Switch RH |
| WIPER (REAR) |
15A | Rear Wiper Relay, Rear Wiper Motor |
| AMP | 25A | AMP, Low DC-DC Converter (AMP) |
| ACC | 7.5A | Surround View Monitor, AMP, IBU, Front Wireless Charger, Front USB Charger, Low DC-DC Converter (Audio/AMP), Audio, A/V & Navigation Head Unit, Rear USB Charger LH/RH |
| P/SEAT (PASS) |
30A | Passenger Seat Manual Switch |
| P/SEAT (DRV) | 30A | Driver IMS Control Module, Driver Seat Manual Switch |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | MDPS Unit |
| EPB | 60A | ESC Module |
| B+4 | 50A | ICU Junction Block (Fuse - MODULE 8, S/HEATER FRT, P/WINDOW RH, AMP, SUNROOF) |
| B+3 | 50A | ICU Junction Block (Fuse - P/WINDOW LH, RR SEAT (LH), P/SEAT (DRV), P/SEAT (PASS)) |
| B+2 | 50A | ICU Junction Block (IPS 8/IPS 10/IPS 11/IPS 12/IPS 13/IPS 14/IPS 15) |
| REAR HEATED | 40A | Rear Heated Relay |
| ABS 1 | 40A | ESC Module |
| BLOWER | 40A | Blower Relay |
| ABS 2 | 40A | ESC Module |
| PTC HEATER 1 | 50A | SUB Junction Block (PTC Heater 1 Relay) |
| PTC HEATER 2 | 50A | SUB Junction Block (PTC Heater 2 Relay) |
| B+1 | 50A | ICU Junction Block (IPS 1/IPS 2/IPS 3/IPS 5/IPS 6/IPS 7, Long/Short Term Load Latch Relay) |
| B+5 | 50A | ICU Junction Block (Fuse - DOOR LOCK, IBU 1, IBU 2, BRAKE SWITCH, CHILD LOCK, RR SEAT (RH), SUNROOF 2) |
| INVERTER | 30A | AC Inverter Unit |
| POWER TAILGATE | 30A | Power Tail Gate Module |
| TRAILER 3 | 30A | Trailer Lamp |
| IG2 | 40A | Start Relay, ICU Junction Block (Fuse - A/C, WASHER, WIPER (REAR), MODULE 1, MODULE 2, REAR A/C) |
| OIL PUMP | 40A | Electronic Oil Pump Module |
| COOLING FAN 2 | 50A | Cooling Fan Relay |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, A/C Control Module |
| A/C 2 | 10A | A/C Control Module |
| WIPER FRT 2 | 10A | Wiper (LO) Relay, Front Wiper Motor |
| ECU 4 | 15A | PCM |
| AMS | 10A | Battery Sensor |
| VACUUM PUMP | 20A | Vacuum Pump |
| 4WD | 20A | AWD ECM |
| SENSOR 6 | 15A | Electronic Oil Pump Module, [2.0 Turbo-GDI] Vacuum Pump |
| ABS 3 | 10A | ESC Module |
| SENSOR 7 | 10A | Smart Cruise Control Radar |
| SENSOR 5 | 10A | Canister Close Valve, E/R Junction Block (Cooling Fan Relay) |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4 |
| SENSOR 1 | 10A | [2.4 GDI] Fuel Pump Relay, Variable Intake Solenoid Valve, Purge Control Solenoid Valve, Oil Control Valve [2.0 T-GDI] Fuel Pump Relay, RCV Control Solenoid Valve, Purge Control Solenoid Valve, Oil Control Valve |
| E-CVVT 2 | 20A | PCM |
| A/C 1 | 10A | [2.4 GDI] A/CON Relay |
| WIPER FRT 1 | 25A | Wiper Main Relay |
| TCU 2 | 10A | Transmission Range Switch |
| ECU 3 | 10A | PCM |
| B/ALARM HORN | 15A | Burglar Alarm Horn Relay, Horn Relay |
| HORN | 15A | Horn Relay |
| FUEL PUMP | 20A | Fuel Pump Relay |
| ECU 1 | 20A | PCM |
| SENSOR 2 | 10A | [2.4 GDI] A/C Comp Relay, Oxygen Sensor (Up/Down) [2.0 T-GDI] Oxygen Sensor (Up/Down) |
| E-CVVT 1 | 20A | PCM |
| POWER OUTLET 1 | 20A | Front Power Outlet |
| POWER OUTLET 2 | 20A | Front Power Outlet |
| ACC | 10A | ICU Junction Block (Fuse - ACC) |
| TCU 1 | 15A | PCM |
| IG 1 | 40A | PDM (IG1) Relay |
