Hyundai Santa Cruz 2025 Fuse Box Info

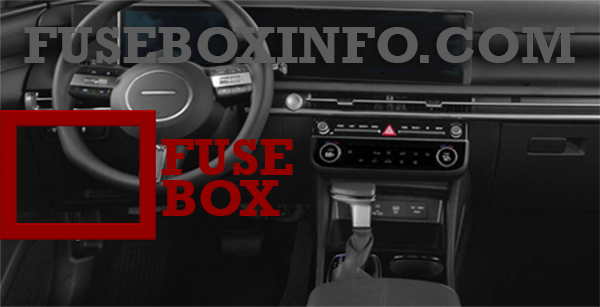

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

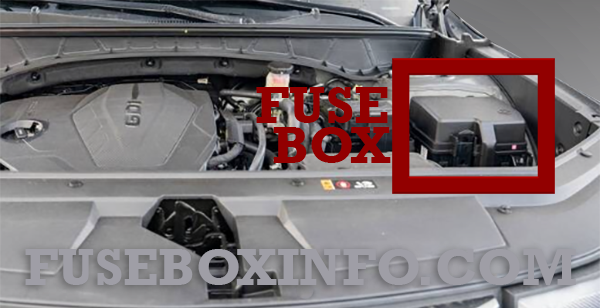

Engine compartment fuse box location:
Fuse Box Diagram | Layout

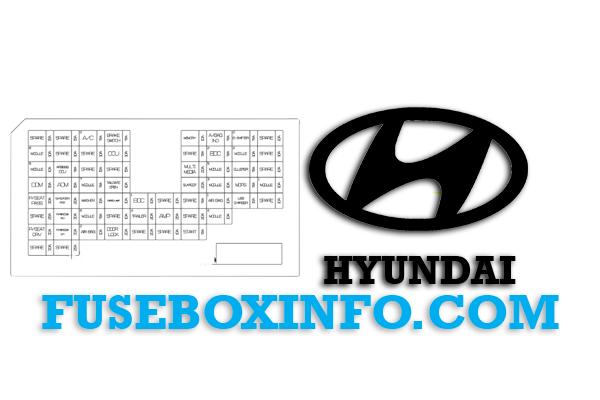

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| A/C2 | 7.5A | A/C Control Module, A/C Control Switch, E/R Junction Block (PTC Heater Relay) |
| BRAKE SWITCH | 7.5A | BDC, Stop Lamp Switch |
| MEMORY | 10A | A/C Control Module(Auto / Manual), USB Connector Assembly, Fingerprint Recognition Unit, Rear Corner Radar LH/RH, Mood Lamp Unit, Crash Pad Mood Lamp, Driver/Passenger Door Mood Lamp, ADAS Unit (Parking) |
| A/BAG IND | 7.5A | Overhead Console |
| E-SHIFTER2 | 7.5A | Sport Mode Switch |
| MODULE8 | 10A | Data Link Connector, Crash Pad Switch, Hazard Switch, Rain Sensor, Driver Power Seat Switch, Driver/Passenger Smart Key Outside Handle, Powernet Domain Controller(EX), Driver Power Seat Module E/R Junction Block (E-CVVT Relay) |
| CCU | 10A | CCU |
| BDC2 | 7.5A | BDC |
| MODULE2 | 10A | CCU, Stop Lamp Switch |
| MODULE9 | 10A | ICC Unit |
| wireless DCU | 7.5A | DCU |
| MODULE5 | 10A | AMP, Driver Power Seat Module(IMS), Smart Phone Wireless Charger, Data Link Connector, CCNC Head Unit, Fingerprint Recognition Unit, ICC Unit, Electro Chromic Mirror, A/C Control Module, A/C Control Switch, Powerent Domain Controller |
| CLUSTER | 7.5A | Cluster Unit |
| DDM | 15A | Power Window Main Switch, Driver Outside Mirror |
| ADM | 15A | Passenger Power Outside Mirror |
| MODULE7 | 7.5A | 12v Lithium Auxiliary Battery |
| TAILGATE OPEN | 10A | Tailgate Open Relay |
| SUNROOF | 20A | Sunroof Controller (Glass Motor) |
| MODULE3 | 10A | Power Window Main Switch |
| MDPS | 7.5A | MDPS Unit |
| MODULE1 | 10A | BDC, CCU, CCNE Head Unit , ADAS Unit (Parking) |
| P/SEAT PASS | 30A | Passenger Power Seat Switch |
| S/HEATER FRT | 20A | Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| WASHER | 15A | Multifunction Switch |
| BDC1 | 10A | BDC, Sport Mode Switch |
| AIR BAG1 | 10A | SRS Control Module, Passenger Occupant Detection Sensor |
| USB CHARGER | 15A | Front USB Charger , Rear USB Charger |
| P/WINDOW RH | 30A | Passenger Safety Power Window Module, Rear Power Window Switch RH, Passenger Power Window Switch |
| MODULE6 | 7.5A | BDC (IG2) |
| AMP | 25A | Low DC-DC Converter |
| MODULE4 | 10A | Multifunction Front View Camera, Crash Pad Switch, ADAS Unit (Parking), 4WD ECM, Console Switch, A/T Shift Lever Indicator |
| P/SEAT DRV | 30A | Driver Power Seat Module, Driver Power Seat Switch |
| P/WINDOW LH | 30A | Driver Safety Power Window Module, Rear Power Window Switch LH |
| AIR BAG2 | 10A | SRS Control Module |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, Two Turn Unlock Relay |

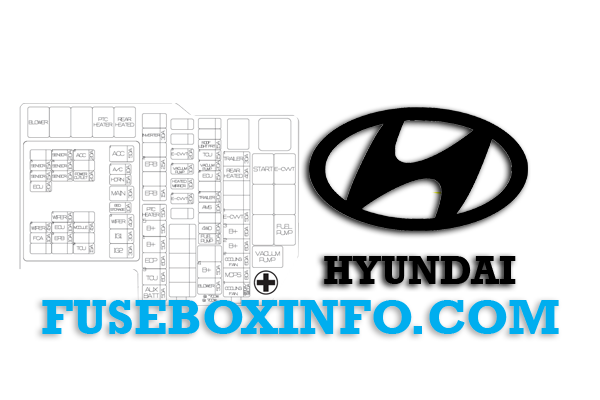

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | MDPS Unit |
| COOLING FAN1 |
80/100A | Cooling Fan Controller |
| B+2 | 60A | PDC (IPS9, IPS11, IPS12) |
| B+3 | 60A | PDC (Fuse - P/SEAT DRV, P/SEAT PASS, P/WINDOW LH, P/WINDOW RH, S/HEATER FRT, wireless DCU, MODULE8, MODULE9, DDM, ADM) |
| E-CVVT1 | 50A | E/R Junction Block (E-CVVT Relay) |
| TRAILER1 | 30A | Trailer Connector |
| COOLING FAN2 |
60A | Cooling Fan Controller |
| REAR HEATED |
40A | Rear Heated Relay |
| AUX BATT | 50A | 12V Lithium Auxiliary Battery (20AH) |
| B+4 | 40A | PDC (IPS13, Fuse - BRAKE SWITCH, TRAILER3, DOOR LOCK, BDC1, CCU, S/HEATER RR, TAILGATE OPEN, Long Term Load Latch Relay (Fuse - MULTIMEDIA, MEMORY)) |
| FUEL PUMP | 20A | E/R Junction Block (Fuel Pump Relay) |
| 4WD | 20A | 4WD ECM |
| AMS | 10A | Battery Sensor |
| ECU2 | 15A | PCM/ECM |
| TCU1 | 15A | PCM |
| TRAILER2 | TRAILER2 | Trailer Connector |
| HEATED MIRROR |
10A | E/R Junction Block (Rear Heated Relay), Driver/Passenger Power Outside Mirror, Rear Defogger |
| BLOWER | 50A | E/R Junction Block (Blower Relay) |
| REAR HEATED |
40A | E/R Junction Block (Rear Heated Relay) |
| B+5 | 50A | PDC (Fuse - SUMROOF1, SUNROOF2, AMP, AIRBAG2) |
| B+1 | 60A | PDC (IPS2, IPS3, IPS4, IPS5, IPS6, IPS7) |
| PTC HEATER | 50A | E/R Junction Block (PTC Heater Relay) |
| EPB1 | 15A | ESC Module |
| EPB2 | 25A | ESC Module |
| EOP | 60A | Electronic Oil Pump |
| ACC1 | 50A | PDM (ACC) Relay |
| MAIN | 30A | Main Relay |
| WIPER3 | 40A | Front Wiper1 On Relay |
| IG1 | 30A | PDM (IG1) Relay |
| IG2 | 30A | PDM (IG2) Relay, E/R Junction Block (Start Relay) |
| SENSOR1 | 20A | Ignition Coil #1/#2/#3/#4 |
| ACC2 | 20A | PDC (Fuse - MODULE1, USB CHARGER) |
| SENSOR5 | 15A | Injector #1/#2/#3/#4 |
| SENSOR4 | 10A | Oil Level Sensor, E/R Junction Block (Fuel Pump Relay) |
| INVERTER | 30A | AC Inverter Module |
| SENSOR2 | 15A | Oxygen Sensor (Up), Oxygen Sensor (Down) |
| SENSOR3 | 10A | Oil Control Valve, Valiable Oil Pump Solenoid, Purge Control Solenoid Valve, Cooling Fan Controller, Canister Close Valve, RCV Control Solenoid Valve |
| POWER OUTLET | 20A | Front Power Outlet |
| A/C1 | 10A | A/C Comp Relay |
| HORN | 15A | Horn Relay |
| ECU1 | 20A | PCM |
| VACUUM PUMP1 |
20A | Vacuum Pump Relay |
| VACUUM PUMP2 |
10A | ESC Module, Electronic Vaccum Pump |
| WIPER1 | 30A | Front Wiper2 (Low) Relay, Front Wiper Motor |
| WIPER2 | 7.5A | Front Wiper2 (Low) Relay, BDC, Front Wiper Motor |
| ECU3 | 10A | PCM, ECM |
| FCA | 10A | Front Radar |
| EPB3 | 10A | ESC Module |
| ROOF LIGHT FRT |
15A | Accessory Light Switch |
| TCU2 | 15A | TCM |
