Hyundai Elantra N 2025 Fuse Box Info

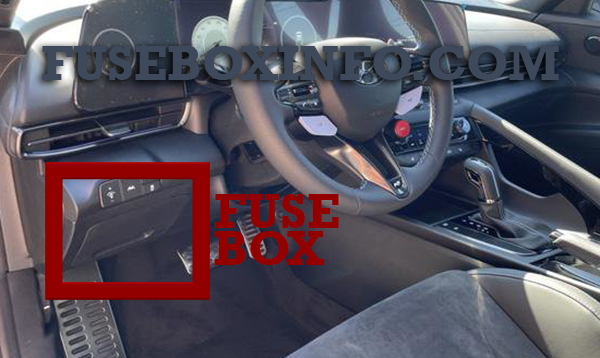

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

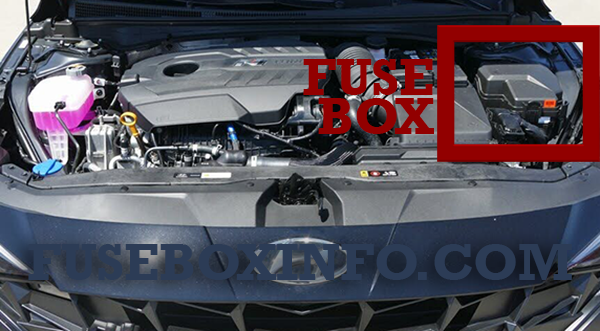

Engine compartment fuse box location:

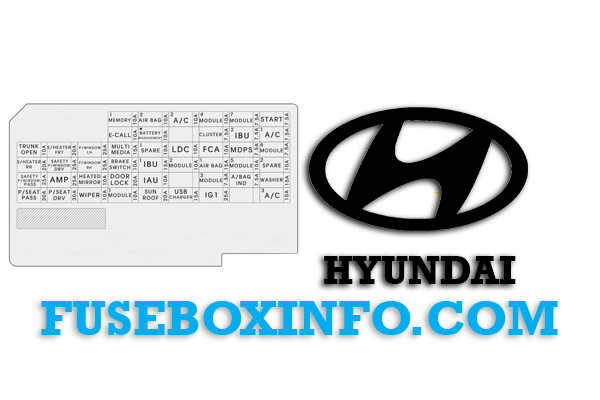

Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MEMORY1 | 10A | Crash Pad Switch, Driver/Passenger Power Outside Mirror, Instrument Cluster, Air Conditioner Controller, Air Conditioner Control Module |
| AIR BAG2 | 10A | SRS (Supplemental Restraint System) Control Module |
| MODULE4 | 10A | Front View Camera, Crash Pad Switch, IBU, Front Console Switch, LSD Control Module, ECS Unit |
| MODULE7 | 7.5A | Not Used |
| START | 7.5A | IBU, ECM (Engine Control Module), Engine Room Junction Block (RLY.5) |
| CLUSTER | 7.5A | Instrument Cluster |
| IBU2 | 7.5A | IBU |
| A/C1 | 7.5A | Air Conditioner Control Module, Air Conditioner Controller, PTC HEATER RLY |
| TRUNK | 10A | Trunk Lid Latch |
| S/HEATER FRT | 20A | Front Seat Warmer Control Module |
| P/WINDOW LH | 25A | Power Window Main Switch |
| MULTIMEDIA | 15A | Audio/Video & Navigation Head Unit |
| MDPS | 7.5A | MDPS (Motor Driven Power Steering) Unit |
| MODULE6 | 7.5A | IBU, IAU |
| S/HEATER RR | 20A | Rear Seat Warmer Control Module |
| SAFETY P/ WINDOW DRV |
25A | Driver Safety Power Window Module |
| P/WINDOW RH | 25A | Power Window Main Switch, Passenger Power Window Switch |
| BRAKE SWITCH | 10A | Stop light Switch, IBU |
| IBU1 | 15A | IBU, SPORT MODE SW |
| MODULE2 | 10A | Engine Room Junction Block (RLY.2), Power Outside Mirror Switch, AMP, IBU, Audio/Video & Navigation Head Unit, IAU |
| AIR BAG1 | 15A | SRS Control Module, ODS(Occupant Detection Ssytem) |
| MODULE5 | 10A | Front Wireless Charger, Electro Chromic Mirror, Air Conditioner Controller, Air Conditioner Control Module, Audio/Video & Navigation Head Unit, Data Link Connector, AMP, Front Seat Warmer Control Module, Transmission Gear Shift Indicator |
| SAFETY P/ WINDOW PASS |
25A | Passenger Safety Power Window Module |
| AMP | 25A | AMP |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, Air Conditioner Controller |
| DOOR LOCK | 20A | Door Actuator Driver/Passenger/Rear Left/Rear Right |
| IAU | 10A | IAU, Driver/Passenger Door NFC Module |
| MODULE3 | 7.5A | Sport Mode Switch, Stop light Switch, Multifunction Switch, IAU |
| AIR BAG IND | 7.5A | Instrument Cluster, Overhead Console Lamp |
| WASHER | 15A | Multifunction Switch |
| WIPER | 10A | ECM (Engine Control Module), IBU |
| MODULE1 | 10A | Driver/Passenger Smart Key Outside Handle, Data Link Connector, Hazard Switch, Multifunction Switch |
| SUNROOF | 20A | Sunroof Unit |
| USB CHARGER | 15A | Front USB Charger, Console USB Charger |
| IG1 | 25A | PCB Block (Fuse – ECU 3/ABS 3/DCT 2) |

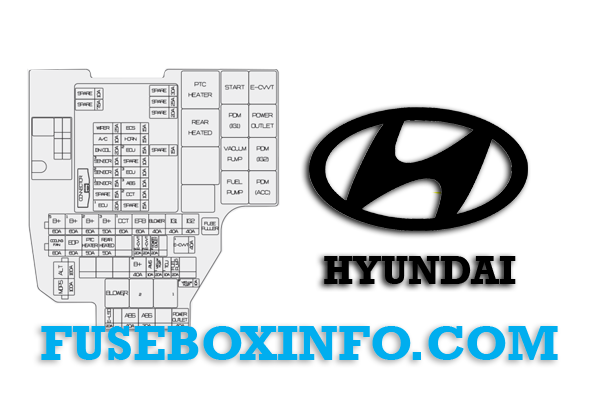

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT | 180A | Alternator, (Fuse – E-LSD, ABS 1, ABS 2, POWER OUTLET1) |
| MDPS1 | 100A | MDPS (Motor Driven Power Steering) Unit |
| COOLING FAN2 | 80A | Cooling Fan Controller |
| EOP | 60A | Electronic Oil Pump (PWR) |
| RR HTD | 50A | Rear Glass Heated |
| PTC | 50A | PTC HEATER |
| B+5 | 60A | PCB Block (Engine Control Relay, Fuse - WIPER, ECS, A/C, HORN, ECU 2) |
| B+1 | 60A | ICU Junction Block (IPS2/IPS5/IPS6/ IPS7/IPS14) |
| B+2 | 60A | ICU Junction Block (IPS1/IPS4/IPS8/ IPS9/IPS10) |
| B+3 | 50A | ICU Junction Block (Fuse - MEMORY1, TRUNK, S/HEATER FRT, MULTIMEDIA, P/WINDOW SAFETY DRV, P/WINDOW SAFETY PASS, AMP, Long Term Load Latch Relay), P/SEAT DRV, P/SEAT PASS |
| BLOWER | 40A | Engine Room Junction Block (RLY.13), Multipurpose Check Connector, Blower Motor |
| IG1 | 40A | Engine Room Junction Block (RLY.4/6) |
| IG2 | 40A | Engine Room Junction Block (RLY.3/5) |
| DCT1 | 60A | TCM (Transmission Control Module) |
| EPB | 60A | EPB UNIT |
| POWER OUTLET2 |
20A | Front Power Outlet |
| VACUUM PUMP1 |
20A | Engine Room Junction Block (RLY.7), Vacuum pum |
| VACUUM PUMP2 |
10A | ESC (Electronic Stability Control) Control Module |
| ECS | 15A | ECS Unit |
| E-LSD | 20A | LSD Control Module |
| E-CVVT3 | 20A | ECM (Engine Control Module) |
| E-CVVT2 | 20A | ECM (Engine Control Module) |
| E-CVVT1 | 40A | Engine Room Junction Block (RLY.1) |
| DCT2 | 10A | TCM (Transmission Control Module) |
| B+4 | 40A | ICU Junction Block (Fuse - AIR BAG 2, P/WINDOW LH, P/WINDOW RH, BRAKE SWITCH, IBU 1, DOOR LOCK, IAU, MODULE 1, SUNROOF, Power Window Relay) |
| AMS | 10A | Battery Sensor |
| TCU1 | 10A | [M/T] Ignition Lock & Clutch Switch |
| FUEL PUMP | 20A | FUEL PUMP Control Module |
| ABS1 | 40A | ESC (Electronic Stability Control) Control Module |
| ABS2 | 30A | ESC (Electronic Stability Control) Control Module, Multipurpose Check Connector |
| POWER OUTLET1 |
40A | POWER OUTLET FRT |
| WIPER | 25A | Wiper Motor |
| ECS (15A) | 15A | ECS Unit |
| A/C | 10A | ECV CLUTCH |
| HORN | 15A | Horn |
| IGN COIL | 20A | Ignition Coil #1~#4 |
| ECU3 | 10A | [M/T] Ignition Lock & Clutch Switch, ECM (Engine Control Module) |
| SENSOR3 | 10A | Engine Room Junction Block (RLY.8) |
| ECU2 | 15A | ECM (Engine Control Module) |
| SENSOR2 | 10A | Oil Control Valve, Electronic Water Pump, Canister Close Valve, Active Exhaust Valve, Cooling Fan Controller, Purge Control Solenoid Valve, RCV Control Solenoid Valve, PCB Block (A/C Relay), OIL LEVEL SENSOR |
| SENSOR1 | 15A | Oxygen Sensor (UP/DOWN) |
| ABS3 | 10A | ESC (Electronic Stability Control) Control Module, Multipurpose Check Connector |
| ECU1 | 20A | ECM (Engine Control Module) |
