Hyundai Santa Cruz 2024 Fuse Box Info

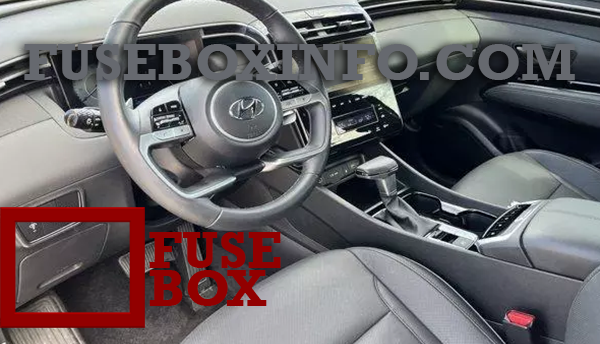

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| SUNROOF1 | 20A | Sunroof Glass Motor Controller |
| IBU1 | 7.5A | IBU |
| MODULE6 | 10A | Console Switch, Upper Console Switch, A/T Shift Lever Indicator |
| MODULE5 | 10A | AMP, A/C Control Switch, A/C Control Module, Electro Chromic Mirror, Data Link Connector, Audio, A/V & Navigation Head Unit, Front Wireless Charger, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
| CLUSTER | 7.5A | Instrument Cluster |
| IBU2 | 10A | IBU, Ignition Switch, IAU, BLE Unit |
| AIR BAG2 | 10A | SRS Control Module |
| A/C | 7.5A | A/C Control Module, A/C Control Switch, E/R Junction Block (PTC Heater Relay) |
| S/HEATER DRV/PASS |
20A | Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
| CARGO LP | 10A | High-mounted Stop Lamp, Side Mounted Bed Lamp LH/RH |
| A/BAG IND | 7.5A | Instrument Cluster, Overhead Console Lamp |
| TAILGATEOPEN | 10A | Tailgate Relay |
| WASHER | 15A | Multifunction Switch |
| SAFETY P/WINDOW RH |
25A | Passenger Safety Power Window Module |
| P/WINDOW LH | 25A | Power Window Main Switch |
| SAFETY P/WINDOW LH |
25A | Driver Safety Power Window Module |
| MODULE4 | 7.5A | Front View Camera, Crash Pad Switch, AWD ECM, ADAS Parking ECU |
| AIR BAG1 | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| MODULE9 | 10A | Hazard Switch, Key Solenoid, Crash Pad Switch, Data Link Connector, Rain Sensor, Driver/Passenger Smart Key Outside Handle, Sport Mode Switch, E/R Junction Block (E-CVVT Relay) |
| MODULE1 | 10A | IBU, IAU, Audio, A/V & Navigation Head Unit, Keyboard,Intergrated Parking Assist Unit |
| MODULE8 | 7.5A | Front Air Ventilation Seat Control Module, AC Inverter Module,Front Seat Warmer Control Module, AC Inverter Outlet |
| BED STORAGE | 10A | Bed Storage Relay |
| P/WINDOW RH | 25A | Power Window Main Switch, Passenger Power Window Switch |
| AMP | 25A | AMP |
| MEMORY | 10A | Instrument Cluster, Driver/Passenger Door Mood Lamp, Mood Lamp Unit, Crash Pad Mood Lamp, A/C Control Module, A/C Control Switch |
| MULTIMEDIA | 25A | Audio, A/V & Navigation Head Unit |
| DOOR LOCK | 20A | Center Door Lock Relay, Center Door Unlock Relay,Two Turn Unlock Relay |
| BRAKE SWITCH | 10A | Stop Lamp Switch, IBU |
| MODULE2 | 15A | Front USB Charger, Rear USB Charger |
| MODULE7 | 7.5A | IBU, IAU |
| MDPS | 7.5A | MDPS Unit |
| P/SEAT DRV | 30A | Driver Power Seat Switch, Driver Power Seat Module |
| MODULE3 | 7.5A | Stop Lamp Switch, IAU, Sport Mode Switch (DCT) |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | MDPS Unit |
| COOLING FAN1 | 80A | [G4KP] Cooling Fan Controller |
| COOLING FAN2 | 60A | [G4KP] Cooling Fan Controller |
| B+2 | 60A | ICU Junction Block (IPS7, IPS8, IPS9, IPS10, IPS11, IPS12) |
| B+3 | 60A | ICU Junction Block (Fuse - P/SEAT DRV, SAFETY P/WINDOW RH, S/HEATER DRV/PASS, SUNROOF1, BED STORAGE,Power Window Main Relay |
| E-CVVT1 | 50A | E/R Junction Block (E-CVVT Relay) |
| BLOWER | 40A | E/R Junction Block (Blower Relay) |
| EPB1 | 40A | ESC Module |
| REAR HEATED | 40A | E/R Junction Block (Rear Heated Relay) |
| TRAILER 1 | 30A | [G4KP] Trailer Connector |
| B+4 | 40A | ICU Junction Block (Fuse - DOOR LOCK, SAFETY P/WINDOW LH, TAILGATE OPEN, AMP, IBU2, AIR BAG2, CARGO LP,BRAKE SWITCH, MODULE9, Long Term Load Latch Relay) |
| EPB2 | 60A | ESC Module |
| FUEL PUMP | 20A | E/R Junction Block (Fuel Pump Relay) |
| 4WD | 20A | AWD ECM |
| TRAILER 2 | 30A | [G4KN] Trailer Controller |
| AMS | 10A | Battery Sensor |
| TRAILER 3 | 30A | [G4KN] Trailer Connector |
| ECU2 | 15A | PCM/ECM |
| VACUUM PUMP1 | 20A | [G4KP] E/R Junction Block (Vacuum Pump Relay) |
| TCU1 | 15A | [G4KN] PCM |
| ROOF LIGHT FRT | 15A | Accessory Light Switch |
| E-CVVT2 | 20A | [G4KP] ECM |
| HEATED MIRROR | 10A | E/R Junction Block (Rear Heated Relay), Driver/Passenger Power Outside Mirror |
| VACUUM PUMP2 | 10A | [G4KP] ESC Module |
| TCU3 | 60A | [G4KP] TCM |
| EOP | 60A | [G4KP] Electronic Oil Pump |
| B+1 | 50A | ICU Junction Block (IPS1, IPS3, IPS4, IPS5, IPS6) |
| PTC HEATER | 50A | E/R Junction Block (PTC Heater Relay) |
| INVERTER | 30A | AC Inverter Module |
| ACC1 | 50A | ACC Relay |
| MAIN | 30A | Main Relay |
| WIPER3 | 40A | Front Wiper1 On Relay |
| IG1 | 30A | IG1 Relay |
| IG2 | 30A | IG2 Relay, E/R Junction Block (Start Relay) |
| SENSOR1 | 20A | Ignition Coil #1/#2/#3/#4 |
| ACC2 | 20A | ICU Junction Block (Fuse - MODULE1, MODULE2) |
| SENSOR5 | 15A | Injector #1/#2/#3/#4 (MPI) |
| SENSOR4 | 10A | E/R Junction Block (Fuel Pump Relay) |
| SENSOR2 | 15A | Oxygen Sensor (Up), Oxygen Sensor (Down) |
| SENSOR3 | 10A | A/C Comp Relay, Oil Control Valve (Exhaust), Valiable Oil Pump Solenoid, Purge Control Solenoid Valve, Cooling Fan Controller, Canister Close Valve [G4KN] Variable Intake Solenoid Valve / [G4KP] RCV Control Solenoid Valve |
| POWER OUTLET | 20A | Front Power Outlet |
| A/C | 10A | A/C Comp Relay |
| HORN | 10A | Horn Relay |
| ECU1 | 20A | PCM/ECM |
| WIPER1 | 30A | Front Wiper2 (Low) Relay, Front Wiper Motor |
| WIPER2 | 7.5A | IBU |
| ECU3 | 10A | PCM/ECM |
| MODULE | 7.5A | [G4KP] E/R Junction Block (Vacuum Pump Relay) |
| FCA | 10A | Front Radar |
| EPB3 | 10A | ESC Module |
| TCU2 | 10A | [G4KP] TCM |
