Hyundai Kona EV 2025 Fuse Box Info

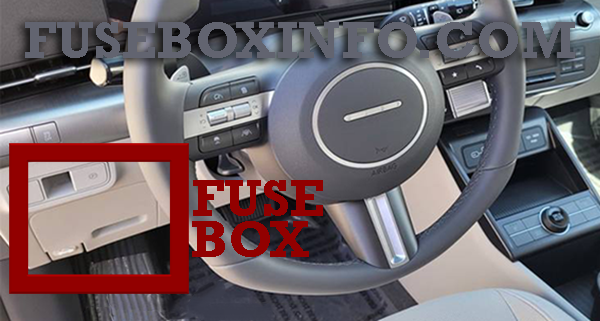

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

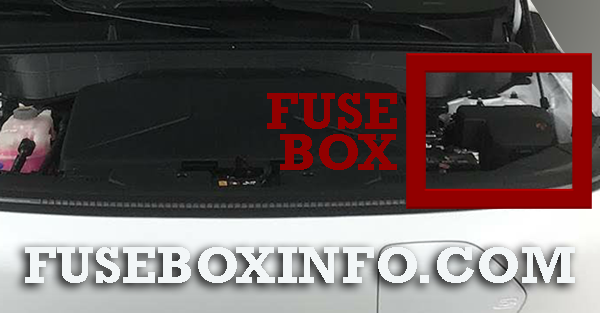

Engine compartment fuse box location:
Fuse Box Diagram | Layout

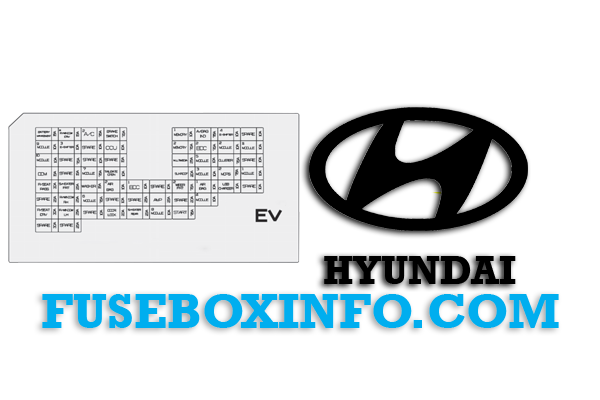

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| BATTERY MANAGEMENT |
15A | BMU |
| P/WINDOW DRV |
15A | Motor Room Junction Block (RLY. 8, RLY. 13) |
| A/C 2 | 7,5A | A/C Control Module |
| BRAKE SWITCH | 7.5A | BDC, Stop Lamp Switch |
| MEMORY 1 | 10A | ADAS Unit (Parking), Head-Up Display, Driver/Passenger Door Mood Lamp, Cluster Unit, Mood Lamp, Mood Lamp Unit, A/C Control Module |
| A/BAG IND | 7.5A | PAB OFF IND |
| E-SHIFTER 4 | 10A | SCU, Electronic ATM Shift Lever |
| MODULE 9 | 10A | Rain Sensor, Data Link Connector, Hazard Switch, BDC |
| E-SHIFTER 3 | 10A | SBW Lever |
| CCU | 10A | CCU |
| MEMORY 2 | 7.5A | DCU |
| BDC 2 | 7.5A | BDC |
| MODULE 2 | 10A | Stop Lamp Switch, CCU |
| MODULE 11 | 10A | CLUSTER, CCNC, A/CON, PTC, CONSOLE SW (SEAT HEAT, VENT SW) |
| MODULE 10 | 10A | - |
| MULTIMEDIA | 25A | CCNC Head Unit |
| MODULE 5 | 10A | Crash Pad Switch, Head Lamp LH/RH, AMP, CCNC Head Unit, Data Link Connector, Electro Chromic Mirror |
| CLUSTER | 7.5A | Cluster Unit, Head-Up Display |
| DDM | 15A | Driver Power Outside Mirror, Driver door Module |
| MODULE 7 | 7.5A | - |
| TAILGATE OPEN |
10A | PDC (Tailgate open Relay) |
| SUNROOF | 20A | Sunroof Blind Motor, Sunroof Glass Motor |
| MODULE 3 | 10A | Driver Door Module, Smart Phone Wireless Charger Unit, Passenger Airbag IND. & Seat Belt Reminder Lamp |
| MDPS 2 | 7.5A | MDPS Unit |
| MODULE 1 | 10A | ADAS Unit (Parking), Front Console Keyboard, BDC, DCU, CCU, AMP, CCNC Head Unit |
| P/SEAT PASS | 30A | Passenger Power Seat Switch, Passenger Relax Seat Control Module |
| S/HEATER FRT | 25A | Front Air Ventilation Control Module, Seat Heater Control Module |
| WASHER | 15A | Multifunction Switch |
| AIRBAG 2 | 10A | SRS Control Module |
| BDC 1 | 10A | BDC |
| WIPER FRT 2 | 7.5A | BDC, PCB Block (Wiper LOW Relay) |
| AIRBAG 1 | 10A | SRS Control Module, ODS |
| USB CHARGER | 10A | Front USB Charger Connector, Rear USB Charger Connector |
| P/WINDOW RH | 25A | Rear Power Window Switch RH, Passenger Safety Power Window Module, Passenger Power Window Switch |
| MODULE 6 | 7.5A | BDC |
| AMP | 25A | AMP |
| MODULE 4 | 10A | ADAS Unit (Parking), Rear Corner Radar LH/RH, Front View Camera, Crash Pad Switch, ADAS UNIT (DRV) |
| P/SEAT DRV | 30A | Driver Power Seat Switch |
| P/WINDOW LH | 25A | Rear Power Window Switch LH, Driver Safety Power Window Module |
| DOOR LOCK | 20A | PDC (Door Lock/Unlock Relay) |
| S/HEATER REAR |
25A | Seat Heater Control Module |
| MODULE 8 | 10A | Driver/Passenger Smart Key Outside Handle, VESS Unit |
| START | 7.5A | BDC, VCU |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS 1 | 80A | MDPS Unit |
| LDC | 180A | CHARGE DOOR LAMP |
| COOLING FAN |
80A | Cooling Fan Controller |
| B+2 | 50A | PDC (IPS9 (4CH), IPS11 (2CH), IPS12 (4CH)) |
| REAR HEATED |
50A | Motor Room Junction Block (RLY. 3) |
| B+5 | 50A | PDC (Fuse - F29, F36, F48, F56) |
| IG1 | 40A | PCB Block (ACC Relay, IG1 Relay) |
| IG2 | 40A | PCB Block (IG2 Relay) |
| EOP | 40A | Front Electronic Oil Pump |
| EWP 3 | 40A | Electronic Water Pump & Coolant Valve |
| B+1 | 60A | PDC (IPS3 (4CH), IPS7 (2CH), IPS4 (1CH), IPS2 (2CH), IPS6 (2CH), IPS5 (1CH)) |
| B+6 | 60A | PCB Block (IG3 Main Relay, Wiper Front Relay, Fuse - F19, F20, F21, F22, F23) |
| B+3 | 60A | PDC (Fuse - F1, F2, F9, F10, F17, F25, F26, F33, F34, F44, F51, F52) |
| IEB 1 | 60A | IEB |
| IEB 2 | 60A | IEB |
| BLOWER | 50A | Motor Room Junction Block (RLY. 4) |
| IEB 3 | 40A | Multipurpose Check Connector |
| E-SHIFTER 1 | 40A | SCU |
| IG3 1 | 40A | COOLANT HUB RLY (Motor Room Junction Block (RLY. 7)) |
| B+4 | 60A | PDC (Fuse - F4, F12, F28, F37, F54, F55, IPS13 (1CH), Long Term Load Latch Relay) |
| A/C 1 | 15A | A/C Control Module, BATT EXV, Heat Pump EXV, REF 3WAY VALVE, DEHUM EXV |
| CHARGER 2 | 10A | CHARGE LOCK/UNLOCK RLY (Motor Room Junction Block (RLY. 5, 10)) |
| CHARGER 1 | 15A | CDM |
| EWP 1 | 20A | EWP |
| E-SHIFTER 2 | 10A | SCU |
| AMS | 10A | 12 V Battery Sensor |
| HEAD LAMP LH |
15A | Head Lamp LH |
| HEAD LAMP RH |
15A | Head Lamp RH |
| HEATED MIRROR |
15A | Driver/Passenger Power Outside Mirror |
| CHARGE DOOR LAMP |
10A | CHARGE DOOR LAMP |
| POWER OUTLET |
20A | Power Outlet |
| WIPER FRT 1 | 30A | PCB Block (Wiper Front Low Relay), Front Wiper Motor |
| IG3 3 | 15A | VCU, INVERTER |
| IG3 4 | 15A | SCU |
| EWP 2 | 20A | EWP |
| IG3 8 | 20A | PDC (Fuse – F16) |
| WIPER RR | 15A | Motor Room Junction Block (RLY.11), Rear Wiper Motor |
| IG3 6 | 15A | 3 WAY VALVE, EOP |
| IG3 7 | 15A | VCMS, ICCU, CCU, CDM |
| IG3 2 | 10A | BMS |
| IG3 5 | 10A | E-COMP, COOLING FAN, Motor Room Junction Block (RLY.7) |
| IEB 4 | 10A | IEB, Multipurpose Check Connector |
| VCU 1 | 15A | VCU |
| INVERTER | 15A | INVERTER |
| OBC | 10A | VCMS, ICCU |
| HORN | 15A | PCB Block (Horn Relay) |
| FCA | 10A | Front Radar Unit |
| VCU 2 | 10A | VCU |
