Hyundai Kona EV 2023 Fuse Box Info

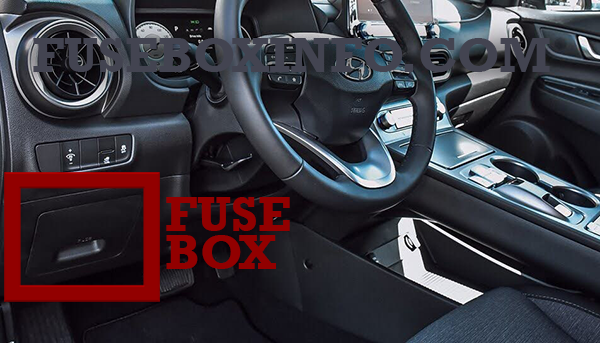

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

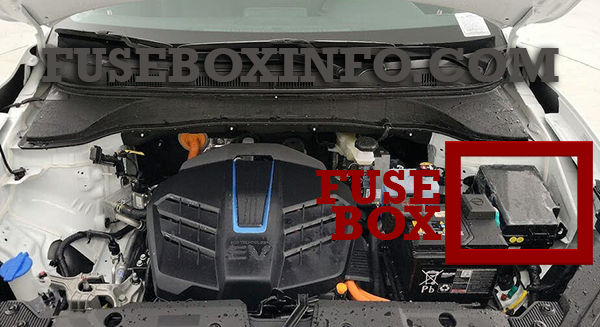

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MODULE 5 | 7.5A | Electro Chromic Mirror, Audio, A/V & Navigation Head Unit, Front Air Ventilation Seat Module, Front Seat Warmer Module, Data Link Connector, Rear Seat Warmer Control Module, Front Console Switch |
| MODULE 3 | 7.5A | Stop Lamp Switch, BCM, IAU |
| SUNROOF | 20A | Sunroof Unit |
| LIFTGATE OPEN | 10A | Tail Gate Relay |
| P/WINDOW LH |
25A | Power Window LH Relay, Driver Safety Power Window Module |
| MULTI MEDIA | 15A | Audio, A/V & Navigation Head Unit |
| P/WINDOW RH |
25A | Power Window RH Relay, Passenger Safety Power Window Module |
| P/SEAT (DRV) | 25A | Driver Seat Manual Switch, Driver Lumbar Support Switch |
| P/SEAT (PASS) |
25A | Not Used |
| MODULE 4 | 7.5A | BCM, Crash Pad Switch, Front View Camera, Vess Unit (Speaker) |
| PDM3 | 7.5A | Smart Key Control Module |
| SPARE | 20A | Spare |
| INTERIOR LAMP |
7.5A | Vanity Lamp LH/RH, Room Lamp, Foot Lamp LH/RH, Overhead Console Lamp, Luggage Lamp |
| MEMORY 2 | 7.5A | Vess Unit (Speaker), Electronic Refrigerant Reduced Pressure Valve, Rear Coner Radar LH/RH |
| B/ALARM HORN |
10A | Not Used |
| MEMORY 1 | 15A | A/C Control Module, Head Up Display, Instrument Cluster, BCM, Rain Sensor, Electro Chromic Mirror, Wireless Charger Unit |
| S/HEATER REAR |
20A | Rear Seat Warmer Control Module |
| AMP | 30A | AMP |
| MODULE 6 | 7.5A | Smart Key Control Module, BCM, IAU |
| MDPS | 7.5A | MDPS Unit |
| MODULE 1 | 7.5A | Active Air Flap, Hazard Switch, Data Link Connector |
| MODULE 7 | 7.5A | Front Air Ventilation Seat Module, Front Seat Warmer Module, Rear Seat Warmer Control Module |
| A/BAG IND | 7.5A | A/C Control Module |
| BRAKE SWITCH |
7.5A | Stop Lamp Switch, Smart Key Control Module |
| START | 7.5A | Smart Key Control Module, EPCU |
| CLUSTER | 7.5A | Head Up Display, Instrument Cluster |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay) |
| PDM 2 | 7.5A | Driver/Passenger Smart Key Outside Handle, BLE Unit, IAU |
| FCA | 10A | Front Radar Unit |
| S/HEATER FRT | 20A | Front Seat Warmer Module, Front Air Ventilation Seat Module |
| SPARE | 20A | Spare |
| A/C | 7.5A | A/C Control Module |
| PDM 1 | 15A | Smart Key Control Module, Start/Stop Button |
| AIR BAG | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| IG1 | 25A | PCB Block(Fuse - IEB 3, EPCU 2, E-SHIFTER 3) |
| MODULE2 | 10A | Rear USB Charger, Smart Key Control Module, BCM, Audio,A/V & Navigation Head Unit, Power Outlet #1, AMP, IAU, Power Outside Mirror Switch |
| WASHER | 15A | Muntifunction Switch |
| WIPER (LO/HI) |
10A | BCM |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| WIPER FRT | 25A | Front Wiper Motor, E/R Junction Block (Front Wiper(Low) Relay) |
| HEATED MIRROR |
10A | Driver/Passenger Power Outside Mirror, A/C Control Module |
| POWER OUTLET |
20A | Power Outlet #2 |
| SPARE | 15A | Spare |
| SPARE | 15A | Spare |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| LDC | 150A | E/R Junction Block (Fuse - IEB 1, IEB 2, CHARGER 1, HEATED STEERING), EPCU (LDC) |
| MDPS | 80A | MDPS Unit |
| B+5 | 60A | PCB Block ((Fuse - BATTERY MANAGEMENT 1, HORN, EPCU 1), IG3 MAIN Relay) |
| B+2 | 60A | IGPM ((Fuse - S/HEATER FRT), IPS0, IPS1, IPS2) |
| B+3 | 60A | IGPM (IPS3, IPS5, IPS6, IPS7) |
| B+4 | 50A | IGPM (Fuse - P/WINDOW LH, P/WINDOW RH, LIFTGATE OPEN, SUNROOF, AMP, P/SEAT (DRV), P/SEAT (PASS), S/HEATER REAR) |
| COOLING FAN |
60A | E/R Junction Block (Cooling Fan Relay) |
| REAR HEATED |
40A | E/R Junction Block (Rear Heated Relay) |
| IG1 | 40A | E/R Junction Block (PDM (IG1) 2 Relay, PDM (ACC) 1 Relay) |
| IG2 | 40A | E/R Junction Block (PDM (IG2) 3 Relay) |
| IEB 4 | 40A | Electronic Brake Control Module |
| BLOWER | 40A | E/R Junction Block (Blower Relay) |
| OBC | 10A | OBC |
| CHARGER 2 | 10A | ICM Relay Box (Charge Connector Lock/Unlock Relay), CCM Unit |
| IG3 2 | 20A | E/R Junction Block (IG3 1 Relay, IG3 2 Relay) |
| B+ 1 | 40A | IGPM ((Fuse - BRAKE SWITCH, MODULE 1, PDM 1, PDM 2, DOOR LOCK), Leak Current Autocut Device) |
| E-SHIFTER 1 | 40A | E/R Junction Block (Fuse - E-SHIFTER 2, E-Shifter Relay) |
| CHARGER 1 | 10A | Charge Connector Door Module |
| IEB 1 | 40A | Electronic Brake Control Module, Multipurpose Check Connector |
| IEB 2 | 40A | Electronic Brake Control Module |
