Hyundai Kona EV 2026 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout

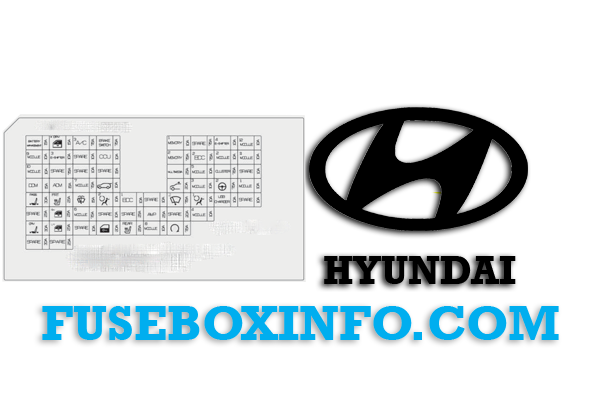

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| BATTERY MANAGEMENT |
15A | BMS Control Module |
| MODULE 9 | 10A | Rain Sensor, Data Link Connector, Hazard Switch, BDC |
| MODULE 10 | 10A | In Cabin Camera (ICC) Unit |
| DDM | 15A | Driver Power Outside Mirror, Driver door Module |
| P/SEAT PASS | 30A | Passenger Power Seat Switch, Passenger Relax Seat Control Module |
| P/SEAT DRV | 30A | Driver Power Seat Switch, Driver IMS Control Module |
| P/WINDOW DRV |
15A | Motor Room Junction Block |
| E-SHIFTER 3 | 10A | Electronic ATM Shift Lever |
| ADM | 15A | Passenger Power Outside Mirror |
| S/HEATER FRT |
25A | Front Air Ventilation Control Module, Front Seat Heater Control Module |
| P/WINDOW RH |
25A | Rear Power Window Switch for Right side For LHD: Passenger Safety Power Window Module, Passenger Power Window Switch For RHD: Driver Safety Power Window Module |
| P/WINDOW LH |
25A | Rear Power Window Switch for Left side For LHD: Driver Safety Power Window Module For RHD: Passenger Power Window Switch, Passenger Safety Power Window Module |
| A/C 3 | 7.5A | A/C Control Module |
| MODULE 7 | 7.5A | |
| WASHER | 15A | Multifunction Switch |
| MODULE 6 | 7.5A | BDC |
| BRAKE SWITCH |
7.5A | BDC, Stop Lamp Switch |
| CCU | 10A | CCU (Central Communication Unit) |
| TAILGATE OPEN |
10A | Tailgate Relay |
| AIR BAG 2 | 10A | SRS Control Module |
| DOOR LOCK | 20A | Door Lock/Unlock Relay, Dead Lock Relay |
| BDC 1 | 10A | BDC |
| S/HEATER RR |
25A | Rear Seat Heater Control Module |
| AMP | 25A | AMP |
| MODULE 8 | 10A | Driver IMS Control Module, Driver Power Seat Switch, Passenger Relax Seat Control Module, Passenger Power Seat Switch, Driver/Passenger Smart Key Outside Handle, VESS Unit, Power Tailgate Module |
| MEMORY 1 | 10A | ADAS Unit (Parking), ADP Controller, Head-Up Display, Driver/Passenger Door Mood Lamp, Cluster Unit, Mood Lamp, Mood Lamp Unit, A/C Control Module |
| MEMORY 2 | 7.5A | DCU |
| MULTIMEDIA | 25A | CCNC Head Unit |
| SUNROOF | 20A | Sunroof Blind Motor, Sunroof Glass Motor |
| WIPER FRT 2 | 7.5A | BDC, Wiper LOW Relay |
| START | 7.5A | BDC, VCU |
| BDC 2 | 7.5A | BDC |
| MODULE 5 | 10A | Crash Pad Switch, Headlight (Right, Left) |
| MODULE 3 | 10A | Driver Door Module, Smartphone Wireless Charging Unit, Passenger Airbag Indicator/Seat belt Reminder Lamp |
| AIR BAG 1 | 10A | SRS Control Module |
| MODULE 4 | 10A | Rear Corner Radar (Right, Left), ADAS Unit (Parking/Driving), Front Corner Radar (Right, Left), Front View Camera |
| E-SHIFTER 4 | 10A | SCU, Electronic ATM Shift Lever |
| MODULE 2 | 10A | CCU, Stop Lamp Switch |
| CLUSTER | 7.5A | Cluster Unit, Head-Up Display |
| MDPS 2 | 7.5A | MDPS Unit |
| USB CHARGER |
10A | Front USB Charger Connector, Rear USB Charger Connector |
| MODULE 12 | 10A | Passenger Relax Seat Control Module, Front Seat Heater Control Module, Rear Seat Heater Control Module, Front Air Ventilation Control Module |
| MODULE 11 | 10A | V2L Unit, Cluster Unit, CCNC Head Unit, A/C Control Module, A/C PTC Heater |
| MODULE 1 | 10A | Front Console Keyboard, CCNC Head Unit, BDC, DCU, CCU, AMP, ADP Controller, ADAS Unit (Parking) |

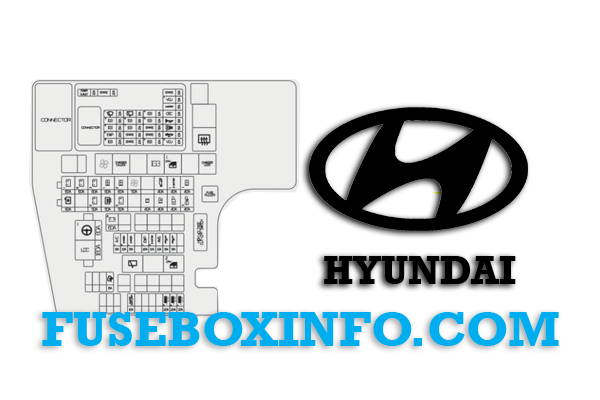

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS 1 | 80A | MDPS Unit |
| LDC | 180A | Motor Room Junction Block (FUSE - MODULE 3, WASHER, AIR BAG 2, BDC 1) |
| COOLING FAN |
80A | Cooling Fan Controller |
| B+2 | 50A | PDC |
| RR MIRR HTD |
50A | Motor Room Junction Block |
| B+5 | 50A | PDC (FUSE-SUNROOF, AIR BAG 2, WIPER FRT 2, SPARE, AMP, MODULE 8) |
| IG1 | 40A | PCB Block |
| IG2 | 40A | PCB Block |
| EOP | 40A | Front Electronic Oil Pump |
| EWP 3 | 40A | Electronic Water Pump & Coolant Valve |
| B+1 | 60A | PDC |
| B+6 | 60A | PCB Block (IG3 Main Relay, Wiper Front Relay, HEATED MIRROR) |
| B+3 | 60A | PDC (FUSE-BATTERY MANAGEMENT, P/WINDOW DRV, MODULE 9, E-SHIFTER 3, MODULE 10, DDM, ADM, P/SEAT PASS, S/HEATER FRT, P/WINDOW RH, P/SEAT DRV, P/WINDOW RH) |
| IEB 1 | 60A | IMEB Unit |
| IEB 2 | 60A | IMEB Unit |
| BLOWER | 50A | Motor Room Junction Block |
| POWER TAILGATE |
40A | Power Tailgate Module |
| E-SHIFTER 1 | 40A | SCU (Shift By Wire Control Unit) |
| IG3 1 | 40A | Motor Room Junction Block |
| B+4 | 60A | PDC (Fuse-BRAKE SWITCH, CCU, TAILGATE OPEN, BDC 1, DOOR LOCK, S/HEATER RR) |
| A/C 1 | 15A | A/C Control Module |
| CHARGER 2 | 10A | Motor Room Junction Block |
| CHARGER 1 | 15A | Charging Door Module |
| EWP 1 | 20A | Electronic Water Pump #1 (High Voltage Battery) |
| E-SHIFTER 2 | 10A | SCU |
| AMS | 10A | 12 V Battery Sensor |
| HEAD LAMP LH |
15A | Head Lamp LH |
| HEAD LAMP RH |
15A | Head Lamp RH |
| HEATED MIRROR |
15A | Driver/Passenger Power Outside Mirror |
| CHARGE DOOR LAMP |
10A | Charging Connector Lock/Unlock Actuator Lamp |
| TRAILER 3 | 20A | Trailer Connector |
| TRAILER 2 | 20A | Trailer Connector |
| TRAILER 1 | 30A | Trailer Connector |
| POWER OUTLET |
20A | Power Outlet |
| WIPER FRT 1 | 30A | PCB Block (Wiper Front Low Relay), Front Wiper Motor |
| IG3 3 | 15A | Inverter, VCU |
| IG3 4 | 15A | SCU |
| EWP 2 | 20A | Electronic Water Pump #1 (High Voltage Battery) |
| IG3 8 | 20A | PDC (MODULE 11, MODULE 12) |
| WIPER RR | 15A | Motor Room Junction Block, Rear Wiper Motor |
| IG3 6 | 15A | Front Electronic Oil Pump, BMS Coolant 3 Way Valve |
| IG3 7 | 15A | VCMS, ICCU, CCU, Charging Door Module |
| IG3 2 | 10A | BMU |
| IG3 5 | 10A | Cooling Fan Controller, Electronic A/C Compressor, Motor Room Junction Block |
| IEB 3 | 10A | IMEB Unit |
| VCU 1 | 15A | VCU |
| OBC | 10A | ICCU, VCMS |
| HORN | 15A | PCB Block (Horn Relay) |
| B/A HORN | 15A | PCB Block (B/Alarm Horn Relay) |
| FCA | 10A | Front Radar Unit |
| VCU 2 | 15A | VCA |
