Hyundai Kona 2024 Fuse Box Info

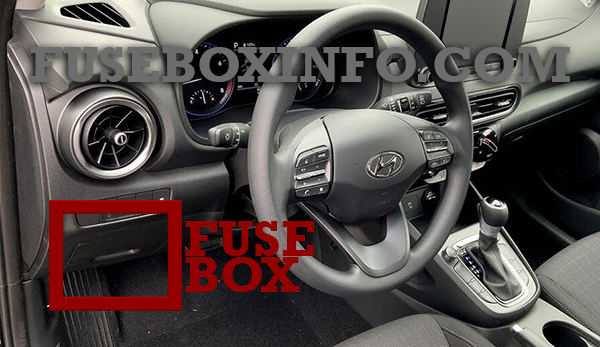

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

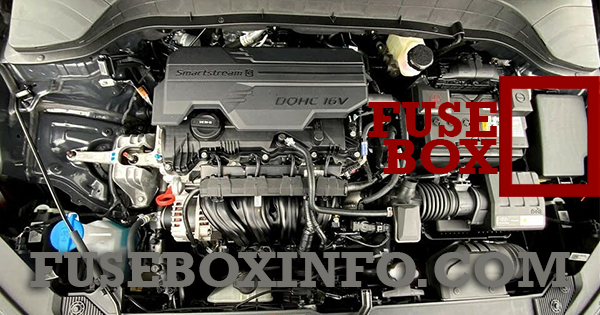

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MODULE9 | 10A | Rain Sensor, Data Link Connector, Hazard Switch, BDC |
| MODULE10 | 10A | In Cabin Camera (ICC) Unit |
| DDM | 15A | Driver door Module |
| P/SEAT DRV | 30A | Driver Power Seat Switch |
| P/WINDOW DRV |
15A | E/R Junction Block (Driver Power Window #1/#2 Relay) |
| E-SHIFTER2 | 10A | SCU, Electronic ATM Shift Lever |
| S/HEATER FRT | 25A | Front Air Ventilation Control Module, Seat Heater Control Module |
| P/WINDOW RH | 25A | Rear Power Window Switch RH, Passenger Power Window Switch, Passenger Safety Power Window Module |
| P/WINDOW LH | 25A | Rear Power Window Switch LH, Driver Safety Power Window Module |
| A/C3 | 7.5A | E/R Junction Block (PTC Heater 1/2 Relay), A/C Control Module, Duct Sensor |
| MODULE7 | 7.5A | 12 V Lithium Auxiliary Battery |
| WASHER | 15A | Multifunction Switch |
| MODULE6 | 7.5A | BDC |
| BRAKE SWITCH | 7.5A | BDC, Stop Lamp Switch |
| CCU | 10A | CCU |
| TAILGATE OPEN |
10A | PDC (Tailgate Relay) |
| AIR BAG2 | 10A | SRS Control Module |
| DOOR LOCK | 20A | PDC (Door Lock/Unlock Relay, Two Turn Unlock Relay) |
| BDC1 | 10A | BDC, ATM Shift Lever |
| S/HEATER REAR |
25A | Seat Heater Control Module |
| AMP | 25A | [With ISG] DC-DC Converter [W/O ISG] AMP |
| MODULE8 | 10A | Driver/Passenger Smart Key Outside Handle |
| MEMORY1 | 10A | ADAS Unit (Parking), Instrument Cluster, Cluster Unit, Mood Lamp, Mood Lamp Unit, DC-DC Converter, A/C Control Module, Driver/Passenger Door Mood Lamp |
| MEMORY2 | 7.5A | DCU |
| MULTIMEDIA | 25A | [With ISG] DC-DC Converter [W/O ISG] CCNC Head Unit |
| SUNROOF | 20A | Sunroof Blind Motor, Sunroof Glass Motor |
| WIPER FRT2 | 7.5A | BDC, PCB Block (Wiper LOW Relay) |
| START | 7.5A | [W/O SBW] Inhibitor Switch [With SBW] BDC, E/R Junction Block (Start Relay) |
| A/BAG IND | 7.5A | Overhead Console Keypad |
| BDC2 | 7.5A | BDC |
| MODULE5 | 10A | AMP, CCNC Head Unit, In Cabin Camera (ICC) Unit, DC-DC Converter, A/C Control Module, Data Link Connector, Electro Chromic Mirror, Overhead Console Keypad, Smart Phone Wireless Charger Unit, ATM Shift Lever IND., Driver/Passenger Console Switch |
| MODULE3 | 10A | Driver Door Module, Front Console Switch, Passenger Airbag IND. & Seat Belt Reminder Lamp |
| AIR BAG1 | 10A | SRS Control Module, Occupant Detection Sensor |
| MODULE4 | 10A | AWD ECM, ADAS Unit (Parking), Rear Corner Radar LH/RH, Front View Camera, Crash Pad Switch |
| E-SHIFTER3 | 10A | SRS Control Module, Occupant Detection Sensor |
| MODULE2 | 10A | CCU, Stop Lamp Switch |
| CLUSTER | 7.5A | Instrument Cluster, Cluster Unit |
| MDPS2 | 7.5A | MDPS Unit |
| USB CHARGER | 10A | Front USB Charger Connector, Rear USB Charger Connector |
| MODULE1 | 10A | ADAS Unit (Parking), Front Console Keyboard, BDC, DCU, CCU, DC-DC Converter, AMP, CCNC Head Unit |
| LDC | 10A | CCNC Head Unit, Smart Phone Wireless Charger Unit, USB Jack, A/C Control Module, ETCS Unit, Instrument Cluster, Cluster Unit, ADAS Unit (Parking), Rear Corner Radar LH/RH |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | MDPS Unit (Motor Driven Power Steering) is the same as EPS (Electric Power Steering) |
| ALT |
150A 180A |
Smartstream G 1.6 T-GDi : E/R Junction Block (Fuse - 4WD, PTC HEATER2) Smartstream G 2.0 Atkinson : E/R Junction Block (Fuse - 4WD, PTC HEATER2) |
| COOLING FAN1 |
80A | Smartstream G 1.6 T-GDi : Cooling Fan Controller |
| B+2 | 50A | PDC (IPS9 (4CH), IPS11 (2CH), IPS12 (4CH)) |
| REAR HEATED | 50A | E/R Junction Block (Rear Heated Relay) |
| B+5 | 50A | PDC (Fuse - AMP, MODULE8, AIRBAG2, SUNROOF) |
| COOLING FAN3 |
40A | Smartstream G 2.0 Atkinson : E/R Junction Block (Cooling Fan 1/2 Relay) |
| IG1 | 40A | PCB Block (ACC Relay, IG1 Relay) |
| IG2 | 40A | E/R Junction Block (Start Relay), PCB Block (IG2 Relay) |
| B+1 | 60A | PDC (IPS3 (4CH), IPS7 (2CH), IPS4 (1CH), IPS2 (2CH), IPS6 (2CH), IPS5 (1CH)) |
| B+6 | 60A | PCB Block (Main Relay, Wiper Front Relay, Fuse - TCU1, ECU5, ECU3, HORN, A/C) |
| B+3 | 60A | PDC (Fuse - MODULE9, P/SEAT DRV, S/HEATER FRT, DDM, E-SHIFTER2, MODULE10, P/WINDOW DRV, P/WINDOW LH/RH) |
| ABS1 | 60A | ESC Module |
| BLOWER | 50A | E/R Junction Block (Blower Relay) |
| ABS2 | 40A | ESC Module, Multipurpose Check Connector |
| E-SHIFTER1 | 40A | SCU (Shift By Wire Control Unit) |
| CVVD | 40A | CVVD Actuator |
| AUX BATT | 60A | 12 V Lithium Auxiliary Battery |
| B+4 | 60A | PDC (Fuse - F4, F12, F28, F37, F54, F55, IPS13 (1CH)) |
| PTC HEATER1 | 50A | E/R Junction Block (PTC Heater1 Relay) |
| EOP | 30A | Electronic Oil Pump |
| AMS | 10A | Battery Sensor |
| HEAD LAMP LH |
15A | Head Lamp LH |
| HEAD LAMP RH |
15A | Head Lamp RH |
| FUEL PUMP1 | 20A | E/R Junction Block (Fuel Pump Relay) |
| HEATED MIRROR |
15A | Driver/Passenger Power Outside Mirror, ECM |
| PTC HEATER2 | 50A | E/R Junction Block (PTC Heater2 Relay) |
| 4WD | 20A | AWD ECM |
| POWER OUTLET |
20A | Power Outlet |
| WIPER FRT1 | 30A | PCB Block (Wiper Front Low Relay), Front Wiper Motor |
| SENSOR3 | 15A | [Smartstream G 1.6 T-GDi] Cooling Fan Controller |
| ECU2 | 15A | ECM |
| ECU1 | 20A | ECM/PCM |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4 |
| WIPER RR | 15A | E/R Junction Block (Rear Wiper Relay), Rear Wiper Motor |
| SENSOR1 | 15A | Oxygen Sensor (Up/Down) |
| INJECTOR | 15A | [Smartstream G 2.0 Atkinson] Injector #1/#2/#3/#4 |
| TCU2 | 15A | [Smartstream G 1.6 T-GDi] TCM, [Smartstream G 2.0 Atkinson] Inhibitor Switch |
| ECU4 | 10A | Smartstream G 1.6 T-GDi] ECM, CVVD Actuator, [Smartstream G 2.0 Atkinson] PCM |
| FUEL PUMP2 | 10A | E/R Junction Block (Fuel Pump Relay) |
| SENSOR2 | 10A | [Smartstream G 1.6 T-GDi] PCB Block (A/C Relay), RCV Control Solenoid Valve, Purge Control Solenoid Valve, Variable Oil Pump Solenoid, Oil Control Valve #1/#2, Canister Close Valve, Oil Level Sensor [Smartstream G 2.0 Atkinson] PCB Block (A/C Relay), E/R Junction Block (Cooling Fan 1/2 Relay), Canister Close Valve, Oil Control Valve #1/#2, Oil Level Sensor, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Oil Pressure Solenoid Valve |
| SENSOR4 | 10A | Electric oil pump |
| ABS3 | 10A | ESC Module, Multipurpose Check Connector |
| A/C1 | 10A | PCB Block (A/C Relay) |
| ECU3 | 15A | ECM/PCM |
| TCU1 | 15A | [Smartstream G 1.6 T-GDi] TCM, [Smartstream G 2.0 Atkinson] PCM |
| ECU5 | 10A | [Smartstream G 1.6 T-GDi] ECM |
| HORN | 15A | PCB Block (Horn Relay) |
| FCA | 10A | Front Radar Unit |
