Hyundai Kona 2019 Fuse Box Info

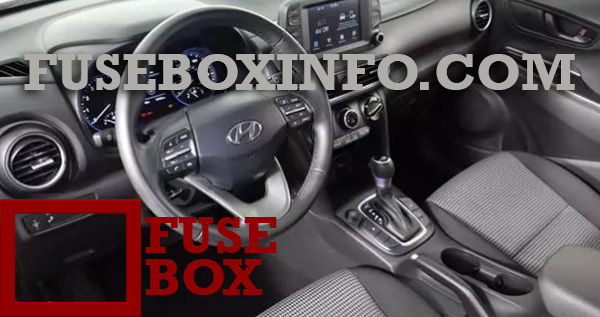

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

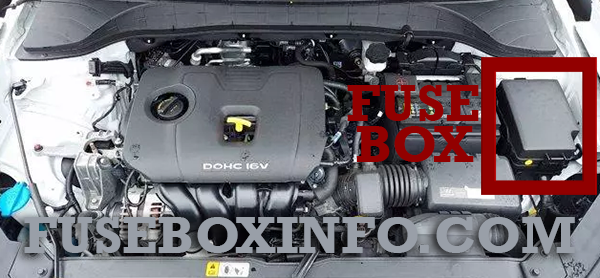

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MODULE 5 | 7.5A | ATM Shift Lever IND., Electro Chromic Mirror, AMP, A/V & Navigation Head Unit, A/C Control Module, Front Air Ventilation Seat Module, Front Seat Warmer Module |
| MODULE 3 | 7.5A | Stop Lamp Switch, BCM, ATM Shift Lever |
| SUNROOF | 20A | Sunroof Unit |
| TAIL GATE OPEN |
10A | Tail Gate Relay |
| P/WINDOW LH |
25A | Power Window LH Relay, Driver Safety Power Window Module |
| MULTI MEDIA | 15A | A/V & Navigation Head Unit |
| P/WINDOW RH |
25A | Power Window RH Relay, Passenger Safety Power Window Module |
| P/SEAT (DRV) | 25A | Driver Seat Manual Switch |
| P/SEAT (PASS) |
25A | Passenger Seat Manual Switch |
| MODULE 4 | 7.5A | Blind-Spot Collision Warning Unit LH/RH, Active Air Flap, BCM, Parking Distance Warning Buzzer, Lane Keeping Assist Unit (Line), 4WD ECM |
| PDM3 | 7.5A | Smart Key Control Module, Immobilizer Module |
| POWER OUTLET 2 |
20A | ICM Relay Box(Power Outlet Relay) |
| INTERIOR LAMP |
7.5A | Glove Box Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Wiresess Charger Unit, Driver Console Switch, Luggage Lamp |
| B/ALARM HORN |
10A | ICM Relay Box(Burglar Alarm Horn Relay) |
| MEMORY | 10A | A/C Control Module, Head Up Display, Instrument Cluster, Electro Chromic Mirror |
| AMP | 30A | AMP |
| MODULE 6 | 7.5A | Smart Key Control Module, BCM |
| MDPS | 7.5A | MDPS Unit |
| MODULE 1 | 7.5A | Active Air Flap, Ignition key Interlock Switch, BCM, Hazard Switch, Data Link Connector, Rain sensor |
| MODULE 7 | 7.5A | Front Air Ventilation Seat Module, Front Seat Warmer Module |
| A/BAG IND | 7.5A | Instrument Cluster, A/C Control Modulee |
| BRAKE SWITCH |
7.5A | Stop Lamp Switch, Smart Key Control Module |
| START | 7.5A | Transaxle Range Switch(A/T), ECM, ICM Relay Box(Burglar Alarm Relay) |
| CLUSTER | 7.5A | Head Up Display, Instrument Cluster |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, ICM Relay Box(Two Turn Unlock Relay) |
| PDM 2 | 7.5A | Start/Stop Button Switch, Immobilizer Module |
| FCA | 10A | Forward Collision Avoidance Assist Unit |
| S/HEATER | 20A | Front Seat Warmer Module, Front Air Ventilation Seat Module |
| A/C 2 | 20A | A/C Control Module, Blower Motor, Blower Resistor, E/R Junction Block (Blower Relay) |
| A/C 1 | 7.5A | A/C Control Module, E/R Junction Block(PTC Heater #2 Relay, Blower Relay, PTC Heater #1 Relay) |
| PDM 1 | 15A | Smart Key Control Module |
| AIR BAG | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| IG1 | 25A | PCB Block(FUSE : ABS 3, ECU 5, SENSOR 4, TCU 2) |
| MODULE2 | 10A | Wiresess Charger Unit, Smart Key Control Module, BCM, A/V & Navigation Head Unit, ICM Relay Box(Power Outlet Relay), Power Outside Mirror Switch, AMP |
| WASHER | 15A | Muntifunction Switch |
| WIPER (LO/HI) |
10A | BCM, PCB Block (Front Wiper (Low) Relay), Front Wiper Motor |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| WIPER FRT | 25A | Front Wiper Motor, PCB Block(Front Wiper(Low) Relay) |
| HEATED MIRROR |
10A | Driver/Passenger Power Outside Mirror, A/C Control Module, ECM |
| POWER OUTLET 1 |
20A | Cigarette Lighter |
| HEATED STEERING |
15A | BCM |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT | 150A | E/R Junction Block (Fuse - ABS 1, ABS 2, 4WD), Alternator |
| MDPS | 80A | MDPS Unit |
| B+5 | 60A | PCB Block ((Fuse - HORN, H/LAMP HI, A/C, ECU 4, ECU 3), Engine Control Relay) |
| B+2 | 60A | IGPM ((Fuse - S/HEATER), IPS0, IPS1, IPS2) |
| B+3 | 60A | IGPM (IPS3, IPS4, IPS5, IPS6, IPS7, IPS8) |
| B+4 | 50A | IGPM (Fuse - P/WINDOW LH, P/WINDOW RH, TAIL GATE OPEN, SUNROOF, B/ALARM HORN, POWER OUTLET 2, AMP, P/SEAT (PASS),P/SEAT (DRV)) |
| COOLING FAN |
60A/50A | E/R Junction Block (Cooling Fan #2 Relay, Cooling Fan #1 Relay) |
| REAR HEATED |
40A | E/R Junction Block (Rear Defogger Relay) |
| BLOWER | 40A | E/R Junction Block (Blower Relay) |
| IG1 | 40A | W/O Smark Key : Ignition Switch With Smark Key : E/R Junction Block (PDM #3 (IG1) Relay, PDM #2 (ACC) Relay) |
| IG2 | 40A | W/O Smark Key : Ignition Switch, E/R Junction Block (Srart #1 Relay) With Smark Key : E/R Junction Block (PDM #4 (IG2) Relay, Srart #1 Relay) |
| PTC HEATER 1 |
50A | E/R Junction Block (PTC Heater #1 Relay) |
| PTC HEATER 2 |
50A | E/R Junction Block (PTC Heater #2 Relay) |
| TCU 1 | 15A | TCM |
| VACUUM PUMP |
20A | Vacuum Pump |
| FUEL PUMP | 20A | E/R Junction Block (Fuel Pump Relay) |
| B+1 | 40A | IGPM ((Fuse - BRAKE SWITCH, PDM 1, DOOR LOCK, MODULE 1, PDM 2), Leak Current Autocut Device) |
| DCT1 | 40A | TCM |
| DCT2 | 40A | TCM |
| 4WD | 20A | 4WD ECM |
| ABS 1 | 40A | ESC Control Module, Multipurpose Check Connector |
| ABS 2 | 30A | ESC Control Module |
GAMMA 1.6L T-GDI:
| Fuse/Relay Name | Rating | Functions |
| SENSOR 2 | 10A | PCB Block (A/CON Relay), E/R Junction Block (Cooling Fan #1 Relay), Purge Control Solenoid Valve, RCV Control Solenoid Valve, Oil Control Valve #1~#2, Canister Close Valve |
| ECU 2 | 10A | ECM |
| ECU 1 | 20A | ECM |
| INJECTOR | 15A | - |
| SENSOR 1 | 15A | Oxygen Sensor (Up), Oxygen Sensor (Down) |
| IGN COIL | 20A | Ignition Coil #1~#4 |
| ECU 3 | 15A | ECM |
| A/C | 10A | PCB Block (A/CON Relay) |
| ECU 5 | 10A | ECM |
| SENSOR 4 | 15A | Vacuum Pump |
| ABS 3 | 10A | ESC Control Module, Multipurpose Check Connector |
| TCU 2 | 15A | TCM, Transaxle Range Switch |
| SENSOR 3 | 10A | E/R Junction Block (Fuel Pump Relay) |
| ECU 4 | 15A | ECM |
| H/LAMP HI | 10A | PCB Block (Head Lamp(High) Relay) |
| HORN | 15A | PCB Block (Horn Relay) |
NU 2.0L MPI:
| Fuse/Relay Name | Rating | Functions |
| SENSOR 2 | 10A | PCB Block (A/CON Relay), E/R Junction Block (Cooling Fan #2 Relay, Cooling Fan #1 Relay), Purge Control Solenoid Valve, Electronic Thermostat, Variable Intake Solenoid Valve, Oil Control Valve #1~#3, Canister Close Valve |
| ECU 2 | 10A | - |
| ECU 1 | 20A | PCM |
| INJECTOR | 15A | Injector #1~#4 |
| SENSOR 1 | 15A | Oxygen Sensor (Up), Oxygen Sensor (Down) |
| IGN COIL | 20A | Ignition Coil #1~#4 |
| ECU 3 | 15A | PCM |
| A/C | 10A | PCB Block (A/CON Relay) |
| ECU 5 | 10A | PCM |
| SENSOR 4 | 15A | - |
| ABS 3 | 10A | Multipurpose Check Connector, ESC Control Module |
| TCU 2 | 15A | Transaxle Range Switch |
| SENSOR 3 | 10A | E/R Junction Block (Fuel Pump Relay) |
| ECU 4 | 15A | PCM |
| H/LAMP HI | 10A | PCB Block (Head Lamp(High) Relay) |
| HORN | 15A | PCB Block (Horn Relay) |
