Hyundai Kona 2022 Fuse Box Info

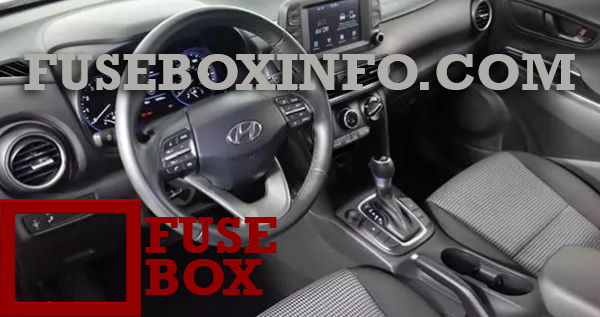

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

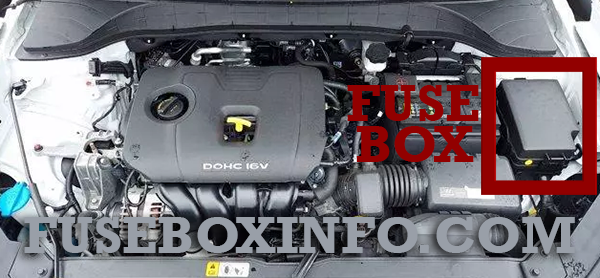

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MODULE 5 | 7.5A | ATM Shift Lever IND., A/V & Navigation Head Unit, Audio, Electro Chromic Mirror, A/C Control Module, Front Air Ventilation Control Module, Low DC-DC Converter Driver Console Switch, Wireless Charger Unit, Data Link Connector, Front/Rear Seat Warmer Control Module |
| MODULE 3 | 7.5A | Stop Lamp Switch, BCM, ATM Shift Lever, IAU |
| SUNROOF | 20A | Sunroof Unit |
| TAILGATE OPEN |
10A | TailGate Relay |
| P/WINDOW LH |
25A | Power Window LH Relay, Driver Safety Power Window Module |
| MULTI MEDIA | 15A | Low DC-DC Converter |
| P/WINDOW RH |
25A | Power Window RH Relay, Passenger Safety Power Window Module |
| P/SEAT (DRV) | 25A | Driver Seat Manual Switch, Driver Reclining Switch |
| MODULE 4 | 7.5A | EPB Switch, BCM, Front View Camera, AWD ECM |
| PDM3 | 7.5A | Smart Key Control Module, Immobilizer Module |
| POWER OUTLET 2 |
20A | ICM Relay Box(Power Outlet Relay) |
| INTERIOR LAMP |
7.5A | Glove Box Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Luggage Lamp, Foot Lamp LH/ RH |
| MEMORY | 10A | A/C Control Module, Head Up Display, BCM, Driver Console Switch, Wireless Charger Unit, Rain Sensor |
| S/HEATER REAR | 20A | Rear Seat Warmer Control Module |
| AMP | 30A | Low DC-DC Converter |
| MODULE 6 | 7.5A | Smart Key Control Module, BCM, IAU |
| MDPS | 7.5A | MDPS Unit |
| MODULE 1 | 7.5A | Key Interlock, BCM, Hazard Switch, Data Link Connector, Rain sensor |
| MODULE 7 | 7.5A | Front Air Ventilation Control Module, Front/Rear Seat Warmer Control Module |
| A/BAG IND | 7.5A | Instrument Cluster, A/C Control Modulee |
| BRAKE SWITCH |
7.5A | Stop Lamp Switch, Smart Key Control Module |
| START | 7.5A | Transaxle Range Switch(A/T), Inhibitor Switch |
| CLUSTER | 7.5A | Head Up Display, Instrument Cluster |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, ICM Relay Box(Two Turn Unlock Relay) |
| PDM 2 | 7.5A | Immobilizer Module, BLE Unit, IAU |
| FCA | 10A | Driver/Passenger Smart Key Outside Handle Front Radar Unit |
| S/HEATER FRT | 20A | Front Seat Warmer Control Module, Front Air Ventilation Control Module |
| A/C 1 | 7.5A | A/C Control Module, E/R Junction Block(PTC Heater #2 Relay, Blower Relay, PTC Heater #1 Relay) |
| PDM 1 | 15A | Smart Key Control Module, Start/Stop Button Switch |
| AIR BAG | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| IG1 | 25A | PCB Block(FUSE : ABS 3, ECU 5, SENSOR 4, TCU 2) |
| MODULE2 | 10A | Front USB Charger, Smart Key Control Module, BCM, ICM Relay Box(Power Outlet Relay), IAU |
| WASHER | 15A | Muntifunction Switch |
| WIPER (LO/HI) |
10A | BCM |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| WIPER FRT | 25A | Front Wiper Motor, PCB Block(Front Wiper(Low) Relay) |
| HEATED MIRROR |
10A | Driver/Passenger Power Outside Mirror, A/C Control Module, ECM |
| POWER OUTLET 1 |
20A | Power Outlet #2 |
| HEATED STEERING |
15A | BCM |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT | 180A(G4NS) 150A(G4FP) | E/R Junction Block (Fuse - ABS 2, REAR HEATED, EOP, CVVD, 4WD), Alternator |
| MDPS | 80A | MDPS Unit |
| B+5 | 60A | PCB Block ((Fuse - HORN, A/C, ECU 4, ECU 3), Engine Control Relay) |
| B+2 | 60A | IGPM ((Fuse - S/HEATER FRT), IPS0, IPS1, IPS2) |
| B+3 | 60A | IGPM (IPS3, IPS4, IPS5, IPS6, IPS7, IPS8) |
| B+4 | 50A | IGPM (Fuse - P/WINDOW LH, P/WINDOW RH, TAILGATE OPEN, SUNROOF, POWER OUTLET 2, S/HEATER REAR AMP, P/SEAT (PASS), P/SEAT (DRV)) |
| COOLING FAN |
50A | E/R Junction Block (Cooling Fan #1 Relay, Cooling Fan #2 Relay) |
| ABS1 | 40A(W/O EPB) 60A(With EPB) | ESC Module |
| BLOWER | 40A | E/R Junction Block (Blower Relay) |
| IG1 | 40A |
W/O Smart Key : Ignition Switch With Smart Key : E/R Junction Block (PDM #3 (IG1) Relay, PDM #2 (ACC) Relay) |
| IG2 | 40A |
W/O Smart Key : Ignition Switch, E/R Junction Block (Srart #1 Relay) With Smart Key : E/R Junction Block (PDM #4 (IG2) Relay, Srart #1 Relay) |
| COOLING FAN | 80A | Cooling Fan Controller |
| PTC HEATER 1 |
15A | E/R Junction Block (PTC Heater #1 Relay) |
| PTC HEATER 2 |
515A | E/R Junction Block (PTC Heater #2 Relay) |
| TCU 1 | 15A | TCM |
| FUEL PUMP | 20A | E/R Junction Block (Fuel Pump Relay) |
| DCT3 | 40A | SGA |
| B+1 | 40A | IGPM ((Fuse - BRAKE SWITCH, PDM 1, DOOR LOCK, MODULE 1, PDM 2), Leak Current Autocut Device) |
| DCT1 | 40A | TCM |
| DCT2 | 40A | TCM |
| 4WD | 20A | 4WD ECM |
| REAR HEATED | 40A | E/R Junction Block (Rear Defogger Relay) |
| ABS 1 | 40A | ESC Control Module, Multipurpose Check Connector |
| EOP(G4NS) CVVD(G4FP) | 40A |
G4NS : Electronic Oil Pump G4FP : CVVD Actuator |
Engine compartment fuse box (PCB Block - G4FP : G4FIII 1.6 T-GDI):
| Fuse/Relay Name | Rating | Functions |
| SENSOR 2 | 10A | PCB Block (A/C Comp Relay), Variable Oil Pump Solenoid, Purge Control Solenoid Valve, RCV Control Solenoid Valve, Oil Control Valve #1 (Intake), Oil Control Valve #2 (Exhaust), Canister Close Valve |
| ECU 2 | 10A | ECM |
| ECU 1 | 20A | ECM |
| INJECTOR | 15A | - |
| SENSOR 1 | 15A | Oxygen Sensor (Up), Oxygen Sensor (Down) |
| IGN COIL | 20A | Ignition Coil #1~#4 |
| ECU 3 | 15A | ECM |
| A/C | 10A | PCB Block (A/C Comp Relay) |
| ECU 5 | 10A | ECM, CVVD Actuator |
| SENSOR 4 | 15A | - |
| ABS 3 | 10A | ESC Control Module, Multipurpose Check Connector |
| TCU 2 | 15A | TCM, Transaxle Range Switch |
| SENSOR 3 | 10A | E/R Junction Block (Fuel Pump Relay) |
| ECU 4 | 15A | ECM |
| HORN | 15A | PCB Block (Horn Relay) |
Engine compartment fuse box (PCB Block - G4NS : G4NII 2.0L MPI ATKINSON):
| Fuse/Relay Name | Rating | Functions |
| SENSOR 2 | 10A | PCB Block (A/C Comp Relay), E/R Junction Block (Cooling Fan #2 Relay, Cooling Fan #1 Relay), Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Oil Control Valve #1 (Intake), Oil Control Valve #2 (Exhaust), Canister Close Valve, Oil Pressure Solenoid Valve |
| ECU 2 | 10A | - |
| ECU 1 | 20A | PCM |
| INJECTOR | 15A | Injector #1~#4 |
| SENSOR 1 | 15A | Oxygen Sensor (Up), Oxygen Sensor (Down) |
| IGN COIL | 20A | Ignition Coil #1~#4 |
| ECU 3 | 15A | PCM |
| A/C | 10A | PCB Block (A/C Comp Relay) |
| ECU 5 | 10A | PCM |
| SENSOR 4 | 15A | Electronic Oil Pump |
| ABS 3 | 10A | Multipurpose Check Connector, ESC Control Module |
| TCU 2 | 15A | Inhibitor Switch |
| SENSOR 3 | 10A | E/R Junction Block (Fuel Pump Relay) |
| ECU 4 | 15A | PCM |
| HORN | 15A | PCB Block (Horn Relay) |
