Hyundai Kona N 2022 Fuse Box Info

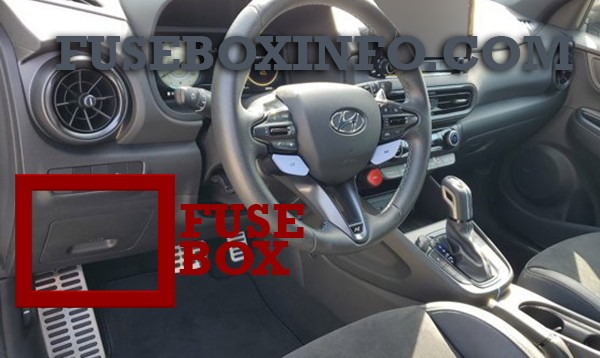

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

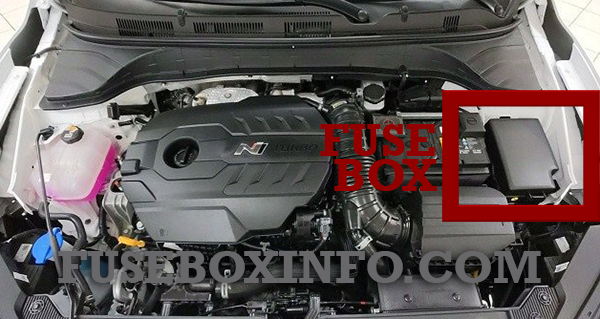

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MODULE 5 | 7.5A | Front Wireless Charger Unit, Front Air Ventilation Control Module, ATM Shift Lever IND., Driver Console Switch, Electro Chromic Mirror, A/V & Navigation Head Unit, Low DC-DC Converter, Data Link Connector, AMP, Crash Pad Switch, Head Lamp LH/RH, A/C Control Module, Front/Rear Seat Warmer Control Module |
| MODULE 3 | 7.5A | Stop Lamp Switch, BCM, ATM Shift Lever |
| SUNROOF | 20A | Sunroof Unit |
| TAILGATE OPEN |
10A | Tail Gate Relay |
| P/WINDOW LH |
25A | Power Window LH Relay, Driver Safety Window Module (LHD) |
| MULTI MEDIA | 15A | Low DC-DC Convertor, A/V & Navigation Head Unit |
| P/WINDOW RH |
25A | Power Window RH Relay, Driver Safety Window Module (RHD) |
| P/SEAT (DRV) | 25A | Driver Seat Manual Switch, Driver Reclining Switch |
| P/SEAT (PASS) |
25A | Passenger Seat Manual Switch |
| MODULE 4 | 7.5A | LSD Control Module, BCM, Front View Camera, ECS Unit, Steering Angle Sensor |
| PDM3 | 7.5A | Smart Key Control Module |
| INTERIOR LAMP |
7.5A | Foot Lamp LH/RH, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Glove Box Lamp, Luggage Lamp |
| MEMORY | 10A | A/C Control Module, Rain Sensor, Head Up Display, Instrument Cluster, Driver Console Switch, Rear Corner Radar LH/RH, BCM, Front Wireless Charger Unit, ICM Relay Box (Outside Folding/Unfoling Relay) |
| S/HEATER REAR |
20A | Rear Seat Warmer Control Module |
| AMP | 30A | Low DC-DC Convertor, AMP |
| MODULE 6 | 7.5A | Smart Key Control Module, BCM |
| MDPS | 7.5A | MDPS Unit |
| MODULE 1 | 7.5A | Hazard Switch, Data Link Connector |
| MODULE 7 | 7.5A | Electronic Sound Generator Unit, Front Air Ventilation Control Module, Front/Rear Seat Warmer Control Module |
| A/BAG IND | 7.5A | A/C Control Module |
| BRAKE SWITCH |
7.5A | Stop Lamp Switch, Smart Key Control Module |
| START | 7.5A | Smart Key Control Module, ECM |
| CLUSTER | 7.5A | Head Up Display, Instrument Cluster |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay) |
| PDM 2 | 7.5A | Not Used |
| FCA | 10A | Front Radar Unit |
| S/HEATER FRT | 20A | Front Seat Warmer Control Module, Front Air Ventilation Control Module |
| A/C2 | 10A | A/C Control Module, Blower Motor, E/R Junction Block (RLY. 10) |
| A/C1 | 7.5A | A/C Control Module, E/R Junction Block (RLY. 10) |
| PDM 1 | 15A | Smart Key Control Module, Start/Stop Button Switch |
| SPARE | 10A | Spare |
| AIRBAG | 15A | SRS Control Module |
| IG1 | 25A | PCB Block (Fuse : F10, F12, F14, F16) |
| MODULE2 | 10A | Emergency Call (E-Call) Module, Front USB Charger, Smart Key Control Module, BCM, A/V & Navigation Head Unit, Low DC-DC Convertor, AMP, Power Outside Mirror Switch, E/R Junction Block (RLY. 5) |
| WASHER | 15A | Muntifunction Switch |
| WIPER (LO/HI) |
10A | BCM |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| WIPER FRT | 25A | Front Wiper Motor, PCB Block(Front Wiper (Low) Relay) |
| HEATED MIRROR |
10A | Driver/Passenger Power Outside Mirror, A/C Control Module |
| HEATED STEERING |
15A | BCM |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALTERNATOR | 180A | E/R Junction Block (Fuse - F19, F20, F21, F22, F23, F24, F25), Alternator |
| MDPS | 100A | MDPS Unit |
| B+5 | 60A | PCB Block (Fuse - F1, F2, F3, Engine Control Relay) |
| B+2 | 60A | IGPM (Fuse - F30, IPS0, IPS1, IPS2) |
| B+3 | 60A | IGPM (IPS3, IPS4, IPS5, IPS6, IPS7) |
| B+4 | 50A | IGPM (Fuse - F3, F4, F5, F7, F8, F9, F15, F17, F18) |
| EOP | 60A | Electronic Oil Pump |
| DCT1 | 60A | TCM |
| BLOWER | 40A | E/R Junction Block (RLY.10) |
| IG1 | 40A | E/R Junction Block (RLY.3, RLY.8) |
| IG2 | 40A | E/R Junction Block (RLY.6) |
| VACUUM PUMP | 20A | Electronic Vacuum Pump |
| FUEL PUMP | 20A | E/R Junction Block (RLY.7) |
| B+1 | 40A | IGPM (Fuse - F21, F24, F27, F28, F33, Leak Current Autocut Device) |
| ECS | 20A | ECS Unit |
| E-LSD | 20A | LSD Control Module |
| ABS1 | 40A | ESP Control Module |
| ABS2 | 40A | ESP Control Module, Multipurpose Check Connector |
| E-CVVT1 | 40A | E/R Junction Block (RLY.14) |
| POWER OUTLET1 |
40A | E/R Junction Block (RLY.5) |
| COOLING FAN | 80A | Cooling Fan Controller |
| PTC HEATER1 | 50A | E/R Junction Block (RLY.11) |
| PTC HEATER2 | 50A | E/R Junction Block (RLY.13) |
| REAR HEATED | 40A | E/R Junction Block (RLY.12) |
| POWER OUTLET2 |
20A | Power Outlet #2 |
| POWER OUTLET3 |
20A | Power Outlet #1 |
| E-CVVT3 | 20A | ECM |
| E-CVVT2 | 20A | ECM |
| A/C | 10A | PCB Block (A/C Comp Relay) |
| HORN | 15A | PCB Block (Horn Relay) |
| ECU3 | 15A | ECM |
| SPARE | 10A | Not Used |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4 |
| SPARE | 15A | Not Used |
| SENSOR1 | 15A | Oxygen Sensor (Up/Down) |
| SENSOR3 | 10A | E/R Junction Block (RLY. 7) |
| SPARE | 15A | Not Used |
| DCT2 | 15A | TCM |
| ECU1 | 20A | ECM |
| ABS3 | 10A | Multipurpose Check Connector, ESP Control Module |
| EWP | 10A | Electric Water Pump |
| SENSOR4 | 15A | Electronic Vacuum Pump |
| SENSOR2 | 10A | Purge Control Solenoid Valve, Recirculation Control Solenoid Valve, Active Exhaust Valve, Oil Control Valve, Cooling Fan Controller, PCB Block (A/C Comp Relay) |
| ECU2 | 10A | ECM |
| Relay N° | Relay N° | Functions |
| RLY.3 | E63 | PDM #3 (IG1) Relay |
| RLY.4 | E64 | Srart #1 Relay |
| RLY.5 | E65 | Power Outlet Relay |
| RLY.6 | E66 | PDM #4 (IG2) Relay |
| RLY.7 | E67 | Fuel Pump Relay |
| RLY.8 | E68 | PDM #2 (ACC) Relay |
| RLY.10 | E70 | Blower Relay |
| RLY.11 | E71 | PTC Heater #1 Relay |
| RLY.12 | E72 | Rear Heated Relay |
| RLY.13 | E73 | PTC Heater #2 Relay |
| RLY.14 | E74 | E-CVVT Relay |
