Hyundai Santa Fe 2007 Fuse Box Info

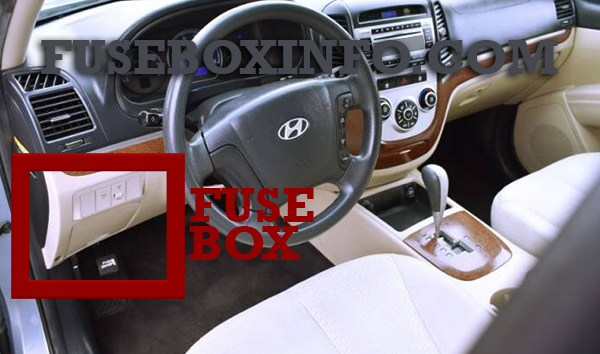

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

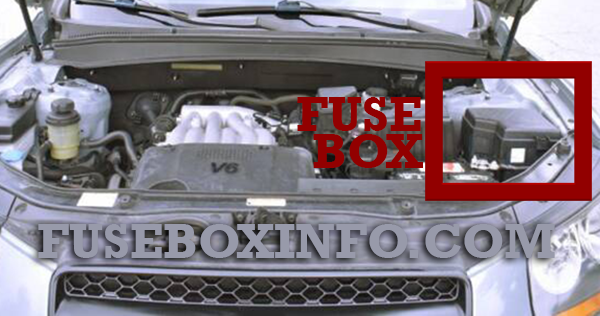

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| C/LIGHTER | 15A | CIGARETTE LIGHTER |
| P/OUTLET | 25A | FRONT POWER OUTLET, REAR POWER OUTLET |
| P/OUTLET CTR |
15A | CENTER POWER OUTLET |
| AUDIO #2 | 10A | POWER OUTSIDE MIRROR SWITCH, AUDIO, ATM KEY LOCK CONTROL MODULE, DIGITAL CLOCK |
| RR WIPER | 15A | MULTIFUNCTION SWITCH, REAR WIPER CONTROL MODULE,REAR WIPER MOTOR |
| IMS | 10A | RAIN SENSOR |
| BCM #2 | 10A | RHEOSTAT, BCM, INSTRUMENT CLUSTER |
| A/CON 2 | 10A | A/C CONTROL MODULE, INCAR & HUMIDITY SENSOR, HIGH BLOWER RELAY, REAR A/CON SWITCH, ICM RELAY BOX, AQS SENSOR, SUNROOF MOTOR, BLOWER BELAY, ELECTRO CHROMIC MIRROR |
| BLOWER | 30A | BLOWER RELAY, BLOWER MOTOR, A/C CONTROL MODULE |
| A/CON 1 | 10A | A/C CONTROL MODULE |
| A/BAG #1 | 15A | SRS CONTROL MODULE |
| A/BAG IND | 10A | PAB ON/OFF SWITCH, INSTRUMENT CLUSTER |
| T/SIG | 10A | HAZARD SWITCH |
| ATM LOCK | 10A | MULTIFUNTION SWITCH, STEERING ANGLE SENSOR, ESC SWITCH, ATM KEY LOCK CONTROL MODULE SEAT WARMER MODULE |
| BCM #1 | 10A | OIL LEVEL SENSOR MODULE, BCM |
| CLUSTER | 10A | INSTRUMENT CLUSTER, PRE-EXCITATION RESISTOR, BCM, GENERATOR, SEMI ACTIVE CONTROL MODULE (GASOLINE) |
| START | 10A | BURGLAR ALARM RELAY |
| P/AMP | 30A | DELPHI AMP |
| S/WARMER | 25A | SEAT WARMER CONTROL MODULE |
| P/SEAT | 30A | POWER SEAT SWITCH |
| RR A/CON | 15A | ICM RELAY BOX |
| RR FOG/BWS | 10A | ICM RELAY BOX |
| S/ROOF | 20A | SUNROOF MOTOR |
| MIRR HTD | 10A | REAR DEFOGGER SWITCH, POWER OUTSIDE MIRROR MOTOR |
| DR/LOCK | 20A | DOOR LOCK (UN) RELAY, ICM RELAY BOX |
| STOP LP | 15A | STOP LAMP SWITCH |
| FUEL LID | 15A | FUEL LID SWITCH |
| ATM | 10A | KEY SOLENOID, SPORTS MODE SWITCH, SEMIACTIVE SOLENOID (GASOLINE) INSTRUMENT CLUSTER, LUGGAGE LAMP, MAP LAMP, REAR PERSONAL LAMP |
| ROOM LP | 10A | ROOM LAMP, FRONT DOOR LAMP CARGO LAMP, VANITY LAMP SWITCH |
| BCM #3 | 10A | DOOR WARNING SWITCH, BCM, SECURITY INDICATOR |
| CLOCK | 15A | A/C CONTROL MODULE, DATA LINK CONNECTOR, DIGITAL CLOCK |
| AUDIO #1 | 15A | DELPHI AUDIO |
| HAZARD | 15A | HAZARD SWITCH, HAZARD RELAY |
| P/WDW LH | 30A | POWER WINDOW MAIN SWITCH, REAR POWER WINDOW SWITCH LH |
| P/WDW RH | 30A | POWER WINDOW MAIN SWITCH, REAR POWER WINDOW SWITCH RH |
| AC INVERTER 1 |
30A | AC INVERTER |
| AC INVERTER 2 |
10A | AC INVERTER |
| TPMS | 10A | TIRE PRESSURE MONITORING SYSTEM |
| A/BAG 2 | 15A | AIR BAG |
| T/SIG | 10A | TURN SIGNAL LIGHT |
| DRL | 20A | DAYTIME RUNNING LIGHT (IF INSTALLED) |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT | 150A | GENERATOR |
| A/CON | 10A | A/CON RELAY |
| RR HTD | 30A | RR HTD RELAY |
| BLR | 40A | I/PJUNCTION BOX |
| BATT | 50A | I/PJUNCTION BOX |
| P/WDW | 40A | I/PJUNCTION BOX |
| ESC #1 | 40A | ABS CONTROL MODULE, ESC CONTROL MODULE, MULTIPURPOSE CHECK CONNECTOR |
| ESC #2 | 20A | ABS CONTROL MODULE, ESC CONTROL MODULE, MULTIPURPOSE CHECK CONNECTOR |
| DEICER | 15A | DEICER RELAY |
| ECU MAIN | 40A | ENGINE CONTROL RELAY |
| HORN | 15A | HORN RELAY |
| IG COIL | 20A | IGNITION COIL #1~#6(GASOLINE), CONDENSOR(GASOLINE) |
| SENSOR #3 | 15A | PURGE CONTROL SOLENOID VALVE(GASOLINE), VARIABLE INTAKE MANIFOLD VALVE(GASOLINE), PCM(GASOLINE), OIL CONTROL VALVE(GASOLINE) |
| RAD FAN | 40A | RAD FAN RELAY |
| CON FAN | 30A | CON FAN #1 RELAY, CON FAN #2 RELAY |
| SENSOR #2 | 15A | MASS AIR FLOW SENSOR(GASOLINE), OXYGEN SENSOR #1~#4(GASOLINE), PCM(GASOLINE) |
| SENSOR #1 | 10A | IMMOBILIZER MODULE, INJECTOR #1~#6(GASOLINE), PCM(GASOLINE), A/CON RELAY, FUEL PUMP RELAY |
| FUEL PUMP | 15A | FUEL PUMP RELAY |
| H/LP LO LH | 15A | H/LP LO LH RELAY |
| H/LP LO RH | 15A | H/LP LO RH RELAY |
| FR FOG | 10A | FR FOG RELAY |
| H/LP | 10A | I/P JUNCTION BOX |
| FR WIPER | 25A | FR WIPER RELAY, RAIN SNSR RELAY, FRONT WIPER MOTOR, MULTIFUNCTION SWITCH |
| H/LP HI | 20A | H/LP HI RELAY |
| H/LP HI IND | 10A | HEAD LAMP, INSTRUMENT CLUSTER |
| IGN #1 | 40A | IGNITION SWITCH |
| IGN #2 | 40A | IGNITION SWITCH, START RELAY |
| BATT | 50A | I/P JUNCTION BOX |
| ATM | 20A | ATM RELAY(GASOLINE), AWD ECM |
| TCU | 15A | PCM(GASOLINE) |
| ALT DSL | 10A | GENERATOR |
| ECU | 10A | VEHICLE SPEED SENSOR, PCM(GASOLINE), SEMI ACTIVE CONTROL MODULE(GASOLINE) |
| COOLING | 10A | CON FAN #1 RELAY, CON FAN #2 RELAY |
| B/UP UP | 10A | INPUT SPEED SENSOR, OUTPUT SPEED SENSOR, TRANSAXLE RANGE SWITCH, BACK-UP LAMP SWITCH |
| ESC | 10A | ABS CONTROL MODULE, ESC CONTROL MODULE, YAW RATE SENSOR, AWD ECM, STOP LAMP SWITCH(GASOLINE), MULTIPURPOSE CHECK CONNECTOR |
| TAIL LH | 10A | REAR COMBINATION LAMP LH, POSITION LAMP LH |
| TAIL RH | 10A | REAR COMBINATION LAMP RH, POSITION LAMP RH GLOVE BOX CAMP, ICM RELAY BOX |
| SPARE | 10A | - |
| SPARE | 15A | - |
| SPARE | 20A | - |
| SPARE | 25A | - |
| SPARE | 30A | - |
