Hyundai Veracruz 2012 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

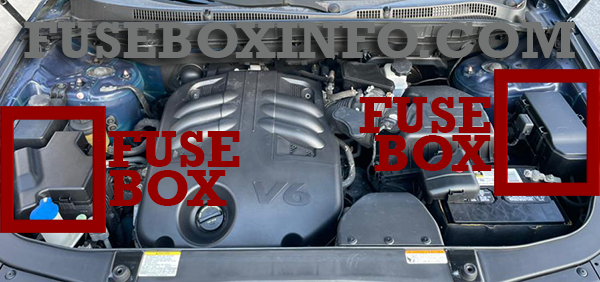

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| AUDIO-2 | 10A | Audio, Console & rear power outlet relay, Digital clock, BCM, PIC immobilizer module, ATM key lock control module, RSE module |
| C/LIGHTER | 20A | Front cigarette lighter & Power outlet |
| A/BAG 2 | 10A | Driver seat belt buckle switch, Weight classification module, Telltale lamp |
| A/BAG 1 | 15A | SRS control module |
| A/BAG IND | 10A | Instrument cluster (Air bag indicator lamp) |
| B/UP LP | 10A | Back-up lamp relay, TCM, Electro chromic mirror, Back warning control module, Rear combi lamp LH/RH |
| CRUISE | 10A | Multifunction switch (Cruise remocon switch), PIC immobilizer module, Driver/Passenger seat warmer switch |
| ATM CONT | 10A | ATM key lock control module, AWD ECM, BCM, Multifunction switch, Semi active engine mounting control module |
| CLUSTER | 10A | Instrument cluster, Generator, BCM, Semi active engine mounting control module, PIC immobilizer module, Tire pressure monitoring module |
| START | 10A | Burglar alarm relay, Power tailgate control module |
| EPS | 10A | BCM, Rheostat, Power window main switch, Front power window switch RH, AC inverter module |
| A/CON | 10A | Front/Rear A/C control module, Blower relay, Rear A/C relay, Rain sensor, Sunroof control module, Electro chromic mirror |
| FR S/HTD | 15A | Driver/Passenger Seat warmer switch |
| RR S/HTD | 15A | - |
| IMS | 10A | IMS control module, Tilt & Telescopic module, AC inverter switch, Power tailgate control module |
| H/LP, AQS | 10A | AQS sensor |
| FR/WASHER | 15A | Front wiper relay, Front washer relay |
| RR/WIPER | 15A | Rear wiper control module, Rear wiper motor |
| TAIL LH | 10A | Head lamp LH, Rear combi lamp LH, Front fog lamp relay, Tailgate handle switch & license lamp |
| TAIL RH | 10A | Head lamp RH, Rear combi lamp RH, Glove box lamp, Illuminations, Tailgate handle switch & license lamp, Trailer lamp connector |
| DR LOCK | 20A | Power window main switch, Power tailgate relay, Tailgate lock actuator relay |
| STOP LP | 15A | Stop lamp switch |
| ADJ-PEDAL | 15A | Adjustable pedal relay |
| H/LP WASHER | 20A | - |
| FUEL LID | 15A | Fuel filler lid switch |
| RR FOG | 15A | - |
| FR WIPER | 30A | Front wiper motor |
| TILT & TELE | 15A | Tilt & Telescopic module |
| DRL | 15A | DRL relay |
| P/WDW LH | 25A | Driver safety window ECM, Rear power window switch LH |
| P/WDW RH | 25A | Front/Rear power window switch RH |
| MIRR HTD | 10A | Power outside mirror motor & defogger LH/RH, Front A/C control module (Defogger switch) |
| P/SEAT | 30A | IMS control module, Driver/Passenger seat manual switch, Front lumbar support switch |
| KEY SOL | 10A | AWD ECM, Back warning buzzer, PIC mechanical steering column lock, Key solenoid, Weight classification module, Rear initiator LH/RH |
| DEICER | 15A | Windshield defogger relay |
| S/ROOF | 15A | Sunroof control module |
| RSE, SMART KEY | 10A | PIC immobilizer module, RSE module |
| AUDIO 1 (MEMORY FUSE) | 15A | Audio, USA set top box |
| ROOM LP (MEMORY FUSE) | 15A | Instrument cluster, Power window main switch, Door lamp, Room lamp, Data link connector, BCM, Door warning switch, IMS control module, Front/Rear A/C control module, Foot lamp, Map lamp, Electro chromic mirror |
Engine compartment fuse box (Main fuse box):
| Fuse/Relay Name | Rating | Functions |
| IGN 1 | 40A | Ignition switch(ACC, IG1) |
| IGN 2 | 40A | Start relay, Ignition switch(IG2, START) |
| I/P B+1 | 50A | Fuse(DR LOCK 20A, STOP LP 15A, TAIL LH/RH 10A, ADJ-PEDAL 15A) |
| I/P B+2 | 50A | Fuse(P/SEAT 30A, KEY SOL 10A, S/ROOF 15A, RSE/SMART KEY 10A, DEICER 15A), Memory fuse (AUDIO1 15A, ROOM LP 15A) |
| P/WDW | 40A | Fuse(P/WDW LH/RH 25A) |
| BLOWER | 40A | Blower relay |
| RR HTD | 40A | Rear defogger relay, Fuse(MIRR HTD 10A) |
| ECU | 30A | Engine control relay, Fuse(IGN COIL 20A, ECU2 10A, SNSR1 15A, SNSR2 15A, SNSR3 10A) |
| ABS 1 | 40A | ABS/ESC control module, Multipurpose check connector |
| ABS 2 | 40A | ABS/ESC control module, Multipurpose check connector |
| TCU 1 | 15A | TCM |
| TPMS | 10A | Tire pressure monitoring module, Semi active engine mounting solenoid, Front initiator LH/RH |
| B/ALARM | 10A | - |
| F/PUMP | 20A | Fuel pump relay |
| T/SIG | 15A | BCM (Hazard lamp), Head lamp (High/Low) relay |
| A/CON | 10A | A/C relay |
| ECU 1 | 10A | ECM |
| ECU DSL, IGN COIL | 20A | Ignition coil #1~#6, Condenser |
| SNSR 1 | 15A | ECM, Mass air flow sensor, Oil control valve, Immobilizer module, PCSV, VIV, CCV |
| SNSR 2 | 15A | Fuel pump relay, Oxygen sensor #1~#4 |
| SNSR 3 | 10A | Injector #1~#6, Condenser fan relay, Radiator fan relay, A/C relay |
| ECU 2 | 10A | ECM |
| H/LP LO RH | 15A | Head lamp(Low) relay RH |
| H/LP LO LH | 15A | Head lamp(Low) relay LH |
| H/LP HI | 20A | Head lamp(High) relay |
| FR FOG | 15A | Front fog lamp relay |
| HORN | 15A | Horn relay |
| ABS | 10A | ABS/ESC control module, ESC switch |
| DIAG | 10A | Multipurpose check connector |
| ECU 3 | 10A | ECM |
| TCU 2/GLOW | 10A | TCM, Stop lamp switch |
Engine compartment fuse box (Sub fuse box):
| Fuse/Relay Name | Rating | Functions |
| I/P BOX B+3 | 40A | Fuse( RR FOG 15A, FUEL LID 15A, FR WIPER 30A, TILT & TELE 15A) |
| C/FAN | 40A | Condenser fan relay #1 |
| R/FAN | 40A | Radiator fan relay |
| P T/GATE | 30A | Power tail gate control module |
| RR BLOWER | 20A | Rear A/C relay |
| AMP | 30A | JBL amp |
| P/OUTLET | 30A | Console & rear power outlet relay |
| AC INVERTER | 30A | AC inverter (110V) |
| TRAILER | 30A | Trailer |
