Hyundai Palisade 2020 Fuse Box Info

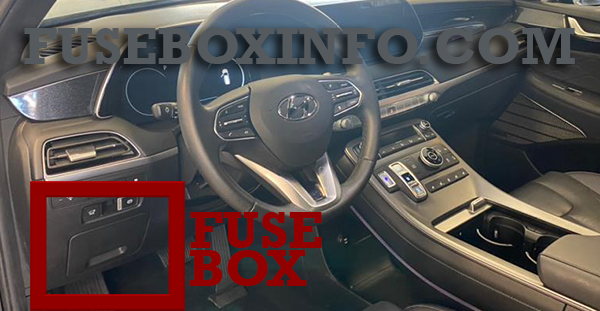

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

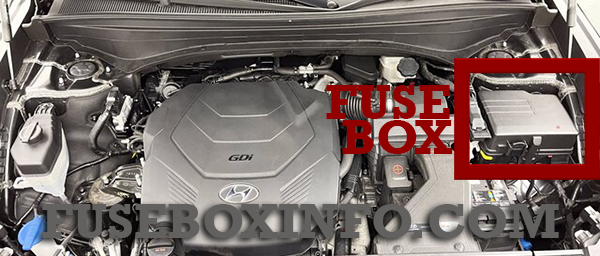

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MODULE 4 | 7.5A | Data Link Connector, Stop Lamp Switch, Driver Door Module |
| AIR BAG 1 | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| BRAKE SWITCH | 7.5A | IBU, Stop Lamp Switch |
| MODULE 9 | 15A | Front A/C Control Module, Low DC-DC Converter (Audio), Power Tail Gate Unit, Driver IMS Control Module, Head-up Display, Driver Door Module, Driver/Passenger Power Outside Mirror, Security Indicator, Rain Sensor, Rear Occupant Alert (ROA) Sensor, 3RD Seat Folding Control Module |
| MODULE 10 | 10A | Blind-Spot Collision Warning Unit LH/RH, Front Console Switch, Rear A/C Control Module, Electro Chromic Mirror, Data Link Connector, Front Wireless Charger |
| AIR BAG IND | 10A | Seat Belt Indicator, Instrument Cluster |
| IBU 1 | 7.5A | IBU |
| MODULE 2 | 7.5A | 1ST Seat Warmer Control Module, 1ST Air Ventilation Seat Control Module, 2ND Air Ventilation Seat LH/RH Control Module, 2ND Seat LH/RH Warmer Control Module, 3RD Seat Folding Control Module, AC Inverter Outlet, Inverter Unit, Surround View Monitor Unit |
| MODULE 8 | 7.5A | Driver/Passenger Smart Key Outside Handle, Driver/Passenger Outside Mirror, Key Solenoid, Center Fascia Keyboard (Hazard Switch) |
| S/HEATER FRT | 20A | 1ST Air Ventilation Control Module, 1ST Seat Warmer Control Module |
| AIR BAG 2 | 15A | SRS Control Module |
| E-SHIFTER 2 | 10A | Electronic ATM Shift Lever Switch (SBW), SCU |
| MODULE 5 | 7.5A | Crash Pad Switch, IBU, Smart Cruise Control Radar, 4WD ECM, Front Console Switch, Lane Keeping Assist Unit (Line) |
| IBU 2 | 15A | IBU, Ignition Switch |
| SUNROOF 2 | 20A | Panoramic Sunroof |
| MODULE 1 | 7.5A | IBU |
| P/SEAT (3rd) | 20A | 3RD Seat Folding Control Module |
| P/WINDOW RH | 25A | Passenger Safety Power Window Module, Rear Power Window Switch RH |
| RR SEAT (LH) | 25A | 2ND Air Ventilation Seat LH Control Module, 2ND Seat LH Warmer, Control Module, 2ND Seat LH Reclining Folding Actuator |
| CLUSTER | 7.5A | Instrument Cluster, Head Up Display |
| MDPS | 10A | MDPS Unit |
| A/C | 7.5A | E/R Junction Block (Blower FRT Relay, Blower RR Relay, PTC Heater 1/2 Relay), Front A/C Control Module |
| CHILD LOCK | 15A | ICM Relay Box (Child Lock/Unlock Relay) |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, Tailgate Relay, Two Turn Unlock Relay |
| SUNROOF 1 | 20A | Sunroof |
| E-SHIFTER 1 | 10A | Electronic ATM Shift Lever Switch (SBW), SCU, E/R Junction Block (FUSE -E-SHIFTER 2) |
| P/WINDOW LH | 25A | Driver Safety Power Window Module, Rear Power Window Switch LH |
| MODULE 3 | 7.5A | IBU |
| MODULE 6 | 7.5A | Audio, A/V & Navigation Head Unit, Low DC-DC Converter (Audio/AMP), Front/Rear A/C Control Module Driver IMS Control Module, Electro Chromic Mirror, Center Facia Keyboard, 1ST Air Ventilation Seat Control Module, 1ST Seat Warmer Control Module, 2ND Air Ventilation Seat LH/RH Control Module, 2ND Seat LH/RH Warmer Control Module, 3RD Seat Folding Control Module |
| WASHER | 15A | Multifunction Switch |
| RR SEAT (RH) | 25A | 2ND Air Ventilation Seat Control Module, 2ND Seat RH Warmer Control Module, 2ND Seat RH Reclining Folding Actuator |
| WIPER (REAR) | 15A | Rear Wiper Relay, Rear Wiper Motor |
| AMP | 25A | AMP, Low DC-DC Converter (AMP) |
| ACC | 7.5A | IBU, Low DC-DC Converter (Audio/AMP) |
| P/SEAT (PASS) | 30A | Passenger Seat Manual Switch |
| P/SEAT (DRV) | 30A | Driver IMS Control Module, Driver Seat Manual Switch |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | MDPS Unit |
| COOLING FAN 1 | 80A | Cooling Fan Relay (600W) |
| EPB | 60A | ESC Module |
| B+4 | 50A | ICU Junction Block (Fuse - MODULE 8, S/HEATER FRT, P/WINDOW RH, AMP, SUNROOF) |
| B+3 | 50A | ICU Junction Block (Fuse - P/WINDOW LH, RR SEAT (LH), P/SEAT (DRV), P/SEAT (PASS)) |
| B+2 | 50A | ICU Junction Block (IPS 8/IPS 10/IPS 11/IPS 12/IPS 13/IPS 14/IPS 15) |
| REAR HEATED | 40A | Rear Heated Relay |
| ESC 1 | 40A | ESC Module |
| BLOWER | 40A | Blower Relay |
| ESC 2 | 40A | ESC Module |
| PTC HEATER 1 | 50A | PTC Heater 1 Relay |
| PTC HEATER 2 | 50A | PTC Heater 2 Relay |
| B+1 | 50A | ICU Junction Block (IPS 1/IPS 2/IPS 3/IPS 5/IPS 6/IPS 7, Long/Short Term Load Latch Relay) |
| B+5 | 50A | ICU Junction Block (Fuse - DOOR LOCK, IBU 1, IBU 2, BRAKE SWITCH, CHILD LOCK, RR SEAT (RH), SUNROOF 2) |
| INVERTER | 30A | AC Inverter Unit |
| POWER LIFTGATE | 30A | Power Tailgate Module |
| TRAILER 1 | 40A | Trailer Lamp |
| IG2 | 40A | Start Relay, ICU Junction Block (Fuse - A/C, WASHER, WIPER (REAR), MODULE 1, MODULE 2, REAR A/C) |
| OIL PUMP | 40A | Electronic Oil Pump Module |
| COOLING FAN 2 | 50A | Cooling Fan Relay |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, A/C Control Module |
| A/C 2 | 10A | A/C Control Module |
| WIPER FRT 2 | 10A | Wiper (LO) Relay, Front Wiper Motor |
| ECU 6 | 15A | PCM |
| AMS | 10A | Battery Sensor |
| E-SHIFTER 1 | 20A | Electronic Transmission |
| 4WD | 20A | AWD ECM |
| E-SHIFTER2 | 10A | Electronic Transmission |
| BLOWER 2 | 10A | A/C Control Module |
| BLOWER 1 | 40A | Rear Blower Relay |
| TCU 1 | 15A | Transmission Range Switch |
| SENSOR 6 | 15A | Glow Relay Unit |
| ECU 3 | 10A | ESC Module |
| ICU | 10A | ICU Junction Block |
| SENSOR 5 | 10A | Oxygen Sensor Up #1/#2 |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4/#5/#6 |
| SENSOR 1 | 10A | Fuel Pump Relay |
| A/C 1 | 10A | [2.4 GDI] A/CON Relay |
| WIPER FRT 1 | 30A | Wiper Main Relay |
| TCU 2 | 10A | TCM, SBW Controller |
| ECU 3 | 20A | PCM |
| B/ALARM HORN | 15A | Burglar Alarm Horn Relay |
| HORN | 15A | Horn Relay |
| FUEL PUMP | 20A | Fuel Pump Relay |
| ECU 1 | 20A | PCM |
| SENSOR 2 | 10A | A/C Comp Relay, Variable Intake Solenoid Valve, Oil Pump Solenoid Valve, Oxygen Sensor Down, Oil Control Valve, Electronic Thermostat Heater, Purge Control Solenoid Valve |
| ECU 2 | 20A | PCM |
| POWER OUTLET 1 | 20A | Rear Power Outlet 1 |
| POWER OUTLET 2 | 20A | Rear Power Outlet 2 |
| ACC 3 | 10A | ICU Junction Block (Fuse - ACC) |
| ECU 4 | 10A | PCM |
| IG 1 | 40A | PDM (IG1) Relay |
| ACC 1 | 40A | ACC 1 Relay |
| ACC 2 | 40A | ACC 2 Relay |
| ECU 5 | 30A | Main Relay |
| POWER OUTLET 3 | 20A | Luggage Power Outlet |
| POWER OUTLET 4 | 20A | Front Power Outlet |
| SENSOR 4 | 15A | Ignition Coil #1/#2/#3/#4/#5/#6, Cooling Fan Controller |
