Hyundai Palisade 2026 Fuse Box Info

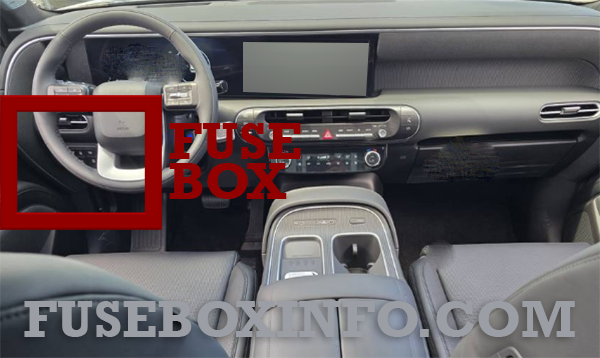

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

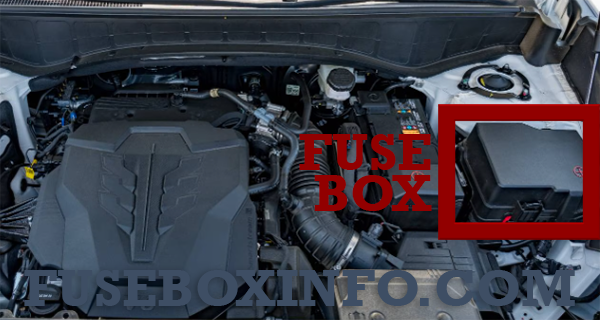

Engine compartment fuse box location:

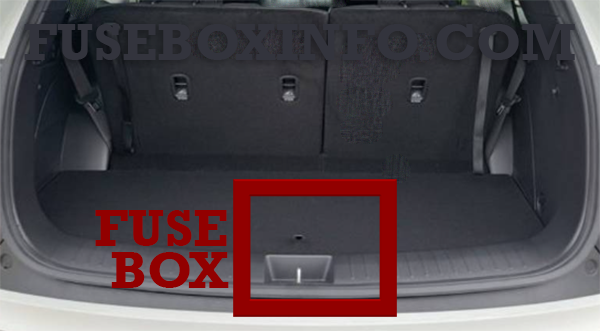

Luggage compartment fuse box location (If equipped):
Fuse Box Diagram | Layout

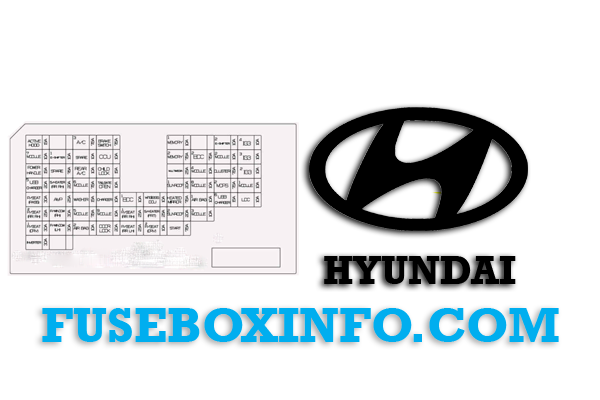

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| A/C 3 | 7.5A | Front A/C Control Panel, Front A/C Control Module, Incar Temperature Sensor, E/R Junction Block (PTC HEATER1/2 RELAY) |
| BRAKE SWITCH | 7.5A | BDC, Stop Lamp Switch |
| MEMORY 1 | 10A | Rear A/C Control Module, Driver/Passenger Door Mood Lamp, Smart Ambient Light Control Unit (Mood Lamp), Rear Door Mood Lamp LH/RH, BDC |
| E-SHIFTER 2 | 10A | Electronic Atm Shift Lever & Start/Stop Button |
| MODULE 7 | 10A | Hazard Switch, ICC Unit, Rain Sensor, Multifunction Switch, Data Link Connector, 3RD Power Seat Module, Driver/Passenger Power Outside Mirror, Driver Power Window Module, Driver/Passenger Power Seat Module,2ND Power Seat Module LH/RH, Rear Junction Block (Rear Blower Relay), Crash Pad Switch, Driver/Passenger Door Outside Handle, Power Tailgate Unit, 2ND & 3RD Seat Reclining Switch (Luggage) |
| E-SHIFTER 1 | 10A | Electronic Atm Shift Lever & Start/Stop Button |
| SPARE (IG2) | 10A | Standby Power (IG2) |
| CCU | 10A | CCU |
| MEMORY 2 | 7.5A | Head-Up Display, Front A/C Control Panel, Front A/C Control Module |
| BDC 2 | 7.5A | BDC |
| MODULE 2 | 10A | CCU, DCU, Stop Lamp Switch |
| SPARE (B+) | 7.5A | Standby Power (B+) |
| REAR A/C | 10A | Rear A/C Control Module |
| CHILD LOCK | 15A | Child Lock/Unlock Relay |
| MULTIMEDIA | 25A | Low DC-DC Converter |
| MODULE 4 | 10A | Floor Console UVC Switch, AMP, Smart Phone Wireless Charger Unit, USB Connector Assembly, Driver Power Seat Module, 3RD Seat Switch LH/RH, 2ND Power Seat Module LH/RH, 3RD Power Seat Module, 2ND Seat LH/RH Switch Unit, ICC Unit, Overhead Console Lamp, Electro Chromic Mirror, Data Link Connector, CCNC Head Unit, Front A/C Control Panel, Trailer Control Module, Low DC-DC Converter, Built-In Cam Unit |
| CLUSTER | 7.5A | Cluster Unit, Head-Up Display |
| USB CHARGER 5 | 20A | USB Connector Assembly |
| S/HEATER RR RH |
20A | 2ND Warmer/Air Ventilation Control Module |
| MODULE 6 | 7.5A | Head Lamp LH/RH, AC Inverter Outlet, Inverter Unit, 12V Lithium Auxiliary Battery |
| TAILGATE OPEN |
10A | Tailgate Open Relay, Passenger Occupant Detection Sensor |
| SUNROOF 1 | 20A | Front Sunroof Control Module |
| MODULE 8 | 10A | Multifunction Switch, Driver Power Window Module, 2ND Seat Belt Buckle Switch LH/RH/Center |
| MDPS 2 | 7.5A | MDPS Unit |
| MODULE 1 | 10A | BDC, CCU, DCU, ADAS Unit (Parking), Built-In Cam Unit, Low DC-DC Converter |
| P/SEAT PASS | 30A | Passenger Power Seat Module, Passenger Relay Unit, Passenger Power Seat Switch |
| AMP | 25A | [400W] Low DC-DC Converter |
| WASHER | 15A | Multifunction Switch |
| wireless DCU | 10A | DCU |
| BDC 1 | 10A | Front/Rear UWB Unit LH/RH, UWB Unit (Master/Slave), Driver/ Passenger Door Outside Handle, BDC |
| HEATED MIRROR |
7.5A | Driver/Passenger Power Outside Mirror |
| AIR BAG 1 | 10A | SRS Control Module, Passenger Occupant Detection Sensor |
| USB CHARGER 6 |
15A | USB Connector Assembly |
| LDC | 10A | CCNC Head Unit, LOW DC-DC Converter, REAR Corner Radar LH/RH, REAR A/C Control Module, Cluster Unit, ADAS Unit(Parking), CCNC Keyboard, FRONT A/C Control Pannel, HEAD-UP Display |
| P/SEAT RR RH 2 |
25A | 2ND Seat RH Walk In Communication Switch (Cushion/Reclining), 2ND Power Seat Module RH |
| P/WINDOW RH | 30A | Passenger Safety Power Window Module, [With Safety] Rear Safety Power Window Module RH, [W/O Safety] Rear Power Window Switch RH |
| MODULE 5 | 7.5A | BDC |
| P/SEAT RR RH 1 | 25A | [With Power Seat] 2ND Power Seat Module RH, [8P] 2ND Seat Rh Walk In & Folding Switch, 2ND Seat RH Walk In Communication Switch (Cushion/Reclining) [With 2nd Folding & Walk In - 8P] 2ND Seat RH Walk In & Folding Switch |
| S/HEATER FRT | 25A | 1ST Seat Warmer/Air Ventilation Seat Control Module |
| SUNROOF 2 | 20A | Rear Sunroof Control Module |
| MODULE 3 | 10A | AWD ECM, Front View Camera, ADAS Unit (Driving), ADAS Unit (Parking), Front/Rear Corner Radar LH/RH, Front Radar, Center Fascia Switch (Driver), Crash Pad Switch, Rear Corner Radar LH/RH |
| P/SEAT DRV 1 | 30A | Driver Power Seat Module, Driver Power Seat Switch |
| P/WINDOW LH | 30A | Driver Safety Power Window Module, [With Safety] Rear Safety Power Window Module LH, [W/O Safety] Rear Power Window Switch LH |
| AIR BAG 2 | 10A | SRS Control Module |
| DOOR LOCK | 20A | Door Lock/Unlock Relay, Two Turn Unlock Relay |
| P/SEAT RR LH | 25A | [With Power Seat] 2ND Power Seat Module LH, [8P] 2ND Seat Rh Walk In & Folding Switch, 2ND Seat LH Walk In Communication Switch (Cushion/Reclining) [With 2nd Folding & Walk In - 8P] 2ND Seat LH Walk In & Folding Switch |
| P/SEAT DRV 2 | 10A | Driver Lumbar Support Unit |
| START | 7.5A | BDC, ECM |
| INVERTER | 30A | Inverter Unit |

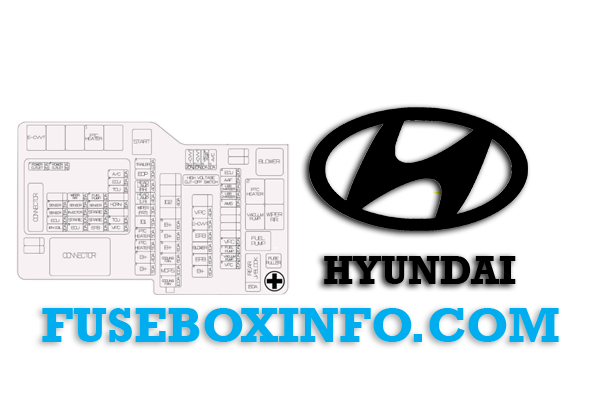

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| IG2 | 40A | PCB Block (IG2 Relay), E/R Junction Block (Start Relay) |
| B+6 | 60A | PCB Block (Main Relay, Wiper Relay, Fuse - A/C1, Horn, B/ALARM Horn, TCU1) |
| B+3 | 60A | PDC (Fuse - USB Charger5, P/SEAT PASS, P/SEAT DRV1, P/WINDOW LH/RH, AMP, SPARE (B+), Inverter, Module7, S/HEATER RR RH, E-SHIFTER1,P/SEAT RR RH 2) |
| B+5 | 60A | PDC (Fuse - S/HEATER FRT,Wireless DCU, AIR BAG2, P/SEAT DRV2, Sunroof2, Sunroof1) |
| MDPS 1 | 100A | MDPS Unit |
| COOLING FAN |
100A | Cooling Fan Controller |
| REAR J/ BLOCK |
150A | Rear Junction Block (S/B Fuse - REAR HEATED, Aux Batt, Power Tailgate, REAR Blower, 3rd S/HEATER, Trailer2/3/4, 3rd Row Seat Foldig, P/SEAT RR LH 2, Fuse - AWD, USB Charger3/4, Combi Lamp LH/RH, E-LSD |
| ECU4 | 20A | ECM |
| ACTIVE AIR FLAP |
15A | Active Air Flap (Upper, Lower LH/RH) |
| USB CHARGER 2 |
15A | Passenger USB Charger Connector |
| USB CHARGER 1 |
15A | Driver USB Charger Connector |
| AMS 1 | 10A | Battery Sensor |
| VPC 4 | 20A | VPC |
| FUEL PUMP 1 | 20A | E/R Junction Block (Fuel Pump1 Realy) |
| VACUUM PUMP 1 |
20A | E/R Junction Block (RLY.4) |
| VPC 2 | 20A | VPC |
| VPC 1 | 40A | VPC |
| EPB 2 | 60A | ESP Control Module |
| BLOWER | 60A | E/R Junction Block (Blower Realy) |
| EPB 1 | 60A | ESP Control Module |
| B+4 | 60A | PDC (Fuse - BDC1, CCU, Barke Switch, P/SEAT RR LH, P/SEAT RR RH1, Door Lock, Tailgate Open, IPS13, Long Term Load Latch Relay (Fuse - Multi Media, Memory1/2)) |
| TRAILER1 | 20A | Electronic Brake Controller |
| EOP | 30A | Electronic Oil Pump |
| HEAD LAMP (RH) |
40A | Head Lamp RH |
| HEAD LAMP (LH) |
40A | Head Lamp LH |
| WIPER (FRT) | 30A | Front Wiper Motor |
| IG1 | 50A | PCB Block (IG1 Relay, ACC Relay) |
| PTC HEATER 2 |
50A | E/R Junction Block (Ptc Heater2 Relay) |
| PTC HEATER 1 |
50A | E/R Junction Block (Ptc Heater1 Relay) |
| B+2 | 40A | PDC (IPS11, IPS12) |
| B+1 | 50A | PDC (IPS1,IPS4, IPS5, IPS6, IPS7) |
| POWER OUTLET 1 |
20A | 2ND & 3RD Seat Reclining Switch (Luggage) |
| POWER OUTLET 2 |
20A | 1ST Power Outlet |
| A/C 1 | 10A | A/C Relay |
| TCU 1 | 15A | TCM |
| WIPER RR | 15A | Rear Wiper Motor, E/R Junction Block (Wiper Rr Relay) |
| FUER PUMP 2 |
10A | E/R Junction Block (Fuel Pump Relay) |
| SENSOR 3 | 15A | Canister Close Valve, Oil Level Sensor |
| SENSOR 1 | 15A | Oxygen Sensor (UP/Down) |
| SENSOR 2 | 10A | Purge Control Solenoid Valve, Oil Control Valve #2/#4 (Exhaust), Oil Control Valve #1/#3 (Intake)), Variable Oil Pump Solenoid Valve, Variable Intake Solenoid Valve, Cooling Fan Controller |
| HORN | 15A | Horn Relay |
| INJECTOR | 15A | Injector #1/#2/#3/#4/#5/#6 |
| B/ALARM HORN |
15A | B/Alarm Horn Relay |
| ECU 1 | 20A | ECM |
| TCU 2 | 10A | TCM, Electronic Oil Pump |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4/#5/#6 |
| ECU 3 | 10A | ECM |
| EPB 3 | 10A | ESP Control Module |
| VPC 3 | 10A | VPC |

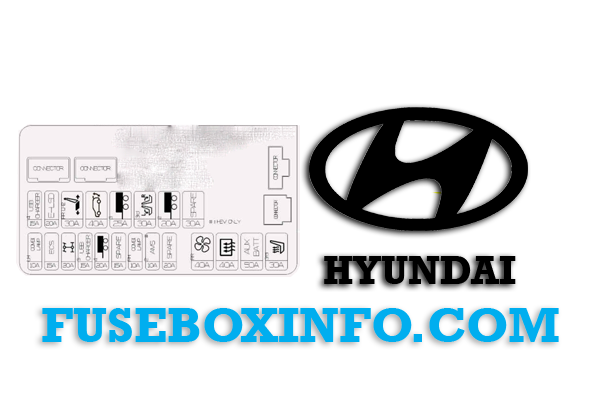

Luggage compartment fuse box location (If equipped):
| Fuse/Relay Name | Rating | Functions |
| USB CHARGER 4 | 15A | Luggage USB Charger Connector RH |
| COMBI LAMP LH | 30A | Rear Combination Lamp (OUT) LH |
| AWD | 40A | AWD ECM |
| USB CHARGER 3 | 30A | Luggage USB Charger Connector LH |
| COMBI LAMP RH | 10A | Rear Combination Lamp (OUT) RH |
| P/SEAT RR LH 2 | 30A | 2ND Power Seat Module LH [7P] 2ND Seat LH Walk In Communication Switch (Cushion/Reclining) |
| POWER TAILGATE | 15A | Power Tailgate Unit |
| E-LSD | 20A | E-LSD Control Module |
| TRAILER2 | 20A | Trailer Connector, [With Mobis Trailer] Trailer Custom Module |
| TRAILER3 | 25A | Trailer Control Module, [With Mobis Trailer] Trailer Custom Module |
| TRAILER4 | 20A | Trailer Control Module |
| 3RD SEAT FOLDING | 30A | 3RD Power Seat Module |
| REAR BLOWER | 40A | RR Blower Relay |
| REAR HEATED | 40A | RR Heated Relay |
| AUX BATT | 50A | 12V Lithium Auxiliary Battery |
| 3RD SEAT HEATER | 10A | 3RD Seat Warmer Control Module |
