Hyundai Accent 2021 Fuse Box Info

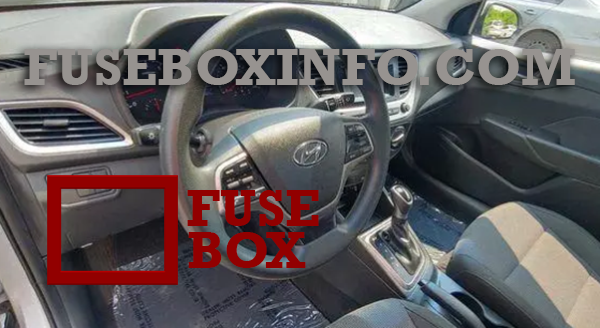

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

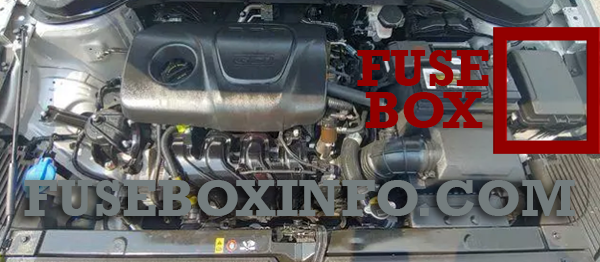

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| DOOR LOCK | 20A | I/P Junction Block (Tail Gate Unlock Relay, Door Lock/Unlock Relay, Two Turn Unlock Relay) |
| POWER OUTLET | 20A | Power Outlet |
| SAFETY P/WINDOW | 25A | Driver Safety Power Window Module |
| STOP LAMP | 15A | I/P Junction Block(Stop Signal Electronic Module) |
| T/SIGNAL LAMP | 15A | BCM, SLM |
| C/LIGHTER | 20A | Cigarette Lighter |
| HEATED MIRROR | 10A | Driver Power Outside Mirror, Passenger Power Outside Mirror, A/C Control Module |
| DRL | 10A | BCM |
| P/WINDOW RH | 25A | Power Window Main Switch, Passenger Power Window Switch |
| S/HEATER | 20A | Front Seat Warmer Control Module |
| SPARE1 | 10A | - |
| START | 7.5A | With Smart Key : ECM/PCM, E/R Junction Block(Start Relay), Smart Key Control Module, Transaxle Range Switch, Ignition Lock & Clutch Switch W/O Smart Key : Burglar Alarm Relay, Transaxle Range Switch, Ignition Lock & Clutch Switch |
| TAIL LAMP RH | 7.5A | Head Lamp RH, Rear Combination Lamp (OUT) RH, License Lamp RH, Rear Combination Lamp (IN) RH, ILL (+) |
| MODULE2 | 10A | FCA Module, Crash Pad Switch |
| TCU | 15A | E/R Junction Block(Fuse - B/UP LAMP), A/T Shift Lever, Transaxle Range Switch, Stop Lamp Switch |
| P/WINDOW LH | 25A | Power Window Main Switch |
| SPARE2 | 25A | Spare |
| FOG LAMP REAR | 10A | - |
| HEATED STEERING | 15A | Clock Spring |
| TAIL LAMP LH | 7.5A | Head Lamp LH, License Lamp LH, Rear Combination Lamp (OUT) LH, Rear Combination Lamp (IN) LH |
| MODULE3 | 7.5A | Front Seat Warmer Control Module, Audio, Electro Chromic Mirror, A/C Control Module, Clock Spring, A/T Shift Lever Indicator |
| ABS3 | 7.5A | E/R Junction Block(Multipurpose Check Connector), ESC Module |
| BRAKE SWITCH | 10A | Smart Key Control Module, Stop Lamp Switch |
| BCM | 10A | BCM |
| FOG LAMP FRONT | 15A | I/P Junction Block(Front Fog Lamp Relay) |
| A/C1 | 7.5A | E/R Junction Block(Blower Relay), A/C Control Module |
| MODULE5 | 10A | Sunroof Motor, Front Seat Warmer Control Module |
| MODULE7 | 10A | TPMS Unit |
| ECU | 10A | ECM/PCM, Immobilizer Module, Smart Key Control Module |
| SUNROOF | 15A | Sunroof Motor |
| IMMO. | 10A | Immobilizer Module |
| MODULE6 | 10A | Key Solenoid |
| SPARE4 | 10A | Spare |
| MODULE4 | 7.5A | SLM, BCM, Smart Key Control Module |
| SPARE5 | 10A | Spare |
| AIR BAG | 10A | SRS Control Module, Occupant Detection Sensor |
| MODULE1 | 7.5A | BCM, SLM, Key Interlock |
| SMART KEY | 25A | Smart Key Control Module |
| A/C2 | 7.5A | - |
| WIPER RR | 15A | Multifunction Switch, Rear Wiper Motor, Rear Wiper Relay |
| WIPER FRT | 25A | Multifunction Switch, Front Wiper Motor, E/R Junction Block(Wiper Lo Relay) |
| ACC | 10A | I/P Junction Block(Power Outlet Relay), BCM, SLM, Audio, Key Interlock Power Outside Mirror Switch, Smart Key Control Module, USB Charging Connector |
| SPARE3 | 20A | Spare |
| A/BAG IND | 7.5A | Instrument Cluster, A/C Control Module |
| CLUSTER | 7.5A | Instrument Cluster |
| MDPS2 | 7.5A | MDPS Unit |
| AUDIO | 20A | Audio |
| ROOM LP | 10A | I/P Junction Block(Room Lamp Relay), Overhead Console Lamp , A/C Control Module, SLM, BCM, Auto Light & Photo Sensor, TPMS Unit ,Instrument Cluster, Data Link Connector, Room Lamp, Trunk Room Lamp, Electro Chromic Mirror |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | MDPS Unit |
| ALT | 150A | E/R Junction Block (Fuse - ABS1, ABS2, BLOWER, REAR HEATED) |
| REAR HEATED | 40A | I/P Junction Block (Rear Defogger Relay) |
| ABS1 | 40A | ESC Module, Multipurpose Check Connector |
| ABS2 | 40A | ESC Module |
| BLOWER | 40A | E/R Junction Block (Blower Relay) |
| WIPER | 10A | Front Wiper Motor, Multifunction Switch, E/R Junction Block (Wiper LO Relay) |
| ECU4 | 15A | ECM/PCM |
| SENSOR1 | 10A | Oil Control Valve #1/#2, E/R Junction Block (Cooling Fan1/2 Relay), Oxygen Sensor (Up), Oxygen Sensor (Down), Variable Intake Solenoid Valve, Sub Relay Block (A/C Relay) Purge Control Solenoid Valve, Canister Close Valve |
| ECU2 | 15A | ECM/PCM |
| ECU3 | 20A | ECM/PCM |
| HEAD LAMP RH | 10A | Head Lamp RH |
| HEAD LAMP LH | 10A | Head Lamp LH |
| IGN COIL | 20A | Ignition Coil #1~#4, Condenser |
| ECU5 | 15A | ECM/PCM, E/R Junction Block (Fuel Pump Relay) |
| B/UP LAMP | 10A | Back-Up Lamp Switch |
| B+1 | 40A | I/P Junction Block (Fuse - DRL, FOGLAMP FRONT, STOP LAMP, MODULE6, Power Connector (AUDIO, ROOM LAMP)) |
| B+2 | 50A | I/P Junction Block (Fuse - IMMO, SMART KEY1, BRAKE SWITCH, BCM, SAFETY P/WINDOW, S/HEATER, SUNROOF, Power Window Relay) |
| IG2 | 40A | Ignition Switch, PDM Relay Box (IG2 Relay), E/R Junction Block (Start Relay) |
| COOLING FAN | 40A | E/R Junction Block (Cooling Fan1/2 Relay) |
| ECU1 | 30A | E/R Junction Block (Fuse - ECU3, ECU4, Main Relay) |
| B/ALARM HORN | 10A | B/Alarm Horn Relay |
| HEAD LAMP | 20A | E/R Junction Block (Head Lamp Relay) |
| H/LAMP HI | 20A | W/O DRL : E/R Junction Block (H/Lamp HI Relay) With DRL : SLM, BCM |
| FUEL PUMP | 20A | E/R Junction Block (Fuel Pump Relay) |
| HORN | 10A | E/R Junction Block (Horn Relay) |
| A/C | 10A | Sub Relay Block (A/C Relay) |
| AMS | 10A | Battery Sensor |
| B+3 | 40A | I/P Junction Block (Fuse - T/SIGNAL LAMP, DOOR LOCK, Tail Lamp Relay) |
| IG1 | 40A | Ignition Switch, PDM Relay Box (IG1 Relay, ACC Relay) |
| POWER OUTLET | 40A | I/P Junction Block (Power Outlet Relay) |
| AC | A/C Relay | |
| E81 | Start Relay | |
| E82 | Blower Relay | |
| E83 | Fuel Pump Relay | |
| E84 | Cooling Fan1 Relay | |
| E85 | Wiper HI Relay | |
| E86 | Wiper LO Relay | |
| E87 | H/Lamp HI Relay | |
| E88 | Head Lamp Relay | |
| E89 | Cooling Fan2 Relay | |
| E90 | Horn Relay | |
| E91 | B/Alarm Horn Relay | |
| E93 | Horn Relay |
