Ford Edge 2023 Fuse Box Info

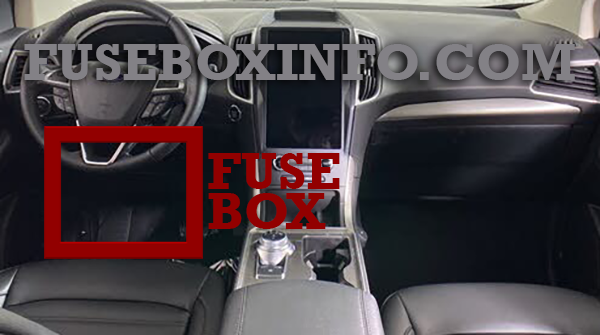

Passenger compartment fuse box location:
The fuse box is located under the instrument panel, under the steering column.

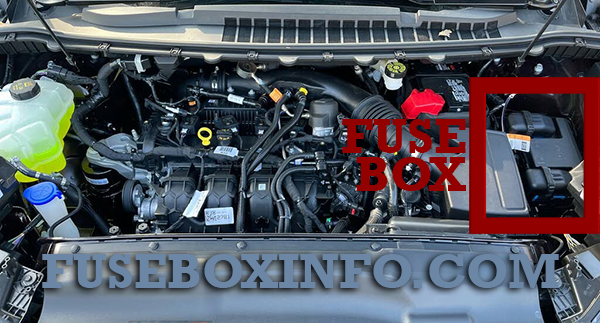

Engine compartment fuse box location:
The power distribution box is located in the engine compartment.
Fuse Box Diagram | Layout

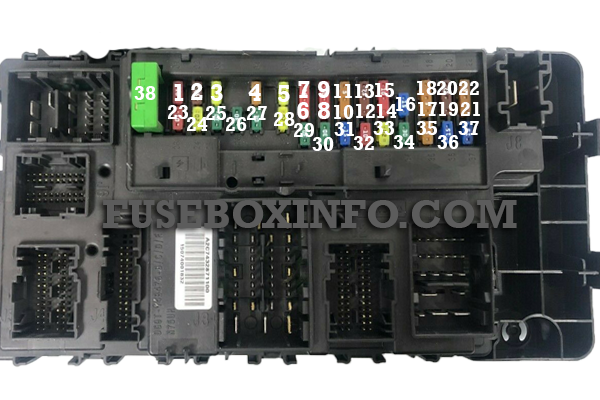

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | 10A | Delayed accessory - power inverter logic, moonroof logic and driver window switch power |
| 3 | 7.5A | Memory seats, Lumbar, Wireless accessory charging |
| 4 | 20A | Subwoofer amplifier |
| 5 | - | Not used |
| 6 | 10A | Not used (spare) |
| 7 | 10A | Gearshift module |
| 8 | 5A | Power liftgate module, Hands free liftgate module, Embedded modem |
| 9 | 5A | Keypad |
| 10 | - | Not used |
| 11 | - | Not used |
| 12 | 7.5A | Climate control module, Enhanced central gateway module |
| 13 | 7.5A | Instrument cluster, Steering column control module |
| 14 | 15A | Not used (spare) |
| 15 | 15A | SYNC module |
| 16 | - | Not used |
| 17 | 7.5A | Headlamp control module |
| 18 | 7.5A | Not used (spare) |
| 19 | 5A | Not used (spare) |
| 20 | 5A | Push button ignition switch |
| 21 | 5A | In-vehicle temperature and humidity sensor |
| 22 | 5A | Not used (spare) |
| 23 | 30A | Driver door window and mirror, Driver door module, Driver door lock indicator, Driver lock switch illumination |
| 24 | 30A | Moonroof |
| 25 | 20A | Amplifier |
| 26 | 30A | Front passenger door window and mirror, Front passenger door module, Front passenger lock indicator, Front passenger switch illumination |
| 27 | 30A | Not used (spare) |
| 28 | 30A | Not used (spare) |
| 29 | 15A | Enhanced central gateway power - OBD connector |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Radio transceiver module, Multi-function display, Integrated control panel |
| 32 | 20A | Radio |
| 33 | - | Not used |
| 34 | 30A | Run-start bus (fuse 17, 18, 21, 22, 35, 36, 37, circuit breaker 38) |
| 35 | 5A | Passenger airbag deactivation indicator |
| 36 | 15A | Rear heated seat module |
| 37 | 20A | Heated steering wheel, Auto-dimming interior mirror, Automatic high beam and lane departure mirror module |
| 38 | 30A | Circuit breaker, Right-hand rear window power, Left-hand rear window power |

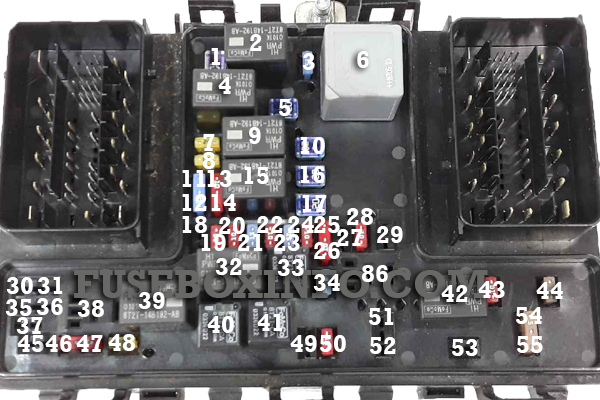

Engine compartment fuse box - Top:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | - | Starter relay |
| 3 | 15A | Rear wiper, Rain sensor, Rear washer pump relay coil |
| 4 | - | Blower motor relay |
| 5 | 20A | Power point 3 - back of console |
| 6 | - | Not used |
| 7 | 20A | Powertrain control module - vehicle power 1 |
| 8 | 20A | Powertrain control module - vehicle power 2, Canister vent, Vapor blocking valve, Heated oxygen post |
| 9 | - | Powertrain control module relay |
| 10 | 20A | Power point 1 - driver front |
| 11 | 15A | Powertrain control module - vehicle power 4 |
| 12 | 15A | Powertrain control module - vehicle power 3, All-wheel drive module relay coil, Active grille shutters, Active transmission warm up, Auxiliary cooling pump, Electric compressor bypass, Vacuum on demand valve, A/C compressor |
| 13 | - | Not used |
| 14 | - | Not used |
| 15 | - | Run-start relay |
| 16 | 20A | Power point 2 - console bin |
| 17 | 20A | Power point 4 - luggage compartment |
| 18 | - | Not used |
| 19 | 10A | Run-start electronic power assist steering |
| 20 | 10A | Headlamp leveling |
| 21 | - | Not used |
| 22 | 10A | Air conditioner clutch solenoid |
| 23 | 15A | Blind spot information system, Rear view camera, Forward looking radar, Voltage quality module (start/stop), Front split view camera, Front split view camera module |
| 24 | - | Not used |
| 25 | 10A | Run-start anti-lock brake system |
| 26 | 10A | Run-start powertrain control module |
| 27 | - | Not used |
| 28 | 10A | Rear window washer pump |
| 29 | - | Not used |
| 30 | - | Not used |
| 31 | - | Not used |
| 32 | - | Electronic fan 1 relay |
| 33 | - | A/C clutch relay |
| 34 | - | Not used |
| 35 | - | Not used |
| 36 | - | Not used |
| 37 | - | Not used |
| 38 | - | Electronic fan 2 relay |
| 39 | - | Electronic fan 3 relay |
| 40 | - | Horn relay |
| 41 | - | Steering column lock relay |
| 42 | - | Fuel pump relay |
| 43 | 10A | 2nd row easy fold seat release |
| 44 | - | Not used |
| 45 | - | Not used |
| 46 | - | Not used |
| 47 | - | Not used |
| 48 | 15A | Steering column lock relay power |
| 49 | - | Not used |
| 50 | 20A | Horn |
| 51 | - | Not used |
| 52 | - | Not used |
| 53 | - | Not used |
| 54 | 10A | Brake on off switch |
| 55 | 10A | Alternator sensor |
| 86 | - | Not used |
Engine compartment fuse box - Bottom:
There are fuses located on the bottom of the fuse box. To access the bottom of the fuse box, do the following:
1. Release the two latches, located on both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
| Fuse/Relay N° | Rating | Functions |
| 56 | - | Not used |
| 57 | - | Not used |
| 58 | 30A | Fuel pump feed |
| 59 | 40A | Electronic fan 3 |
| 60 | 40A | Electronic fan 1 |
| 61 | - | Not used |
| 62 | 50A | Body control module 1 |
| 63 | 25A | Electronic fan 2 |
| 64 | - | Not used |
| 65 | 20A | Front heated seat |
| 66 | 15A | Not used (spare) |
| 67 | 50A | Body control module 2 |
| 68 | 40A | Heated rear window |
| 69 | 30A | Anti-lock brake system valves |
| 70 | 30A | Passenger seat |
| 71 | - | Not used |
| 72 | - | Not used |
| 73 | 20A | Rear heated seats |
| 74 | 30A | Driver seat module, Driver seat power |
| 75 | 25A | Wiper motor 1 |
| 76 | 30A | Power liftgate module |
| 77 | 30A | Climate control seat module |
| 78 | 40A | Trailer lighting module |
| 79 | 40A | Blower motor |
| 80 | 25A | Wiper motor 2 |
| 81 | 40A | 110 volt inverter |
| 82 | - | Not used |
| 83 | - | Not used |
| 84 | 30A | Starter motor solenoid |
| 85 | - | Not used |
| 87 | 60A | Anti-lock brake system pump |
