Ford Edge 2020 Fuse Box Info
Fuse box location:
The fuse panel is located under the instrument panel to the left of the steering column.
Engine compartment fuse box:
The power distribution box is located in the engine compartment.
Fuse Box Diagram | Layout

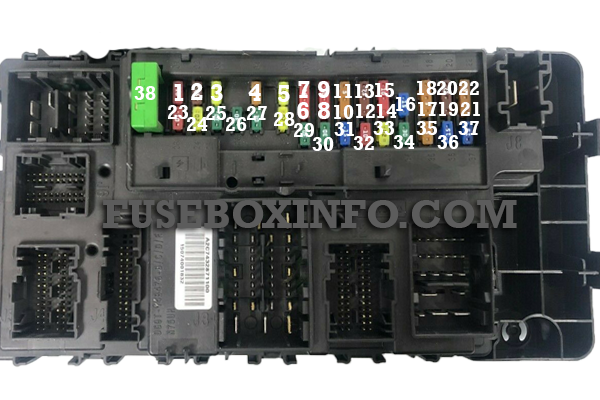

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | 7.5A* | Memory seats, Lumbar, Wireless charger |
| 3 | 20A* | Driver door unlock |
| 4 | 5A* | Not used (spare) |
| 5 | 20A* | Audio amplifier |
| 6 | 10A** | Not used (spare) |
| 7 | 10A** | Not used (spare) |
| 8 | 10A** | Not used (spare) |
| 9 | 10A** | Not used (spare) |
| 10 | 5A** | Keypad, Power liftgate module logic power, Hands free liftgate module, Embedded modem |
| 11 | 5A** | Not used (spare) |
| 12 | 7.5A** | Climate control module, Gear shift module |
| 13 | 7.5A** | Cluster, Steering column control module, Smart datalink connector (gateway) module |
| 14 | 10A** | Extended power module |
| 15 | 10A** | Datalink power |
| 16 | 15A* | Not used (spare) |
| 17 | 5A** | Not used (spare) |
| 18 | 5A** | Push button start switch |
| 19 | 7.5A** | Extended power module |
| 20 | 7.5A** | Not used (spare) |
| 21 | 5A** | Humidity and in–car temperature sensor |
| 22 | 5A** | Occupant classification sensor |
| 23 | 10A* | Delayed accessory (power inverter logic, moonroof logic, driver window switch power) |
| 24 | 20A* | Central lock unlock |
| 25 | 30A* | Driver door (window, mirror), Driver door module, Driver door lock indicator, Driver lock switch illumination |
| 26 | 30A* | Front passenger door (window, mirror), Front passenger door module, Front passenger lock indicator, Front passenger switch illumination (window, lock) |
| 27 | 30A* | Moonroof |
| 28 | 20A* | Amplifier |
| 29 | 30A* | Not used (spare) |
| 30 | 30A* | Not used (spare) |
| 31 | 15A* | Not used (spare) |
| 32 | 10A* | Center stack display, Voice control (SYNC), Radio transceiver module |
| 33 | 20A* | Radio |
| 34 | 30A* | Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker 38) |
| 35 | 5A* | Not used (spare) |
| 36 | 15A* | Auto-dimming rear view mirror, Heated seat, Auto high beam/lane departure mirror module, Rear heated seat module logic power |
| 37 | 20A* | Heated steering wheel module, Active front steering wheel |
| 38 | 30A*** | Rear power windows, Rear window switch illumination |
|
* Micro 2 fuse ** Micro 3 fuse *** Circuit breaker |

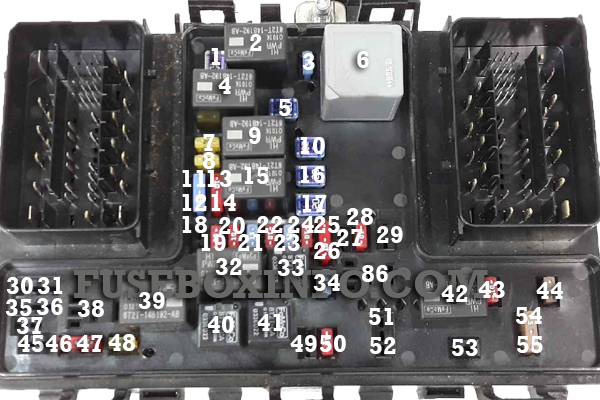

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A* | Not used (spare) |
| 2 | - | Starter relay |
| 3 | 15A** | Rear wiper, Rain sensor, Rear washer pump relay coil |
| 4 | - | Blower motor relay |
| 5 | 20A* | Power point 3 - back of console |
| 6 | - | Not used |
| 7 | 20A** | Powertrain control module - vehicle power 1 |
| 8 | 20A** | Powertrain control module - vehicle power 2 |
| 9 | - | Powertrain control module relay |
| 10 | 20A* | Power point 1 - driver front |
| 11 | 15A*** | Powertrain control module - vehicle power 4 |
| 12 | 15A*** | Powertrain control module - vehicle power 3, All wheel drive module relay coil |
| 13 | - | Not used |
| 14 | - | Not used |
| 15 | - | Run-start relay |
| 16 | 20A* | Power point 2 - console bin |
| 17 | 20A* | Power point 4 - luggage compartment |
| 18 | 20A** | Not used |
| 19 | 10A** | Run-start electronic power assist steering |
| 20 | 10A** | Headlamp leveling motors |
| 21 | 15A** | Not used (spare) |
| 22 | 10A** | Air conditioner clutch solenoid |
| 23 | 15A** | Run-start 6, Blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display, Voltage quality module (start/stop), Front split view camera, Front split view camera module |
| 24 | 10A** | Not used (spare) |
| 25 | 10A*** | Run-start anti-lock brake system |
| 26 | 10A*** | Run-start powertrain control module |
| 27 | - | Not used |
| 28 | 10A** | Rear washer pump |
| 29 | 5A** | Not used (spare) |
| 30 | - | Not used |
| 31 | - | Not used |
| 32 | - | Electronic fan 1 relay |
| 33 | - | A/C clutch relay |
| 34 | 15A** | Not used (spare) |
| 35 | - | Not used |
| 36 | - | Not used |
| 37 | 10A** | Power transfer unit fan |
| 38 | - | Electronic fan 2 relay |
| 39 | - | Electric fan 3 relay |
| 40 | - | Horn relay |
| 41 | - | Low beam assumption relay |
| 42 | - | Fuel pump relay |
| 43 | 10A** | 2nd row easy fold seat release |
| 44 | 20A** | Not used (spare) |
| 45 | - | Not used |
| 46 | - | Not used |
| 47 | - | Not used |
| 48 | 15A** | Steering column lock relay power |
| 49 | - | Not used |
| 50 | 20A** | Horn |
| 51 | - | Not used |
| 52 | - | Not used |
| 53 | - | Not used |
| 54 | 10A*** | Brake on off switch |
| 55 | 10A*** | Alternator sensor |
| 86 | - | Not used |
|
* M case fuse ** Micro 2 fuse *** Micro 3 fuse |
Engine compartment fuse box - bottom:
There are fuses located on the bottom of the fuse box. To access the bottom of the fuse box, do the following:
1. Release the two latches, located on both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
| Fuse/Relay N° | Rating | Functions |
| 56 | - | Not used |
| 57 | - | Not used |
| 58 | 30A* | Fuel pump feed |
| 59 | 40A** | Electronic fan 3 |
| 60 | 40A** | Electronic fan 1 |
| 61 | - | Not used |
| 62 | 50A** | Body control module 1 |
| 63 | 25A* | Electronic fan 2 |
| 64 | - | Not used |
| 65 | 20A* | Front heated seat |
| 66 | 15A* | Heated wiper park |
| 67 | 50A** | Body control module 2 |
| 68 | 40A* | Heated rear window |
| 69 | 30A* | Anti-lock brake system valves |
| 70 | 30A* | Passenger seat |
| 71 | - | Not used |
| 72 | 20A* | Not used (spare) |
| 73 | 20A* | Rear heated seats |
| 74 | 30A* | Driver seat module, Power driver seat (less memory) |
| 75 | 25A* | Wiper motor 1 |
| 76 | 30A* | Power liftgate module |
| 77 | 30A* | Climate control seat module |
| 78 | 40A* | Trailer lighting module |
| 79 | 40A** | Blower motor |
| 80 | 25A* | Wiper motor 2 |
| 81 | 40A* | 110 volt inverter |
| 82 | - | Not used |
| 83 | 20A* | Not used (spare) |
| 84 | 30A* | Starter solenoid |
| 85 | - | Not used |
| 86 | - | Not used |
| 87 | 60A** | Anti-lock brake system pump |
|
* M case fuse ** J case fuse. |
