Ford Edge 2011 Fuse Box Info
Fuse box location:
The fuse panel is located behind a trim panel on the left side of the driver’s footwell near the parking brake. To remove the trim panel, slide the release lever to the right then pull the trim panel out. To remove the fuse panel cover, press in the tabs on both sides of the cover, then pull the cover off.

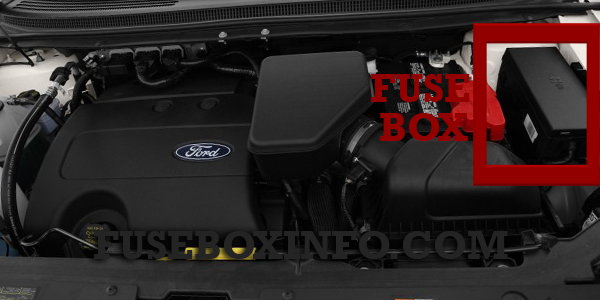

Engine compartment fuse box:
The power distribution box is located in the engine compartment.
Fuse Box Diagram | Layout

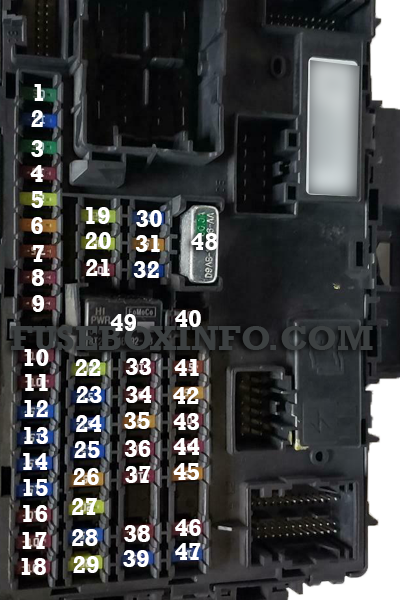

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Driver front smart window |
| 2 | 15A | Not used (spare |
| 3 | 30A | Not used (spare |
| 4 | 10A | Demand lamps |
| 5 | 20A | Not used (spare |
| 6 | 5A | RF module |
| 7 | 7.5A | Power mirror switch, Memory seat switch, Driver seat module |
| 8 | 10A | Not used (spare) |
| 9 | 10A | Power liftgate |
| 10 | 10A | Run/accessory relay |
| 11 | 10A | Instrument panel cluster, Heads-up display |
| 12 | 15A | Interior lighting, Puddle lamps, Backlighting |
| 13 | 15A | Right turn/stop lamps and turn signals |
| 14 | 15A | Left turn/stop lamps and turn signals |
| 15 | 15A | Reverse lamps, Stop lamps, High-mounted stop lamps |
| 16 | 10A | Low beam headlamps (right) |
| 17 | 10A | Low beam headlamps (left) |
| 18 | 10A | Keypad illumination, Brake shift interlock (BSI), Passenger compartment fuse panel, Start button LED, Passive anti-theft system (PATS), Powertrain control module (PCM) wake-up, 2nd row power enable |
| 19 | 20A | Amplifier/subwoofer (Sony) |
| 20 | 20A | Lock/unlock relays – vehicles without intelligent access (IA) |
| 21 | 10A | Not used (spare) |
| 22 | 20A | Horn relay |
| 23 | 15A | Steering wheel control, IA, Headlamp switch |
| 24 | 15A | On-board diagnostics (OBDII) |
| 25 | 15A | Liftgate release |
| 26 | 5A | Global positioning system (GPS) module |
| 27 | 20A | IA |
| 28 | 15A | Ignition switch (without IA), Key inhibit solenoid, Push button start (with IA) |
| 29 | 20A | Radio, Multi-function display screen, Electronic finish panel, SYNC module |
| 30 | 15A | Front park lamps |
| 31 | 5A | Not used (spare) |
| 32 | 15A | Lock switch backlighting, Moon roof, Power windows, Compass/auto-dimming rear view mirror |
| 33 | 10A | Not used (spare) |
| 34 | 10A | Reverse sensing system, Rearview camera, Blind spot monitor |
| 35 | 5A | Heads-up display, Headlamp leveling |
| 36 | 10A | Not used (spare) |
| 37 | 10A | Climate control |
| 38 | 10A | Not used (spare) |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Rear park lamps |
| 41 | 7.5A | Occupant classification sensor (OCS), Restraints control module |
| 42 | 5A | Grade assist control switch |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control |
| 47 | 15A | Not used (spare) |
| 48 | 30A Circuit Breaker | Power windows/moon roof |
| 49 | - | Delayed accessory relay |

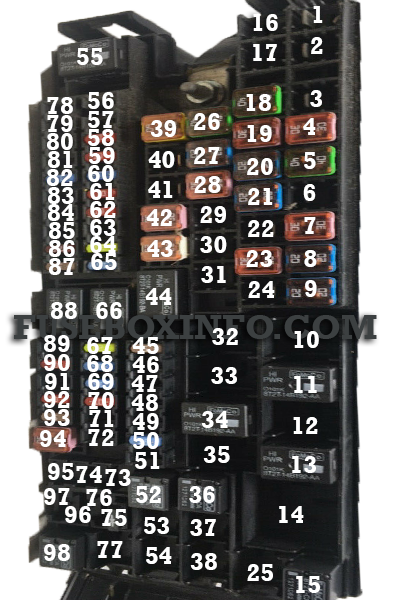

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | - | Not used |
| 4 | 30A** | Wipers |
| 5 | 40A** | Anti-lock brake system (ABS) pump |
| 6 | - | Not used |
| 7 | 30A** | Power liftgate |
| 8 | 20A** | Moon roof |
| 9 | 20A** | Power point #2 (console rear) |
| 10 | - | Not used |
| 11 | - | Rear window defroster/heated mirror relay |
| 12 | - | Not used |
| 13 | - | Starter relay |
| 14 | - | Not used |
| 15 | - | Fuel pump relay |
| 16 | - | Not used |
| 17 | - | Not used |
| 18 | 40A** | Blower motor |
| 19 | 30A** | Starter motor |
| 20 | 20A** | Power point #1 (console bin) |
| 21 | 20A** | Cargo area power point |
| 22 | - | Not used |
| 23 | 30A** | Driver seat module |
| 24 | - | Not used |
| 25 | - | Not used |
| 26 | 40A** | Rear window defroster |
| 27 | 20A** | Front power point/lighter |
| 28 | 30A** | Climate controlled seats |
| 29 | - | Not used |
| 30 | - | Not used |
| 31 | - | Not used |
| 32 | - | Not used |
| 33 | - | Not used |
| 34 | - | Blower motor relay |
| 35 | - | Not used |
| 36 | - | Rear seat relay |
| 37 | - | Right trailer tow (TT) stop/turn lamps relay |
| 38 | - | Not used |
| 39 |
40A** 60A** |
Cooling fan (vehicles with TT) Cooling fan (vehicles without TT) |
| 40 | 40A** | Cooling fan (TT only) |
| 41 | - | Not used |
| 42 | 30A** | Passenger seat |
| 43 | 30A** | ABS valves |
| 44 | - | Rear washer relay |
| 45 | 5A* | Rain sensor |
| 46 | - | Not used |
| 47 | - | Not used |
| 48 | - | Not used |
| 49 | - | Not used |
| 50 | 15A* | Heated mirror |
| 51 | - | Not used |
| 52 | - | Stop lamp relay |
| 53 | - | Left TT stop/turn lamps relay |
| 54 | - | Not used |
| 55 | - | Wiper relay |
| 56 | - | Not used |
| 57 | 20A* | Left high-intensity discharge (HID) headlamps |
| 58 | 10A* | Alternator sensor |
| 59 | 10A* | Brake on/off switch |
| 60 | 15A* | Stop lamps |
| 61 | 10A* | Rear seat release |
| 62 | 10A* | A/C clutch |
| 63 | 15A* | TT stop/turn lamps relay |
| 64 | 20A* | Rear wiper motor |
| 65 | 15A* | Fuel pump |
| 66 | - | Powertrain control module (PCM) relay |
| 67 | 20A* | Vehicle power (VPWR) #2 |
| 68 | 15A* | VPWR #4 |
| 69 | 15A* | VPWR #1 |
| 70 | 10A* | A/C relay, All-wheel drive module |
| 71 | - | Not used |
| 72 | - | Not used |
| 73 | - | Not used |
| 74 | - | Not used |
| 75 | - | A/C clutch diode |
| 76 | - | Not used |
| 77 | - | TT park lamps relay |
| 78 | 20A* | Right HID headlamps |
| 79 | 5A* | Adaptive cruise control |
| 80 | - | Not used |
| 81 | - | Not used |
| 82 | 15A* | Rear washer |
| 83 | - | Not used |
| 84 | 20A* | TT park lamps |
| 85 | - | Not used |
| 86 | 7.5A* | PCM keep-alive, PCM relay |
| 87 | 5A* | Run/start relay |
| 88 | - | Run/start relay |
| 89 | - | Not used |
| 90 | 10A* | PCM |
| 91 | 10A* | Adaptive cruise control |
| 92 | 10A* | ABS module |
| 93 | 5A* | Blower motor/rear defroster relay |
| 94 | 30A* | Passenger compartment fuse panel run/start |
| 95 | - | Not used |
| 96 | - | Not used |
| 97 | - | Not used |
| 98 | - | A/C clutch relay |
| 99 |
* Mini Fuses ** Cartridge Fuses |
