Ford Edge 2010 Fuse Box Info

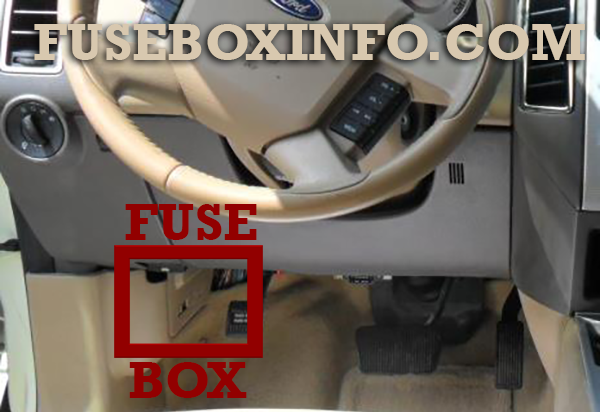

Fuse box location:
The fuse panel is located behind a trim panel on the left side of the driver’s footwell near the parking brake. To remove the trim panel, slide the release lever to the right then pull the trim panel out. To remove the fuse panel cover, press in the tabs on both sides of the cover, then pull the cover off.

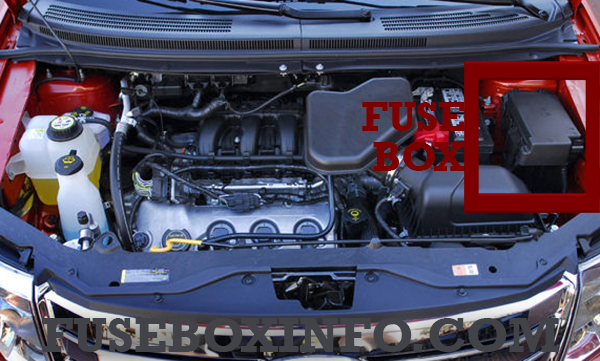

Engine compartment fuse box:
The power distribution box is located in the engine compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Not used (Spare) |
| 2 | 15A | High-mount brake lamp (brake on/off) |
| 3 | 15A | SYNC module |
| 4 | 30A | Driver front smart window |
| 5 | 10A | Keypad illumination (2nd row seat), Brake shift interlock (BSI) |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights, Cargo lamps |
| 10 | 15A | Backlighting, Puddle lamps |
| 11 | 10A | All wheel drive (AWD) |
| 12 | 7.5A | Power mirror switch, Driver side power seat memory, Driver seat module – keep alive power |
| 13 | 5A | Satellite radio |
| 14 | 10A | Power liftgate – keep alive power |
| 15 | 10A | Climate control, GPS module |
| 16 | 15A | Not used (Spare) |
| 17 | 20A | All power lock motor feeds, Liftgate release |
| 18 | 20A | Amplifier |
| 19 | 25A | Rear wiper |
| 20 | 15A | Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Overdrive cancel |
| 31 | 10A | Not used (Spare) |
| 32 | 10A | Restraint control module |
| 33 | 10A | Not used (Spare) |
| 34 | 5A | Steering angle sensor |
| 35 | 10A | Rear park assist, Yaw rate sensor, Heated seats |
| 36 | 5A | Passive anti-theft system transceiver |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer/amplifier |
| 39 | 20A | Radio |
| 40 | 20A | Not used (Spare) |
| 41 | 15A | Automatic dimming rear view mirror |
| 42 | 10A | Not used (Spare) |
| 43 | 10A | Rear wiper logic |
| 44 | 10A | Customer accessory feed |
| 45 | 5A | Front wiper logic |
| 46 | 7.5A | Occupant classification sensor (OCS), Passenger airbag deactivation indicator (PADI) light |
| 47 | 30A Circuit Breaker | Power windows |
| 48 | - | Delayed accessory relay |

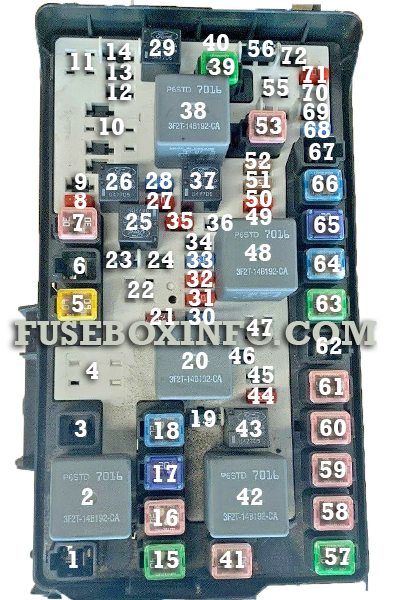

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | - | Blower motor relay |
| 3 | - | Not used |
| 4 | - | Not used |
| 5 |
40A** 60A** |
Cooling fan (vehicles with trailer tow) Cooling fan (vehicles without trailer tow) |
| 6 | 40A** | Cooling fan (trailer tow only) |
| 7 | - | Not used |
| 8 | 10A* | Alternator |
| 9 | 20A* | Trailer tow parking lamps |
| 10 | - | Not used |
| 11 | - | Trailer tow parking lamp relay |
| 12 | - | Not used |
| 13 | - | Not used |
| 14 | - | Not used |
| 15 | 40A** | ABS pump motor |
| 16 | 30A** | Front heated seats |
| 17 | 20A** | Cigar lighter/Power point |
| 18 | 20A** | Panoramic moon roof |
| 19 | - | Fuel pump diode |
| 20 | - | Powertrain control module (PCM) relay |
| 21 | 7.5A* | PCM – Keep alive power |
| 22 | - | Trailer tow left stop/turn lamp relay |
| 23 | - | One touch integrated start (OTIS) diode |
| 24 | 10A* | Trailer tow left stop/turn lamp |
| 25 | - | Rear seat release relay |
| 26 | - | Fuel pump relay |
| 27 | 10A* | Rear seat release |
| 28 | 15A* | Heated mirror |
| 29 | - | Heated mirror relay |
| 30 | 15A* | Vehicle power 1 |
| 31 | 10A* | Vehicle power 2 |
| 32 | 10A* | Vehicle power 3 |
| 33 | 15A* | Vehicle power 4 |
| 34 | - | Not used |
| 35 | 10A* | A/C clutch |
| 36 | - | Not used |
| 37 | - | A/C clutch relay |
| 38 | - | Rear window defroster relay |
| 39 | 40A** | Rear window defroster |
| 40 | - | Not used |
| 41 | 30A** | Starter |
| 42 | - | Starter relay |
| 43 | - | Backup lamp relay |
| 44 | 10A** | Backup lamps |
| 45 | - | Not used |
| 46 | 10A** | Trailer tow right stop/turn lamp |
| 47 | - | Trailer tow right stop/turn lamp relay |
| 48 | - | Run/Start relay |
| 49 | 10A* | PCM ISPR |
| 50 | 10A* | ABS Run/Start |
| 51 | - | Not used |
| 52 | 5A* | Fuel pump relay coil |
| 53 | 30A** | Passenger compartment fuse panel run/start |
| 54 | - | Not used |
| 55 | - | Not used |
| 56 | - | A/C clutch diode |
| 57 | 40A** | ABS valves |
| 58 | 30A** | Front wipers |
| 59 | 30A** | Power liftgate |
| 60 | 30A** | Driver power seat/memory module |
| 61 | 30A** | Passenger power seat |
| 62 | - | Not used |
| 63 | 40A** | Blower motor |
| 64 | 20A** | Cigar lighter/Power point |
| 65 | 20A** | Cigar lighter/Power point |
| 66 | 20A** | Cigar lighter/Power point |
| 67 | - | Not used |
| 68 | 15A** | Fuel pump |
| 69 | - | Not used |
| 70 | - | Not used |
| 71 | 10A** | Brake on/off switch (brake lights) |
| 72 | - | Not used |
| 73 |
* Mini Fuses ** Cartridge Fuses |
