Citroën C4 2014 Fuse Box Diagram
Fuse box location:

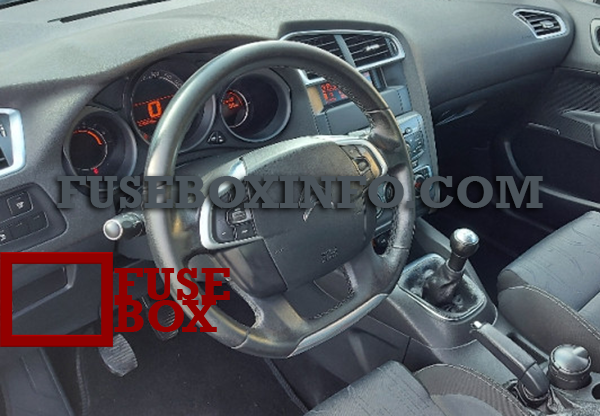

The fuseboxes are located in the lower dashboard.
Engine compartment fusebox:

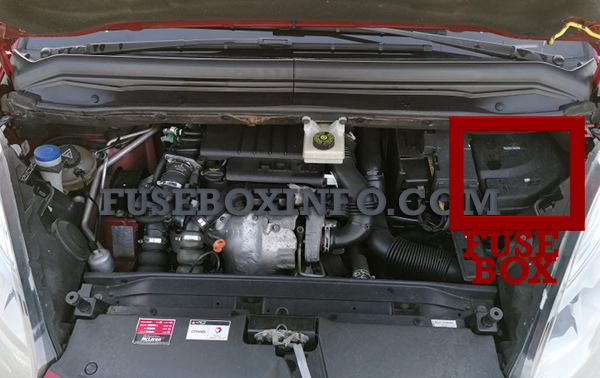

The fusebox is placed in the engine compartment near the battery.
Fuse Box Diagram | Layout
Dashboard fuses:
| Fuse N° | Rating | Functions |
| F8 | 3 A | Alarm siren, alarm ECU. |
| F13 | 10 A | 12 V socket. |
| F14 | 10 A | 12 V socket in boot. |
| F16 | 3 A | Lighting for the large multifunctional storage unit, rear map reading lamps, glove box illumination. |
| F17 | 3 A | Sun visor illumination, front map reading lamps. |
| F28 | 15 A | Audio system, radio (after-market). |
| F30 | 20 A | Rear wiper. |
| F32 | 10 A | Hi-Fi amplifier. |
| Fuse N° | Rating | Functions |
| F36 | 15 A | Rear 12 V socket. |
| F37 | - | Not used. |
| F39 | - | Not used. |
| F40 | - | Not used. |
Engine compartment fusebox:
| Fuse N° | Rating | Functions |
| F19 | 30 A | Windscreen wipers slow/fast speed. |
| F20 | 15 A | Front and rear screenwash pump. |
| F21 | 20 A | Headlamp wash pump. |
| F22 | 10 A | Horn. |
| F23 | 15 A | Right-hand main beam headlamp. |
| F24 | 15 A | Left-hand main beam headlamp. |
| F27 | 5 A | Left-hand dipped headlamp. |
| F28 | 5 A | Right-hand dipped headlamp. |
