Citroën C5 2012 Fuse Box Info

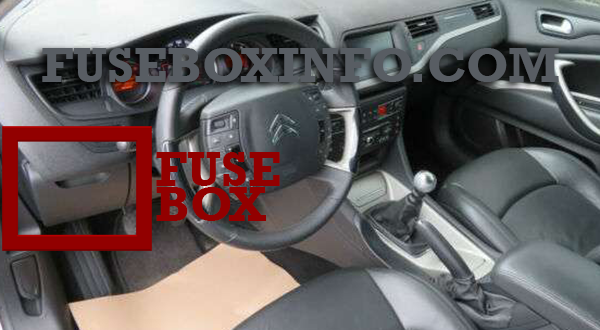

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

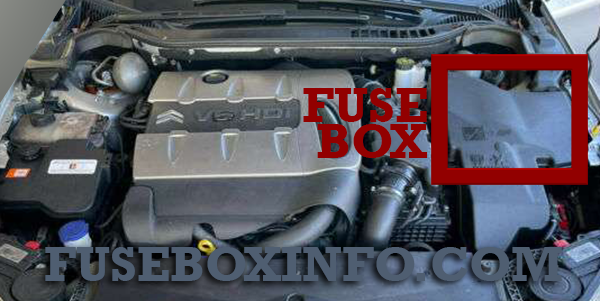

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay N° | Rating | Functions |
| Box A | ||
| G29 | - | - |
| G30 | 5A | Heated door mirrors |
| G31 | 5A | Rain and sunshine sensor |
| G32 | 5A | Seat belt not fastened warning lamps |
| G33 | 5A | Electrochromatic mirrors |
| G34 | 20A | Sunroof (saloon) |
| G35 | 5A | Passenger door lighting - passenger door mirror adjustment |
| G36 | 30A | Electric tailgate (Tourer) |
| G37 | 20A | Heated front seats |
| G38 | 30A | Driver’s electric seat |
| G39 | 30A | Passenger’s electric seat - HIFI amplifier |
| G40 | 3A | Trailer relay unit supply |
| Box B | ||
| G36 |
15A 5A |
6 speed automatic gearbox 4 speed automatic gearbox |
| G37 | 10A | Daytime-running lamps - Diagnostic socket |
| G38 | 3A | ESP |
| G39 | 10A | Hydraulic suspension |
| G40 | 3A | STOP switch |
| Box C | ||
| F1 | 15A | Rear screen wipe (Tourer) |
| F2 | 30A | Locking and deadlocking relay |
| F3 | 5A | Airbags |
| F4 | 10A | Automatic gearbox - Additional heater unit (Diesel) - Electrochrome rear view mirrors |
| F5 | 30A | Front window - Sun roof - Passenger door lighting - Passenger door mirror adjustment |
| F6 | 30A | Rear window |
| F7 | 5A | Vanity mirror lighting – Glove box lighting – Interior lamps - Torch (Tourer) |
| F8 | 20A | Radio - CD changer - Steering mounted controls - Screen - Deflation detection - Electric boot ECU |
| F9 | 30A | Cigarette lighter - Front 12 V socket |
| F10 | 15A | Alarm - Steering mounted controls, lighting, signalling and wiper stalks |
| F11 | 15A | Low current anti-theft switch |
| F12 | 15A | Driver’s electric seat - Instrument panel - Seat belt not fastened warning lamps - Air conditioning controls |
| F13 | 5A | Engine relay unit - Hydraulic suspension pump cut-off relay - Airbag ECU supply |
| F14 | 15A | Rain and sunshine sensor - parking sensors- passenger’s electric seat - trailer relay unit - HIFI amplifi er ECU - Bluetooth system - Lane Departure Warning System |
| F15 | 30A | Locking and deadlocking relay |
| F17 | 40A | Heated rear screen - Heated door mirrors |
| FSH | SHUNT | PARK SHUNT |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Engine control unit |
| 2 | 15A | Horn |
| 3 | 10A | Screen wash pump |
| 4 | 10A | Headlamp wash pump |
| 5 | 15A | Engine actuators |
| 6 | 10A | Air flow meter - Directional headlamps - Diagnostic socket |
| 7 | 10A | Automatic gearbox lever lock - Power steering |
| 8 | 25A | Starter motor |
| 9 | 10A | Clutch switch - STOP switch |
| 10 | 30A | Engine actuators |
| 11 | 40A | Air conditioning blower |
| 12 | 30A | Wipers |
| 13 | 40A | BSI supply (ignition on) |
| 14 | 30A | - |
| 15 | 10A | Right-hand main beam |
| 16 | 10A | Left-hand main beam |
| 17 | 15A | Right-hand dipped beam |
| 18 | 15A | Left-hand dipped beam |
| 19 | 15A | Engine actuators |
| 20 | 10A | Engine actuators |
| 21 | 5A | Engine actuators |
Fuses on the battery:
| Fuse N° | Rating | Functions |
| 6 | 25A | Rear 12 V socket (max power: 100 W) |
| 7 | 15A | Foglamps |
| 8 | 20A | Additional burner (Diesel) |
| 9 | 30A | Electric parking brake |
