Chevrolet Camaro 2010 Fuse Box Info
Fuse box location:
The instrument panel fuse box is on the end of the instrument panel, on the driver side of the vehicle.

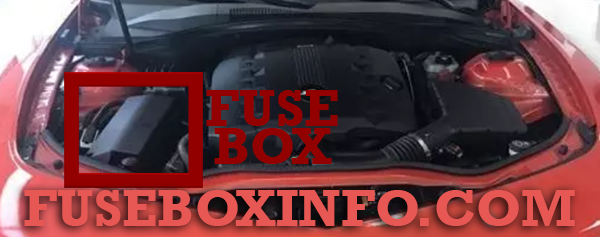

Engine compartment fuse box:

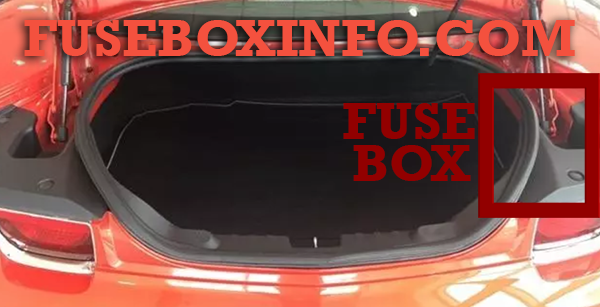

Luggage compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Discrete Logic Ignition Switch |
| 2 | Diagnostic Link Connector |
| 3 | Airbag |
| 4 | Cluster |
| 5 | Heating Ventilation Air Conditioning Controller |
| 6 | Body Control Module |
| 8 | Battery |
| 9 | Spare |
| 10 | Spare |
| 11 | Spare |
| 12 | Spare |
| 13 | Display |
| 14 | OnStar® Universal Hands Free Phone |
| 15 | Body Control Module 3 |
| 16 | Body Control Module 4 |
| 17 | Power Outlet 1 |
| 18 | Power Outlet 2 |
| 19 | Steering Wheel Controls Backlight |
| 20 | Spare |
| 21 | Spare |
| 22 | Spare |
| 23 | Spare |
| 24 | Automatic Occupant Sensing |
| 25 | Body Control Module 1 |
| 27 | Body Control Module 8 |
| 28 | Spare |
| 29 | Body Control Module 5 |
| 30 | Body Control Module 7 |
| Circuit Breaker | |
| CB7 | Passenger Seat |
| CB26 | Driver Seat |
| Relays | |
| K10 | Retained Accessory Power |
| K605 | Not Used |
| K609 | Trunk |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Air Conditioning Compressor Clutch |
| 2 | Transmission Control Module |
| 5 | Engine Control Module Main |
| 7 | Pre-Catalytic Converter Oxygen Sensor |
| 8 | Post-Catalytic Converter Oxygen Sensor |
| 9 | Fuel Injectors – Even |
| 10 | Fuel Injectors – Odd |
| 11 | Cooling Fan Relay |
| 14 | Manifold Air Flow/Chassis Control |
| 15 | Ignition |
| 16 | Run/Crank IP |
| 17 | Sensing Diagnostic Module/Ignition |
| 18 | Run/Crank Body |
| 19 | Transmission Control Module/ Ignition |
| 20 | Engine Control Module/Ignition |
| 31 | Outside Rear View Mirror |
| 32 | Canister Vent Solenoid |
| 33 | Body Control Module #6 |
| 34 | Sunroof |
| 35 | Front Heated Seats |
| 38 | Washer Pump Front |
| 40 | Antilock Brake System Valves |
| 46 | HID Headlamp – Left Front |
| 47 | HID Headlamp – Right Front |
| 50 | Fog Lamps |
| 51 | Horn |
| 52 | Spare |
| 55 | High Beam Headlamp – Right Front |
| 56 | High Beam Headlamp – Left Front |
| 61 | Heated Mirror |
| J-Case Fuses | |
| 6 | Wiper |
| 12 | Starter |
| 22 | Brake Vacuum Pump |
| 25 | Power Windows Rear |
| 26 | Power Windows Front |
| 27 | Rear Defog |
| 41 | Cooling Fan High |
| 42 | Front Heater, Ventilation and Air Conditioning |
| 43 | Antilock Brake System Pump |
| 44 | Cooling Fan Low |
| Mini Relays | |
| K26 | Powertrain |
| K50 | Run / Crank |
| K55 | Rear Defog |
| K612 | Cooling Fan High |
| K614 | Cooling Fan Control |
| Micro Relays | |
| K61 | Starter |
| K69 | Wiper Control |
| K613 | Cooling Fan Low |
| K617 | Air Conditioning Compressor Clutch |
| K619 | Wiper Speed |
| K627 | High Intensity Discharge Headlamps |
| K632 | Brake Vacuum Pump |

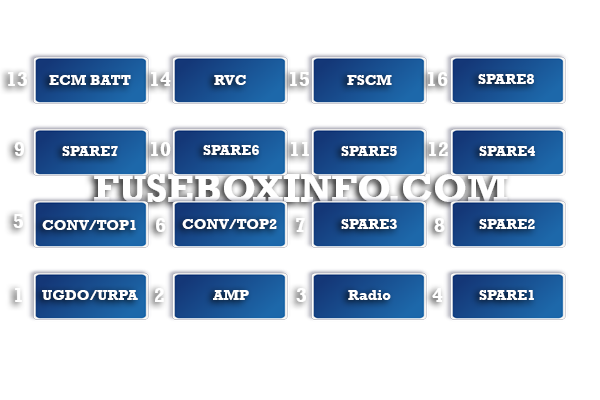

Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Universal Garage Door Opener/ Ultrasonic Reverse Parking Aid |
| 2 | Amplifier |
| 3 | Radio |
| 4 | Spare |
| 5 | Convertible Top 1 |
| 6 | Convertible Top 2 |
| 7 | Spare |
| 8 | Spare |
| 9 | Spare |
| 10 | Spare |
| 11 | Spare |
| 12 | Spare |
| 13 | Engine Control Module/Battery |
| 14 | Regulated Voltage Control |
| 15 | Fuel System Control Module |
| 16 | Spare |
