Chevrolet Camaro 2024 Fuse Box Info

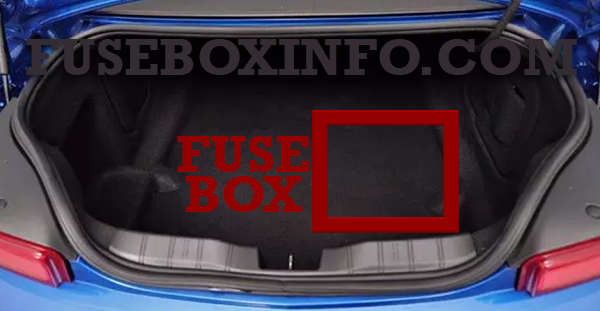

Luggage compartment fuse box location:
The rear compartment fuse box is on the right side under the trunk load floor.

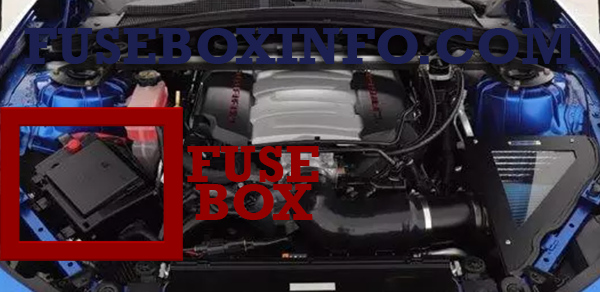

Engine compartment fuse box location:
Fuse Box Diagram | Layout

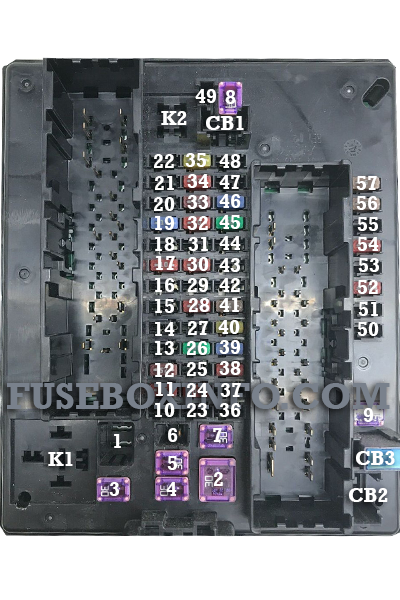

Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Rear window defogger |
| 2 | Front blower |
| 3 | Electric parking brake |
| 4 | - |
| 5 | - |
| 6 | Rear drive control module |
| 7 | Right window |
| 8 | - |
| 9 | Left window |
| 10 | Heated mirror |
| 11 | - |
| 12 | Heated steering wheel |
| 13 | - |
| 14 | HVAC control |
| 15 | Spare |
| 16 | Display |
| 17 | Spare |
| 18 | - |
| 19 | Front ventilated seat |
| 20 | Spare |
| 21 | - |
| 22 | - |
| 23 | Body control module |
| 24 | - |
| 25 | - |
| 26 | - |
| 27 | RGB lights |
| 28 | Passive entry/ Passive start battery |
| 29 | Data link connector |
| 30 | Canister vent |
| 31 | Power fold top |
| 32 | Memory seat module |
| 33 | Wireless charger |
| 34 | Engine control module battery |
| 35 | Fuel system control module V6 |
| 36 | - |
| 37 | Electric steering column lock |
| 38 | Outside rear view mirror/ Power window |
| 39 | Rear closure |
| 40 | - |
| 41 | Battery regulated voltage control |
| 42 | SADS |
| 43 | Rear drive control module/ICCM |
| 44 | Folding top solenoid |
| 45 | Amplifier |
| 46 | Fuel system control module V8 |
| 47 | Shunt |
| 48 | - |
| 49 | Steering wheel |
| 50 | Front camera module |
| 51 | Camera module |
| 52 | Ultrasonic park aid |
| 53 | - |
| 54 | Side blind zone alert |
| 55 | Radio |
| 56 | - |
| 57 | - |
| K1 | Rear window defogger |
| K2 | Fuel system control module |
| CB1 | - |
| CB2 | Retained accessory power |
| CB3 | - |

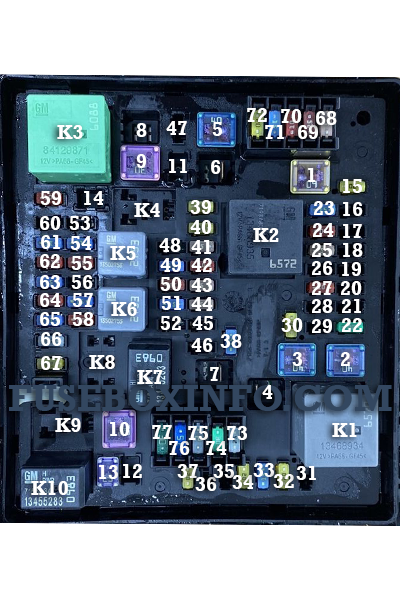

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | ABS pump |
| 2 | - |
| 3 | Driver power seat |
| 4 | Cooling fan |
| 5 | Passenger power seat |
| 6 | - |
| 7 | - |
| 8 | - |
| 9 | - |
| 10 | - |
| 11 | AUX DRL |
| 12 | Front wiper |
| 13 | Starter |
| 14 | Brake vacuum pump |
| 15 | Automatic headlamp leveling module |
| 16 | Front heated seat |
| 17 | Passenger window |
| 18 | Body control module 4 |
| 19 | SDM/AOS |
| 20 | OnStar/Navigation |
| 21 | Body control module 6 |
| 22 | ABS valve |
| 23 | - |
| 24 | - |
| 25 | Electric steering column lock |
| 26 | Body control module 2 |
| 27 | - |
| 28 | Body control module 3 |
| 29 | Body control module 8 |
| 30 | Windshield wiper |
| 31 | Right HID headlamp |
| 32 | Left HID headlamp |
| 33 | - |
| 34 | Horn |
| 35 | Automatic headlamp leveling motor |
| 36 | Left high-beam headlamp |
| 37 | Right high-beam headlamp |
| 38 | - |
| 39 | - |
| 40 | Rear electrical center/Ignition |
| 41 | Malfunction indicator lamp/ Ignition |
| 42 | HVAC/ISRVM/ OSRVM |
| 43 | Front exhaust valve active fuel management |
| 44 | - |
| 45 | Sunroof |
| 46 | Body control module 7 |
| 47 | CGM |
| 48 | A/C clutch |
| 49 | Heated steering wheel |
| 50 | Fuel system control module/Ignition |
| 51 | Rear exhaust valve PTSQ |
| 52 | - |
| 53 | - |
| 54 | Engine coolant pump |
| 55 | Fuel prime |
| 56 | - |
| 57 | Engine control module/Ignition |
| 58 | Transmission control module/ Ignition |
| 59 | - |
| 60 | Transmission control module battery |
| 61 | Non-walk/ Vehicle |
| 62 | Ignition coils–odd |
| 63 | Non-walk/O2 sensor |
| 64 | Ignition coils–even |
| 65 | - |
| 66 | Engine control module 1 |
| 67 | Engine control module 2 |
| 68 | Spare |
| 69 | Spare |
| 70 | Spare |
| 71 | Spare |
| 72 | Spare |
| 73 | Spare |
| 74 | Spare |
| 75 | Spare |
| 76 | Spare |
| 77 | Spare |
| K1 | - |
| K2 | Run/Crank relay |
| K3 | - |
| K4 | Vacuum pump relay |
| K5 | A/C control relay |
| K6 | Coolant pump relay |
| K7 | Engine control module relay |
| K8 | Fuel prime relay |
| K9 | - |
| K10 | Starter relay |
