Chevrolet Camaro 2022 Fuse Box

Chevrolet Camaro 2022 Fuse Box Info

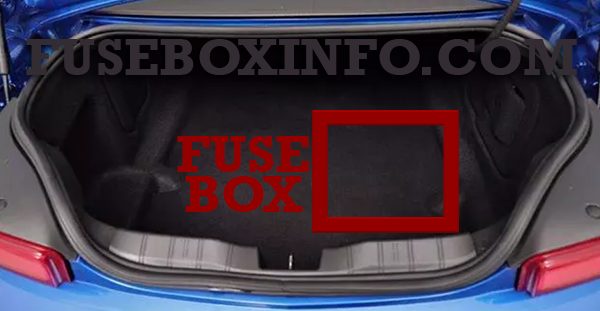

Luggage compartment fuse box location:

The rear compartment fuse box is on the right side under the trunk load floor.

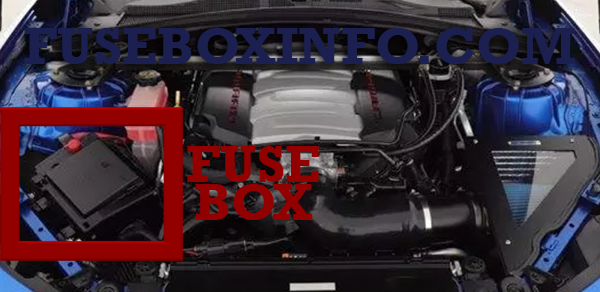

Engine compartment fuse box location:



Fuse Box Diagram | Layout



Luggage compartment fuse box:

Fuse/Relay N° Functions
1 Rear window defogger
2 Front blower
3 Electric parking brake
4 -
5 -
6 Rear drive control module
7 Right window
8 -
9 Left window
10 Heated mirror
11 -
12 Heated steering wheel
13 -
14 HVAC control
15 Spare
16 Display
17 Spare
18 -
19 Front ventilated seat
20 Spare
21 -
22 -
23 Body control module
24 -
25 -
26 -
27 RGB lights
28 Passive entry/ Passive start battery
29 Data link connector
30 Canister vent
31 Power fold top
32 Memory seat module
33 Wireless charger
34 Engine control module battery
35 Fuel system control module V6
36 -
37 Electric steering column lock
38 Outside rear view mirror/ Power window
39 Rear closure
40 -
41 Battery regulated voltage control
42 SADS
43 Rear drive control module/ICCM
44 Folding top solenoid
45 Amplifier
46 Fuel system control module V8
47 Shunt
48 -
49 Steering wheel
50 Front camera module
51 Camera module
52 Ultrasonic park aid
53 -
54 Side blind zone alert
55 Radio
56 -
57 -
K1 Rear window defogger
K2 Fuel system control module
CB1 -
CB2 Retained accessory power
CB3 -

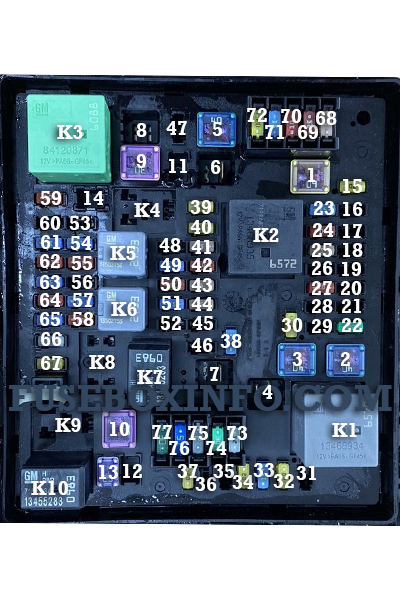

Engine compartment fuse box:

Fuse/Relay N° Functions
1 ABS pump
2 -
3 Driver power seat
4 Cooling fan
5 Passenger power seat
6 -
7 -
8 -
9 -
10 -
11 AUX DRL
12 Front wiper
13 Starter
14 Brake vacuum pump
15 Automatic headlamp leveling module
16 Front heated seat
17 Passenger window
18 Body control module 4
19 SDM/AOS
20 OnStar/Navigation
21 Body control module 6
22 ABS valve
23 -
24 -
25 Electric steering column lock
26 Body control module 2
27 -
28 Body control module 3
29 Body control module 8
30 Windshield wiper
31 Right HID headlamp
32 Left HID headlamp
33 -
34 Horn
35 Automatic headlamp leveling motor
36 Left high-beam headlamp
37 Right high-beam headlamp
38 -
39 -
40 Rear electrical center/Ignition
41 Malfunction indicator lamp/ Ignition
42 HVAC/ISRVM/ OSRVM
43 Front exhaust valve active fuel management
44 -
45 Sunroof
46 Body control module 7
47 CGM
48 A/C clutch
49 Heated steering wheel
50 Fuel system control module/Ignition
51 Rear exhaust valve PTSQ
52 -
53 -
54 Engine coolant pump
55 Fuel prime
56 -
57 Engine control module/Ignition
58 Transmission control module/ Ignition
59 -
60 Transmission control module battery
61 Non-walk/ Vehicle
62 Ignition coils–odd
63 Non-walk/O2 sensor
64 Ignition coils–even
65 -
66 Engine control module 1
67 Engine control module 2
68 Spare
69 Spare
70 Spare
71 Spare
72 Spare
73 Spare
74 Spare
75 Spare
76 Spare
77 Spare
K1 -
K2 Run/Crank relay
K3 -
K4 Vacuum pump relay
K5 A/C control relay
K6 Coolant pump relay
K7 Engine control module relay
K8 Fuel prime relay
K9 -
K10 Starter relay
