Chevrolet Camaro 2011 Fuse Box

Chevrolet Camaro 2011 Fuse Box Info



Fuse box location:

The instrument panel fuse box is on the end of the instrument panel, on the driver side of the vehicle.



Engine compartment fuse box:



Luggage compartment fuse box:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Functions
Mini Fuses
1 Discrete Logic Ignition Switch
2 Diagnostic Link Connector
3 Airbag
4 Cluster
5 Heating Ventilation Air Conditioning Controller
6 Body Control Module
8 Battery
9 Spare
10 Spare
11 Spare
12 Spare
13 Display
14 OnStar® Universal Hands‐Free Phone (If Equipped)
15 Body Control Module 3
16 Body Control Module 4
17 Power Outlet 1
18 Power Outlet 2
19 Steering Wheel Controls Backlight
20 Spare
21 Spare
23 Trunk
24 Automatic Occupant Sensing
25 Body Control Module 1
27 Body Control Module 8
28 Front Heater, Ventilation, and Air Conditioning
29 Body Control Module 5
30 Body Control Module 7
Circuit Breaker
CB7 Passenger Seat
CB26 Driver Seat
Relays
K10 Retained Accessory Power
K609 Trunk




Engine compartment fuse box:

Fuse/Relay N° Functions
Mini Fuses
1 Air Conditioning Compressor Clutch
2 Transmission Control Module
5 Engine Control Module Main
7 Pre-Catalytic Converter Oxygen Sensor
8 Post-Catalytic Converter Oxygen Sensor
9 Fuel Injectors – Even
10 Fuel Injectors – Odd
11 Cooling Fan Relay
14 Manifold Air Flow/Chassis Control
15 Ignition
16 Run/Crank IP
17 Sensing Diagnostic Module/Ignition
18 Run/Crank Body
19 Transmission Control Module/ Ignition
20 Engine Control Module/Ignition
31 Outside Rear View Mirror
32 Canister Vent Solenoid
33 Body Control Module #6
34 Sunroof
35 Front Heated Seats
38 Washer Pump Front
40 Antilock Brake System Valves
46 HID Headlamp – Left Front
47 HID Headlamp – Right Front
50 Fog Lamps
51 Horn
52 Spare
55 High Beam Headlamp – Right Front
56 High Beam Headlamp – Left Front
61 Heated Mirror
J-Case Fuses
6 Wiper
12 Starter
22 Brake Vacuum Pump
25 Power Windows Rear
26 Power Windows Front
27 Rear Defog
41 Cooling Fan High
43 Antilock Brake System Pump
44 Cooling Fan Low
Mini Relays
K26 Powertrain
K50 Run / Crank
K55 Rear Defog
K612 Cooling Fan High
K614 Cooling Fan Control
Micro Relays
K61 Starter
K69 Wiper Control
K613 Cooling Fan Low
K617 Air Conditioning Compressor Clutch
K619 Wiper Speed
K627 High Intensity Discharge Headlamps
K632 Brake Vacuum Pump

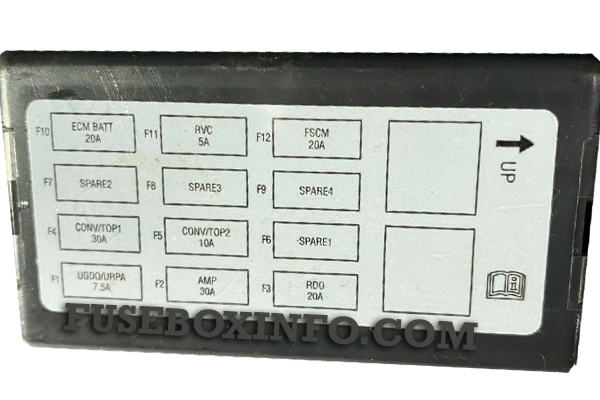

Luggage compartment fuse box:

Fuse/Relay N° Functions
Mini Fuses
1 Universal Garage Door Opener/ Ultrasonic Reverse Parking Aid
2 Amplifier
3 Radio
4 Convertible Top 1
5 Convertible Top 2
6 Spare 1
7 Spare 2
8 Spare 3
9 Spare 4
10 Engine Control Module/Battery
11 Regulated Voltage Control
12 Fuel System Control Module
