Chevrolet Equinox 2010 Fuse Box Info
Fuse box location:
The instrument panel fuse box is located on the passenger side panel of the center console.

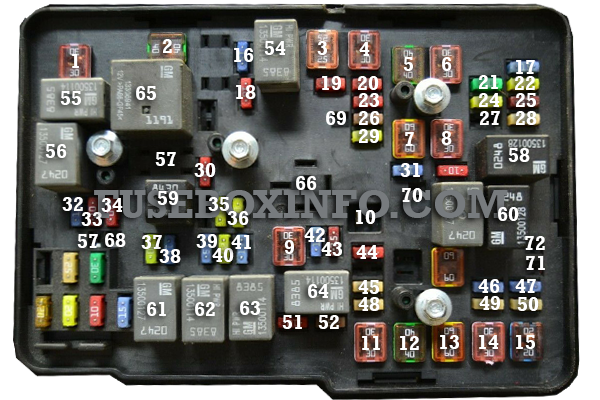

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
Fuse/Relay N° | Functions |
1 | Steering Wheel DM |
2 | Spare |
3 | Spare |
4 | Body Control Module 1 |
5 | Infotainment |
6 | Body Control Module 7 |
7 | Noise Control Module |
8 | Body Control Module 4 |
9 | Radio |
10 | SEO Battery |
11 | Ultrasonic Rear Parking Aid Module |
12 | Heater, Ventilation and Air Conditioning Battery |
13 | Auxiliary Power Front |
14 | Heater, Ventilation and Air Conditioning Ignition |
15 | Display |
16 | Body Control Module 5 |
17 | Auxiliary Power Rear |
18 | Instrument Panel Cluster Ignition |
19 | PDI Module |
20 | Body Control Module 6 |
21 | SEO Retained Accessory Power |
22 | SDM Ignition |
23 | Spare |
24 | Spare |
25 | PRNDL |
26 | Spare |
27 | Spare |
28 | Spare |
29 | Front Blower Motor |
30 | Body Control Module 3 |
31 | Amplifier |
32 | Discrete Logic Ignition Switch |
33 | Communications Integration Module |
34 | Body Control Module 2 |
35 | SDM Battery |
36 | Data Link Connection |
37 | Instrument Panel Cluster Battery |
38 | IOS Module (Passenger Sensing System) |
39 | Spare |
40 | Body Control Module 8 |
41 | LOG Relay |
42 | Retained Accessory Power Relay |
Engine compartment fuse box:
Fuse/Relay N° | Functions |
1 | Cooling Fan 1 |
2 | Cooling Fan 2 |
3 | Rear Defog |
4 | Power Windows – Right |
5 | Memory Seat Module |
6 | Power Seat – Left |
7 | Instrument Panel Fuse Block 1 |
8 | Instrument Panel Fuse Block 2 |
9 | Starter |
10 | Brake Booster |
11 | Sunroof |
12 | Antilock Brake System Pump |
13 | Instrument Panel Fuse Block 3 |
14 | Power Windows – Left |
15 | Antilock Brake System Module |
16 | Transmission Control Module Battery |
17 | Trailer Parking Light |
18 | Engine Control Module Battery |
19 | Heated Mirror |
20 | Trailer Left |
21 | Lift Gate Module |
22 | Power Lumbar |
23 | Trailer Right |
24 | Canister Vent |
25 | Memory Mirror Module |
26 | Regulated Voltage Control Battery Sensor |
27 | Rear Accessory Power Outlet |
28 | Wiper |
29 | Rear Wiper |
30 | Air Conditioning Compressor |
31 | Rear Latch |
32 | Horn |
33 | Right High‐Beam Headlamp |
34 | Left High‐Beam Headlamp |
35 | Ignition Even Coil |
36 | Ignition Odd Coil |
37 | Windshield Washer |
38 | Front Fog Lamps |
39 | Post Catalytic Converter Oxygen Sensor |
40 | Engine Control Module |
41 | Pre–Catalytic Converter Oxygen Sensor |
42 | Transmission Control Module |
43 | Mirror |
44 | Chassis Control Module Ignition |
45 | Spare |
46 | Rear Drive Module |
47 | Lift Gate Module Logic |
48 | Instrument Panel Fuse Block Ignition |
49 | Heated Seat – Front |
50 | Chassis Control Module |
51 | Engine Control Module |
52 | Rear Vision Camera |
53 | Electric Power Steering |
54 | Rear Defogger |
55 | Cooling Fan Low |
56 | Head Lamp High Beam |
57 | Cooling Fan Control |
58 | Wiper On/Off Control |
59 | Air Conditioning Compressor |
60 | Wiper Speed |
61 | Fog Lamp |
62 | Engine Control |
63 | Starter |
64 | Run/Crank |
65 | Cooling Fan High |
66 | Brake Booster |
