Chevrolet Equinox 2017 Fuse Box Info
Fuse box location:
The instrument panel fuse box is located on the passenger side panel of the center console.

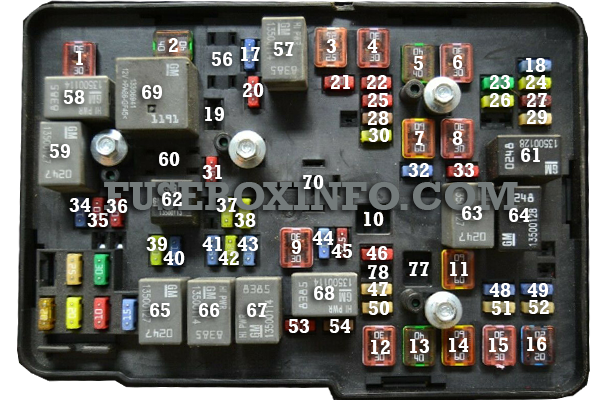

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Steering Wheel Dimming |
| 2 | - |
| 3 | - |
| 4 | Body Control Module 1 |
| 5 | Infotainment |
| 6 | Body Control Module 7 |
| 7 | Noise Control Module |
| 8 | Body Control Module 4 |
| 9 | Radio |
| 10 | - |
| 11 | Rear Parking Assist Module |
| 12 | HVAC/Battery |
| 13 | Front auxiliary power |
| 14 | HVAC/Ignition |
| 15 | Display |
| 16 | Body Control Module 5 |
| 17 | Rear auxiliary power |
| 18 | Instrument Panel Ignition |
| 19 | Universal Garage Door Opener |
| 20 | Body Control Module 6 |
| 21 | - |
| 22 | Sensing and Diagnostic Module Ignition |
| 23 | Front Camera |
| 24 | - |
| 25 | Transmission Gear Shift Position Indicator |
| 26 | - |
| 27 | - |
| 28 | - |
| 29 | Front Blower Motor |
| 30 | Body Control Module 3 |
| 31 | Amplifier |
| 32 | Discrete Logic Ignition Switch |
| 33 | Communications Integration Module |
| 34 | Body Control Module 2 |
| 35 | Sensing and Diagnostic Module Battery |
| 36 | Data Link Connection |
| 37 | Instrument Panel Battery |
| 38 | Passenger Sensing System Module |
| 39 | - |
| 40 | Body Control Module 8 |
| 41 | Logistic Relay (If Equipped) |
| 42 | Retained Accessory Power Relay |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Cooling Fan 1 |
| 2 | Cooling Fan 2 |
| 3 | Brake Booster |
| 4 | Right power windows |
| 5 | Memory Seat Module |
| 6 | Left power seat |
| 7 | Instrument Panel Fuse Block 1 |
| 8 | Rear Defogger |
| 9 | Starter |
| 10 | AIR Pump Motor |
| 11 | Instrument Panel Fuse Block 2 |
| 12 | Sunroof |
| 13 | ABS Pump |
| 14 | Instrument Panel Fuse Block 3 |
| 15 | Left power windows |
| 16 | ABS Module |
| 17 | Transmission Control Module Battery |
| 18 | Trailer Parking Light |
| 19 | AIR Pump Solenoid |
| 20 | Engine Control Module Battery |
| 21 | Canister Vent |
| 22 | Left trailer side (if equipped) |
| 23 | Liftgate Module |
| 24 | Power Lumbar |
| 25 | Right trailer side (if equipped) |
| 26 | Rear Accessory Power Outlet |
| 27 | Memory Mirror Module |
| 28 | Regulated Voltage Control Battery Sensor |
| 29 | Front Wiper |
| 30 | Rear Wiper |
| 31 | A/C |
| 32 | Rear Latch |
| 33 | Heated Mirrors |
| 34 | Horn |
| 35 | Right High‐Beam Headlamp |
| 36 | Left High‐Beam Headlamp |
| 37 | Ignition coil – even |
| 38 | Ignition coil – odd |
| 39 | Windshield Washer |
| 40 | Front fog lamps (if equipped) |
| 41 | Post catalytic converter O2 sensor |
| 42 | Engine Control Module |
| 43 | Pre-catalytic converter O2 sensor |
| 44 | Transmission Control Module |
| 45 | Mirror |
| 46 | Fuel System Control Module Ignition |
| 47 | - |
| 48 | Rear Drive Module |
| 49 | Lift Gate Module Logic |
| 50 | Instrument Panel Fuse Block Ignition |
| 51 | Front heated seat |
| 52 | Fuel System Control Module |
| 53 | Engine Control Module |
| 54 | Rear Vision Camera |
| 55 | Electric Power Steering |
| 56 | AIR Pump Solenoid |
| 57 | Brake Booster |
| 58 | Cooling Fan Low |
| 59 | High-beam headlamps |
| 60 | Cooling Fan Control |
| 61 | Wiper On/Off Control |
| 62 | A/C |
| 63 | Rear Defogger |
| 64 | Wiper Speed |
| 65 | Fog Lamp |
| 66 | Engine Control |
| 67 | Starter |
| 68 | Run/Crank |
| 69 | Cooling fan – high |
| 70 | AIR Pump Motor |
| 77 | Right power seat |
| 78 | Passenger Power Lumber |
