Chevrolet Equinox EV 2025 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is located to the right of the glove box.
Engine compartment fuse box location:
Fuse Box Diagram | Layout

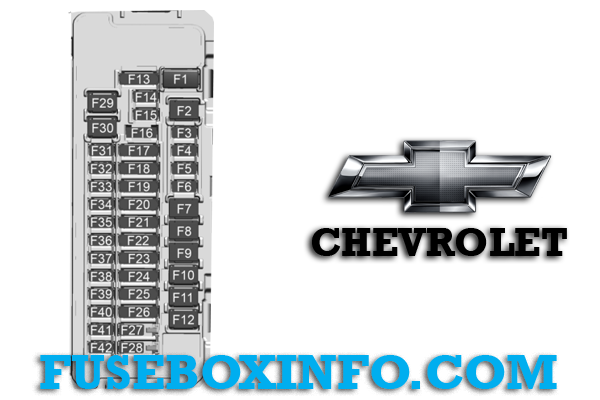

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | - |
| 2 | APO/CIGAR LTR – Auxiliary Power Outlet Instrument Panel/Cigar Lighter |
| 3 | - |
| 4 | USB PORT/APO AC 150W – Universal Serial Bus Port/Auxiliary Power Outlet Alternating Current 150W |
| 5 | STRG COL LOCK – RUN/ CRANK Steering Column Lock |
| 6 | ELM 1– Exterior Lighting Module |
| 7 | - |
| 8 | RT DR LATCH – Right Door Latch |
| 9 | LT DR LATCH – Left Door Latch |
| 10 | - |
| 11 | - |
| 12 | - |
| 13 | – ECP_E/VICM – Electrification Control Processor Vehicle Integration Control Module |
| 14 | HEADLAMPS – RUN/ CRANK Headlamps |
| 15 | HDLP RT –Headlamp Right |
| 16 | STRG COL/CLOCK SPRING – Steering Column Lock/Clock Spring |
| 17 | SEAT FAN PASS & SEAT FAN DRVR – RUN/CRANK Seat Fan Passenger and Seat Fan Driver |
| 18 | VCD/IPD & SRR – Virtual Cockpit Display/DISPLAY – Instrument Panel and Short Range Radar |
| 19 | RLAD/IPMS/ETC & EBCM/SDM/ELM/ISRVM/AQS – RUN/CRANK Reflective Light Auxiliary Display/Interior Particulate Matter Sensor/Electronic Toll Collection and Electronic Brake Control Module/Sensing and Diagnostic Module/Exterior Lighting Module/Inside Rear View Mirror/Air Quality Sensor |
| 20 | BCM 1 & VICM – Body Control Module 1 and Vehicle Integration Control Module |
| 21 | HVSL & EPBS/ESM – High Voltage System Lockout and Electronic Park Brake Switch/Electronic Transmission Range Select Shifter Module |
| 22 | VKM/VKMB/AUX JACK & ACP3 – Virtual Key Module/Virtual Key Backup Module/Auxiliary Jack and ADAS Compute Platform 3 |
| 23 | T/LAMP RT & T/LAMP LT – Tail Lamp Right and Tail Lamp Left |
| 24 | PAM/SBZA & HUD/HVAC DISP – Park Assist Module/Side Blind Zone Alert and Head-up Display/Heating, Ventilation and Air Conditioning Display |
| 25 | ACP 2/FCM & CGM/DLC/VDM – ADAS Compute Platform 2/Front Camera Module and Central Gateway Module/Diagnostic Link Connector/Vehicle Data Monitor |
| 26 | ECP_E_BATT 1/ACEC & SDM/AOS – Electrification Control Processor Battery 1/Air Condition Electric Compressor and Sensing and Diagnostic Module/ Automatic Occupant Sensing Module |
| 27 | BCM 3 – Body Control Module 3 |
| 28 | BCM 2 – Body Control Module 2 |
| 29 | Amplifier |
| 30 | BCM 4 – Body Control Module 4 |
| 31 | VPM/SD CARD/ILSS/OHC – Video Processing Module/SD Card/Indicator Light and Solar Sensor/Over Head Console |
| 32 | HSWM – Heated Steering Wheel Module |
| 33 | Door Handle Actuator |
| 34 | ELM 2 – Exterior Lighting Module 2 |
| 35 | HDLP LT – Headlamp Left |
| 36 | VCU BATT 1 – Virtual Cockpit Unit Battery |
| 37 | TCP (OnStar) – Telematics Communication Platform |
| 38 | WCM – Wireless Charger Module |
| 39 | Column Lock |
| 40 | VCU Batt 2 – Virtual Cockpit Unit Battery 2 |
| 41 | ELM 6 – Exterior Lighting Module 6 |
| 42 | - |

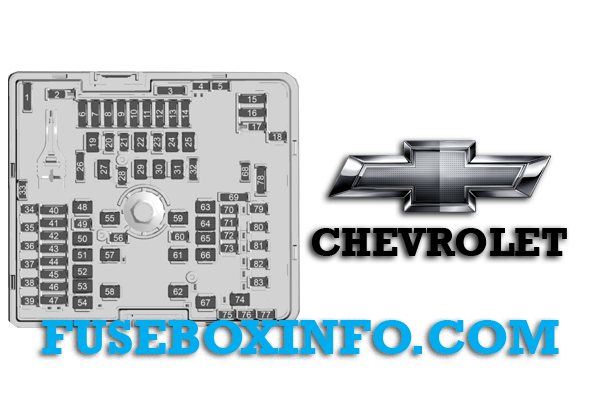

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Spare |
| 2 | - |
| 3 | Spare |
| 4 | Spare |
| 5 | Spare |
| 6 |
- MSM/MSB – Memory Seat Module/Memory Seat Bolster |
| 7 | - |
| 8 | - |
| 9 | MCV & OBCM 2 – Motor Coolant Valve and Onboard Charging Module 2 |
| 10 | - |
| 11 | - |
| 12 | - |
| 13 | ESSCP & PECP-Dual Loop – Motor: Energy Storage System Cool Pump and Power Electronics Coolant Pump Dual Loop |
| 14 | - |
| 15 | - |
| 16 | - |
| 17 | Seat HTD Switch Row 2 – Heated Seat Row 2 |
| 18 | - |
| 19 | - |
| 20 | - |
| 21 | - |
| 22 | - |
| 23 | - |
| 24 | - |
| 25 | - |
| 26 | Spare |
| 27 | - |
| 28 | - |
| 29 | - |
| 30 | Rear Cargo APO – Rear Cargo Auxiliary Power Outlet |
| 31 | - |
| 32 | Spare |
| 33 | Spare |
| 34 | ELM 5 – Exterior Lighting Module 5 |
| 35 | ELM 4 – Exterior Lighting Module 4 |
| 36 | - |
| 37 | Rear Wiper |
| 38 | ELM 7 – Exterior Lighting Module 7 |
| 39 | ELM 3 – Exterior Lighting Module 3 |
| 40 | DSP-CO-DRIVER & DSP-DRIVER – Door Switch Panel Front Passenger and Driver |
| 41 | DSP-CO-DRIVER & DSP-DRIVER – Door Switch Panel Front Passenger and Driver |
| 42 | Seat Position Switch & VKM Sensor/RLH Sensor Position Switch and Virtual Key Module Sensor/Rain Light Humidity Sensor |
| 43 | CODR_LMBR & DR_LMBR – Front Passenger and Driver Lumbar |
| 44 | PFA Module & Aero Shut – Power Sounder Module and Aero Shutter |
| 45 | – RFA – Remote Function Actuator Module |
| 46 | ECFV/CHFV/IRM & PEEV/PCEV – Motor: External Condenser Flow Valve/Condensing Heater Flow Valve/Integrated Refrigerant Module and Motor: Primary Evaporator Expansion Valve/Primary Chiller Expansion Valve |
| 47 | Lit Grill & LRR-Front – Lit Grill and Long Range Radar – Front |
| 48 | Power Tailgate |
| 49 | - |
| 50 | MTR WDW LIFTER LT – Motor Window Lifter Left |
| 51 | - |
| 52 | MTR WDW LIFTER RT – Motor Window Lifter Right |
| 53 | Front Wiper Driver |
| 54 | - |
| 55 | - |
| 56 | - |
| 57 | EBOOST – Electronic Brake Control Module |
| 58 | Front_HVAC_Blower_MTR – Front Heating, Ventilation, Air Conditioning Blower Motor |
| 59 | Front Wiper Co-Driver – Front Wiper Passenger |
| 60 | Horn |
| 61 | Rear Defog |
| 62 | - |
| 63 | Motor Sunroof/Sunshade – Motor Sunroof |
| 64 | Power Seat Driver |
| 65 | Power Seat Co-Driver – Power Seat Passenger |
| 66 | CRFM – Condenser Radiator Fan Module |
| 67 | HTD WPR – Heated Wiper |
| 68 | Spare |
| 69 | Spare |
| 70 | Relay Coil |
| 71 | Rear Heated Seat 2 |
| 72 | Front Heated Seat 1 |
| 73 | Trailer Park Lamps |
| 74 | - |
| 75 | Spare |
| 76 | Spare |
| 77 | Spare |
| 78 | TRLR ST/TRN LT & TRLR ST/TRN RT – Trailer Stop Turn Left and Trailer Stop Turn Right |
| 79 | Rear Heated Seat 1 |
| 80 | Front Heated Seat 2 |
| 81 | - |
| 82 | Wash Pump FRT_RR_MTR_CTRL – Wash Pump Front/Rear Motor Control |
| 83 | Rear Wiper MTR CTRL – Rear Wiper Motor Control |
