Chevrolet Malibu 2024 Fuse Box Info

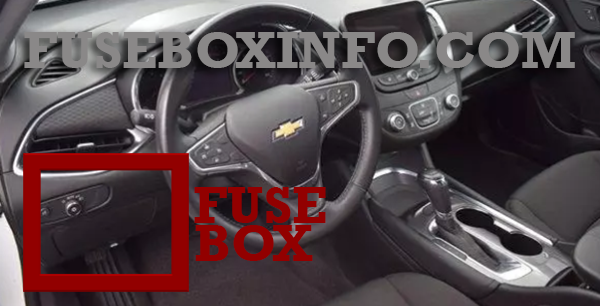

Passenger compartment fuse box location:
The instrument panel fuse box is on the driver side of the instrument panel.

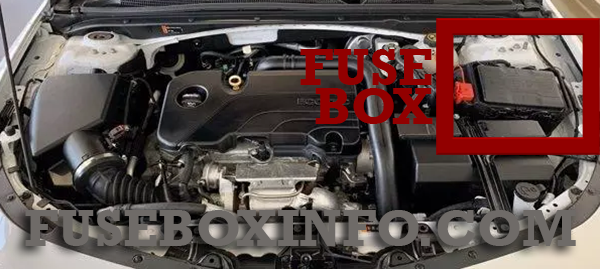

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Left power windows |
| 2 | Right power windows |
| 3 | - |
| 4 | Heating, ventilation, and air conditioning blower |
| 5 | Body control module 2 (without Stop/Start option) |
| 6 | - |
| 7 | - |
| 8 | Body control module 3 |
| 9 | - |
| 10 | Body control module 2 (with Stop/Start option) |
| 11 | - |
| 12 | - |
| 13 | - |
| 14 | - |
| 15 | Transmission control module (with Stop/ Start option) |
| 16 | Amplifier |
| 17 | Seat power lumbar |
| 18 | - |
| 19 | - |
| 20 | Body control module 1 (without Stop/Start option) |
| 21 | Body control module 4 |
| 22 | - |
| 23 | Electric steering column lock |
| 24 | Sensing and diagnostic module/Automatic occupant sensing (Airbag) |
| 25 | Data link connector |
| 26 | - |
| 27 | AC DC inverter |
| 28 | - |
| 29 | Body control module 8 |
| 30 | Overhead console |
| 31 | Steering wheel controls |
| 32 | - |
| 33 | Heating, ventilation, and air conditioning |
| 34 | Central gateway module |
| 35 | - |
| 36 | Wireless charger/USB charger |
| 37 | - |
| 38 | OnStar |
| 39 | Display |
| 40 | Obstacle detection |
| 41 | Body control module 1 (with Stop/Start option) |
| 42 | Radio |
| 43 | - |
| 44 | Console accessory power outlet – rear |
| Relays | |
| K1 | - |
| K2 | Interruptible retained accessory power |
| K3 | - |
| K4 | - |
| K5 | - |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | - |
| 2 | - |
| 3 | Antilock brake system pump/Electric brake booster |
| 5 | - |
| 6 | Rear closure |
| 7 | - |
| 8 | Memory seat module |
| 9 | - |
| 10 | - |
| 11 | DC DC converter 1 |
| 12 | Rear window defogger |
| 13 | Heated mirrors |
| 14 | - |
| 15 | Passive entry/Passive start |
| 16 | Front wiper |
| 17 | Passenger power seat |
| 18 | Antilock brake system valve |
| 19 | Driver power seat |
| 21 | Sunroof |
| 22 | Parking lamp |
| 23 | Automatic headlamp leveling/Adaptive forward lighting |
| 24 | - |
| 26 | Transmission control module/Ignition |
| 27 | Instrument panel/ Body/Ignition |
| 28 | - |
| 29 | Rear vision camera/ Ventilated seats |
| 30 | Malfunction indicator lamp/Ignition |
| 32 | Canister vent solenoid/Evap leak check module |
| 33 | Front heated seat |
| 34 | - |
| 35 | Body control module 6/Body control module 7 |
| 36 | Fuel module |
| 38 | - |
| 39 | - |
| 40 | Steering column lock |
| 41 | - |
| 43 | Heated steering wheel |
| 44 | Headlamp leveling |
| 45 | - |
| 46 | Engine control module/Ignition |
| 47 | - |
| 48 | - |
| 49 | DC DC converter 2 |
| 50 | - |
| 51 | - |
| 52 | - |
| 53 | - |
| 54 | - |
| 55 | - |
| 56 | Starter motor |
| 57 | - |
| 58 | - |
| 59 | High-beam headlamps Left/Right |
| 60 | Cooling fan |
| 61 | - |
| 62 | - |
| 63 | - |
| 65 | Air conditioning |
| 67 | - |
| 68 | - |
| 69 | - |
| 70 | - |
| 72 | Starter pinion |
| 74 | - |
| 75 | Engine control module main |
| 76 | Engine control module sense |
| 78 | Horn |
| 79 | Washer pump |
| 81 | Transmission control module/Engine control module |
| 82 | - |
| 83 | Ignition coil |
| 84 | Powertrain on engine |
| 85 | Shunt |
| 86 | Shunt |
| 87 | - |
| 88 | Aeroshutter |
| 89 | - |
| 91 | - |
| 92 | - |
| 93 | Active headlamp leveling |
| 95 | - |
| 96 | - |
| 97 | - |
| 99 | Coolant pump |
| Relays | |
| 4 | - |
| 20 | Rear window defogger |
| 25 | Front wiper control |
| 31 | Run/Crank |
| 37 | Front wiper speed |
| 42 | - |
| 64 | Starter motor |
| 66 | Powertrain |
| 71 | - |
| 73 | Air conditioning |
| 80 | Starter pinion |
| 90 | - |
| 94 | - |
| 98 | - |
