Chevrolet Corvette 2024 Fuse Box Info

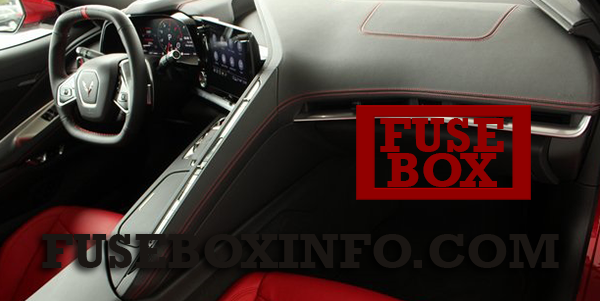

Instrument panel fuse box location:
The instrument panel fuse box is behind the glove box.

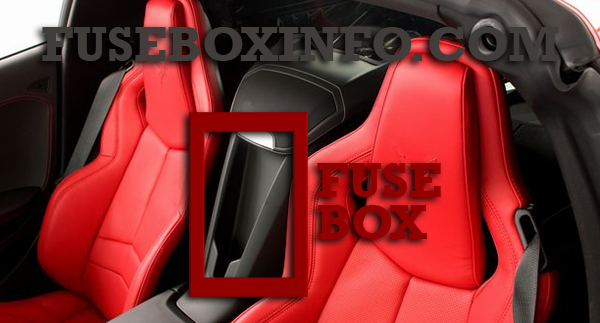

Rear compartment fuse box location:
The rear compartment fuse box is in the rear of the vehicle in between the seats.
Fuse Box Diagram | Layout
Instrument panel fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | - |
| 2 | Front wiper |
| 3 | Cooling fan 1 |
| 4 | - |
| 5 | Cooling fan 2 |
| 6 | Front blower |
| 7 | Automatic level control |
| 8 | Shifter interface board module |
| 9 | Display IP cluster/ HVAC/Center stack module |
| 10 | Traction Power Inverter Module Battery 1 |
| 11 | USB |
| 12 | Traction Power Inverter Module Battery 2 |
| 13 | Transmission Oil Pump Motor |
| 14 | Glove box |
| 15 | - |
| 16 | - Electrical Park Brake/Automatic Occupant Sensing (E-Ray) |
| 17 | Remote function actuator |
| 18 | Front trunk release |
| 19 | Intelligent battery sensor |
| 20 | Exterior lighting module 1 |
| 21 | Exterior lighting module 3 |
| 22 | Exterior lighting module 4 |
| 23 | Body control module 2 |
| 24 | Exterior lighting module 6 |
| 25 | Amplifier |
| 26 | Automatic occupant sensing/Electric park brake |
| 27 | Video processing module |
| 28 | Right headlamp |
| 29 | Clutch actuator |
| 30 | Sensing and diagnostic module/ Automatic occupant sensing |
| 31 | Body control module 1 |
| 32 | Driver Monitor System |
| 33 | Data link connection/ Wireless charging module |
| 34 | Telematics/Head up display |
| 35 | Horn |
| 36 | - Shift Interface Board (E-Ray) |
| 37 | - Body Control Module 1 (E-Ray) |
| 38 | Front wash pump |
| 39 | Rear auxiliary power outlet |
| 40 | Performance data recorder/Center stack module |
| 41 | Integrated Chassis Control Module |
| 42 | Theft deterrent |
| 43 | Left headlamp |
| 44 | Exterior lighting module 2 |
| 45 | Power steering column module |
| 46 | Body control module 3 |
| 47 | Exterior lighting module 5 |
| 48 | Exterior lighting module 7 |
| 49 | Body control module 4 |
| 50 | Front auxiliary power outlet |
| 51 | - |
| 52 | Steering wheel control switch |
| 53 | Heated steering wheel |
| 54 | - Steering Wheel (E-Ray) |
| Relays | |
| 1 | - |
| 2 | Glove box relay |
| 3 | Horn relay |
| 4 | Front wash relay |
| 5 | Retained accessory power/Accessory relay |
| 6 | Front trunk release relay 1 |
| 7 | - |
| 8 | - |
| 9 | Front trunk release relay 2 |
| 10 | Wiper relay |
Rear compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Driver memory seat module/Power seat |
| 2 | Driver heated seat |
| 3 | Passenger memory seat module/ Power seat |
| 4 | Passenger heated seat |
| 5 | Transmission control module |
| 6 | - |
| 7 | Power sounder module/Pedestrian friendly alert function |
| 8 | Side blind zone alert/ Rear park assist |
| 9 | - |
| 10 | Engine control module/Air conditioning |
| 11 | Fuel Tank Zone Module 2 |
| 12 | Lithium ion battery module |
| 13 | Active fuel management |
| 14 | Seat fan |
| 15 | Integrated Chassis Control Module/Traction Power Inverter Module |
| 16 | Exterior lighting module |
| 17 | Instrument panel cluster/Shifter interface board/Transmission control module/ Electronic brake control module |
| 18 | Engine control module |
| 19 | - |
| 20 | Sensing and diagnostic module/ Inside rear view mirror |
| 21 | Exhaust valve solenoid |
| 22 | Fuel pump/Fuel tank zone module |
| 23 | Tonneau left |
| 24 | Tonneau right |
| 25 | Convertible top right |
| 26 | Convertible top left |
| 27 | Electronic suspension control |
| 28 | Scavenge Coolant Pump Motor |
| 29 | CGM |
| 30 | O2 sensor |
| 31 | O2 sensor/Engine oil/Canister purge/ Active fuel management |
| 32 | Ignition even |
| 33 | Ignition odd |
| 34 | Engine control module 1 |
| 35 | Engine control module/ Mass air flow Sensor/ O2 sensor/Air conditioning |
| 36 | Power Front Closure Module/Front Camera Module |
| 37 | Canister vent |
| 38 | Latch control module |
| 39 | Right window switch/Door lock |
| 40 | Left window switch/ Door lock |
| 41 | Pedestrian Friendly Alert Module/High Voltage System Lock Out Switch |
| 42 | Engine control module 2 |
| 43 | Charged Air Cooler |
| 44 | Air conditioning clutch |
| 45 | Transmission Control Module |
| 46 | - |
| 47 | DC/DC Battery 1 |
| 48 | DC/DC Battery 2 |
| 49 | Auxiliary cooling fan right |
| 50 | Virtual Key Back up Module |
| 51 | Starter Pinion |
| 52 | Auxiliary Pump |
| 53 | Starter solenoid |
| 54 | Auxiliary cooling fan left |
| 55 | Automatic leveling control |
| 56 | Energy Storage Coolant Pump/Power Electronics Coolant Pump |
| 57 | Rear window defogger |
| 58 | - |
| 59 | Left/right window |
| 60 | Passenger power seat |
| 61 | Driver power seat |
| Relays | |
| 1 | Starter pinion relay |
| 2 | Powertrain relay |
| 3 | Run/crank relay |
| 4 | Rear defogger relay |
| 5 | Air conditioning clutch relay |
| 6 | - |
| 7 | - |
| 8 | - |
| 9 | - |
| 10 | - |
| 11 | - |
| 12 | - |
| 13 | - |
| 14 | Starter solenoid relay |
| 15 | Fuel tank zone module relay |
