Chevrolet Malibu 1998 Fuse Box Info
Passenger compartment fuse box location:

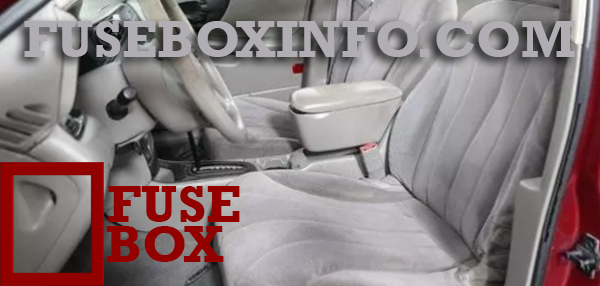

The left instrument panel fuse box is located on the driver side edge of the instrument panel.
The right instrument panel fuse box is located on the passenger side edge of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Left):
| Fuse/Relay | Functions |
| A | Radio |
| B | Wipers |
| C | Trunk Release and Remote Lock Control |
| D | Turn Signals |
| E | Power Mirrors |
| F | Air Bag |
| G | Body Function Control Module |
| H | Powertrain Control Module |
| J | Door Locks |
| K | Body Function Control Module, Cluster |
| STOP LPS | Stoplamps |
| HAZARD LPS | Hazard Lamps |
| IPC/HVAC BATT | Cluster, Climate Control |
| MICRO RELAY TRUNK REL | Remote Trunk Release |
| CIRCUIT BRKR PWR SEATS | Power Seats |
| MICRO RELAY DR UNLOCK | Door Locks |
| MICRO RELAY DR LOCK | Door Locks |
| MICRO RELAY DRIVERS DR UNLOCK | Not Used |
Passenger compartment fuse box (Right):
| Fuse/Relay | Functions |
| A | Instrument Panel Lights, Dimmer |
| B | Cruise Control |
| C | Climate Control System |
| D | Cruise Control |
| E | Fog Lamps |
| F | Interior Lamps, Body Function Control Module |
| G | Radio |
| H | Sunroof |
| CIRCUIT BRKR PWR WNDWS | Power Windows |
| MICRO RELAY FOG LPS | Fog Lamps |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Maxi Fuses | |
| 1 | Ignition Switch |
| 2 | Left-Hand Electrical Center-Power Seats, Power Mirrors, Door Locks, Trunk Release and Remote Lock Control |
| 3 | Left-Hand Electrical Center-Stoplamps, Hazard Lamps, Body Function Control Module, Cluster, Climate Control System |
| 4 | Right-Hand Electrical Center-Fog Lamps, Radio, Body Function Control Module, Interior Lamps |
| 5 | Ignition Switch |
| 6 | Not Used |
| 7 | Anti-Lock Brakes |
| 8 | Cooling Fans |
| Mini Relays | |
| 9 | Rear Defog |
| 10 | Not Used |
| 11 | Anti-Lock Brakes |
| 12 | Cooling Fan |
| 13 | HVAC Blower (Climate Control) |
| 14 | Cooling Fans |
| 15 | Cooling Fans |
| Micro Relays | |
| 16 | Air Conditioning Compressor |
| 17 | Not Used |
| 18 | Fuel Pump |
| 19 | Automatic Light Control |
| 20 | Automatic Light Control |
| 21 | Horn |
| 22 | Daytime Running Lamps |
| Mini Fuses | |
| 23-32 | Spare Fuse Holder |
| 33 | Rear Defog |
| 34 | Accessory Power Outlets, Cigar Lighter |
| 35 | Anti-Lock Brakes |
| 36 | Anti-Lock Brakes |
| 37 | Air Conditioning Compressor, Body Function Control Module |
| 38 | Automatic Transaxle |
| 39 | Powertrain Control Module, Ignition |
| 40 | Anti-Lock Brakes |
| 41 | Ignition System |
| 42 | Back-Up Lamps, Brake Transaxle Shift Interlock |
| 43 | Horn |
| 44 | Powertrain Control Module |
| 45 | Parking Lamps |
| 46 | Rear Defog, Daytime Running Lamps, Climate Control System |
| 47 | Canister Purge Valve, Powertrain Control Module, Exhaust Gas Recirculation, Heated O2 Sensor |
| 48 | Fuel Pump, Injectors |
| 49 | Generator |
| 50 | Right-Hand Headlamp |
| 51 | Left-Hand Headlamp |
| 52 | Cooling Fan |
| 53 | HVAC Blower (Climate Control ) |
| 54 | Fuse Puller for Mini-Fuses |
| 55 | Tach Test Point for Diagnostic Testing |
