Chevrolet Malibu 2004 Fuse Box Info

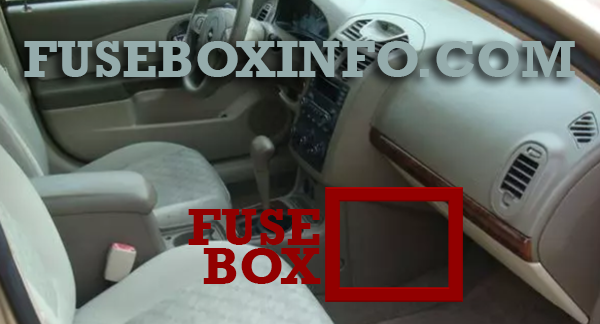

Passenger compartment fuse box location:
The instrument panel fuse box is located at on the lower front side of the console, on the passenger side of the vehicle.

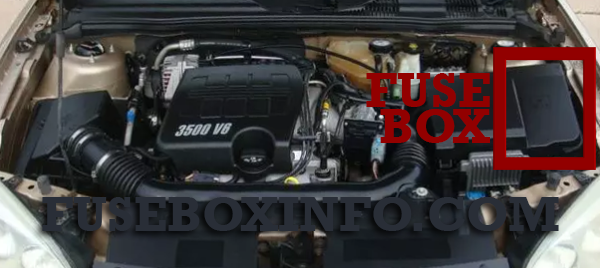

Engine compartment fuse box location:

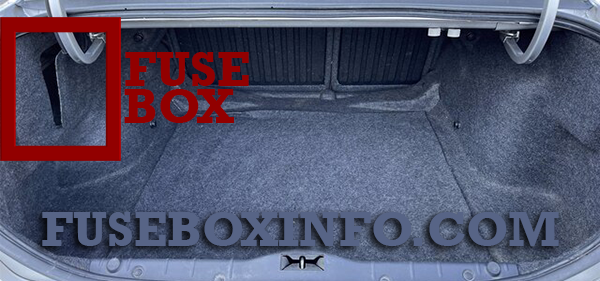

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay | Functions |
| POWER MIRRORS | Power Mirrors |
| EPS | Electric Power Steering |
| RUN/CRANK | Cruise Control, Electronic Range Select |
| HVAC BLOWER HIGH (Relay) | Climate Control System |
| CLUSTER/THEFT | Instrument Panel Cluster, Theft Deterrent System |
| ONSTAR® | OnStar® System |
| NOT INSTALLED | Not Used |
| AIRBAG (IGN) | Airbag System |
| HVAC CTRL (BATT) | Climate Control System |
| PEDAL | Adjustable Throttle and Brake Pedal |
| WIPER SW | Windshield Wiper/Washer Switch |
| IGN SENSOR | Ignition Switch |
| NOT INSTALLED | Not Used |
| NOT INSTALLED | Not Used |
| RADIO | Audio System |
| INTERIOR LIGHTS | Overhead Lighting, Trunk/Cargo Lighting |
| NOT INSTALLED | Not Used |
| HVAC CTRL (IGN) | Climate Control System |
| HVAC BLOWER | Climate Control System |
| DOOR LOCK | Automatic Door Lock System |
| ROOF/HEAT SEAT | Sunroof, Heated Seats, Automatic Dimming Rearview Mirror |
| POWER WINDOWS | Power Window Switch |
| NOT INSTALLED | Not Used |
| NOT INSTALLED | Not Used |
| AIRBAG (BATT) | Airbag System |
| FUSE PULLER | Fuse Puller |
| SPARE FUSE HOLDER | Spare |
| SPARE FUSE HOLDER | Spare |
| SPARE FUSE HOLDER | Spare |
| SPARE FUSE HOLDER | Spare |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | A/C CLU |
| 2 | Electronic Throttle Control |
| 3 | Ignition Module |
| 4 | Transmission |
| 5 | Fuel Injectors |
| 6 | EMISSION 1 |
| 7 | Left Headlamp Low-Beam |
| 8 | Horn |
| 9 | Right Headlamp Low-Beam |
| 10 | Front Fog Lamps |
| 11 | Left Headlamp High-Beam |
| 12 | Right Headlamp High-Beam |
| 13 | Powertrain Control Module (Batt) |
| 14 | Windshield Wiper |
| 15 | Anti-Lock Brake System |
| 16 | Powertrain Control Module (IGN 1) |
| 17 | Cooling Fan 1 |
| 18 | Cooling Fan 2 |
| 19 | RUN RELAY |
| 20 | IBCM 1 |
| 21 | IBCM (R/C) |
| 22 | RBEC 1 |
| 23 | RBEC 2 |
| 24 | Anti-lock Brake System |
| 25 | IBCM 2 |
| 26 | STARTER |
| 27 (DIODE) | Windshield Wiper |
| 41 | Electric Power Steering |
| 42 (Resistor) | Brake Lamp Diagnostic |
| Relays | |
| 28 | Cooling Fan 1 |
| 29 | Cooling Fan Mode |
| 30 | Cooling Fan 2 |
| 31 | STARTER |
| 32 | RUN/CRANK Ignition |
| 33 | POWERTRAIN |
| 34 | A/C CLUTCH |
| 35 | High-Beam Headlamps |
| 36 | Front Fog Lamps |
| 37 | Horn |
| 38 | Low-Beam Headlamps |
| 39 | Windshield Wiper 1 |
| 40 | Windshield Wiper 2 |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Not Used |
| 2 | Driver Seat Controls |
| 3 | Not Used |
| 4 (Resistor) | Driver Door Key Lock Cylinder |
| 5 | Emission |
| 6 | Parklamps |
| 7 | Not Used |
| 8 | Not Used |
| 9 | Not Used |
| 10 | Sunroof Controls |
| 11 | Not Used |
| 12 | Auxiliary Power 2 |
| 13 | Not Used |
| 14 | Heated Seat Controls |
| 15 | Not Used |
| 16 | Remote Keyless Entry System, XM Satellite Radio, Rear Seat Entertainment System, Homelink |
| 17 | Back-up Lamps |
| 18 | Not Used |
| 19 | Not Used |
| 20 | Cigarette Lighter, Auxiliary Power Outlet |
| 21 | Not Used |
| 22 | Trunk |
| 23 | Rear Window Defogger |
| 24 | Heated Mirror Controls |
| 25 | Fuel Pump |
| Relays | |
| 26 | Rear Window Defogger |
| 27 | Parklamps |
| 28 | Not Used |
| 29 | Not Used |
| 30 | Not Used |
| 31 | Not Used |
| 32 | Not Used |
| 33 | Back-up Lamps |
| 34 | Not Used |
| 35 | Not Used |
| 36 | Trunk |
| 37 | Fuel Pump |
| 38 (Diode) | Cargo Lamps |
