Chevrolet Corvette 2014 Fuse Box Info

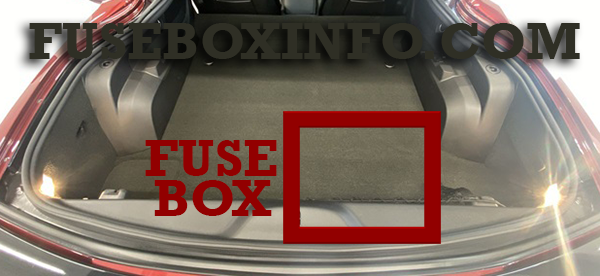

Luggage compartment fuse box location:
The rear compartment fuse box is in the rear of the vehicle, under the load floor.

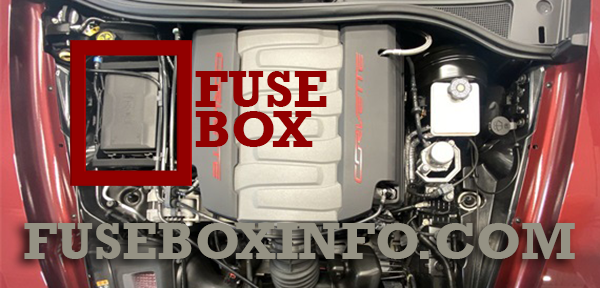

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Window |
| 2 | Driver Power Seat |
| 3 | PEPS 2 |
| 4 | PEPS 1 |
| 5 | Engine Control Module |
| 6 | Heated Mirrors |
| 7 | Body Control Module 4 |
| 8 | Rear Window Defogger |
| 9 | GBS |
| 10 | Body Control Module 2 |
| 11 | Steering Wheel |
| 12 | Passenger Power Seat |
| 13 | Not Used |
| 14 | Outside Rearview Mirror |
| 15 | Body Control Module 1 |
| 16 | Body Control Module 3 |
| 17 | Sensing Diagnostic Module/Automatic Occupant Sensing |
| 18 | Logistics 2 |
| 19 | Body Control Module 8 |
| 20 | Integrated Chassis Control Module |
| 21 | Amplifier |
| 22 | Rear Accessory Power Outlet |
| 23 | Rear Closure |
| 24 | Memory Seat Module/ Convertible Top |
| 25 | Theft-Deterrent PSM |
| 26 | Pressure Vent (Coupe Only) |
| 27 | OnStar (If Equipped) |
| 28 | Not Used |
| 29 | Not Used |
| 30 | Fuel Pump Power Module |
| 31 | Not Used |
| 32 | Battery Regulated Voltage Control |
| 33 | Not Used |
| 34 | Convertible Top Solenoid |
| 35 | Not Used |
| 36 | Passenger Window Switch |
| 37 | Front Accessory Power Outlet |
| 38 | Not Used |
| 39 | Spare |
| 40 | Spare |
| 41 | Spare |
| 42 | Spare |
| 43 | Spare |
| 44 | Spare |
| Relays | |
| R1 | Logistics 2 |
| R2 | Rear Window Defogger |
| R3 | Not Used |
| R4 | Front Accessory Power Outlet |
| R5 | Theft (Door Lock Security) |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Front Wiper |
| 2 | Starter |
| 3 | Antilock Brake System Valves |
| 4 | Engine Control Module |
| 5 | Electric Parking Brake |
| 6 | Front Heater, Ventilation, and Air Conditioning |
| 7 | Antilock Brake System Pump |
| 8 | Logistics |
| 9 | Vacuum Pump |
| 10 | Electronic Rear Differential Module |
| 11 | Heated Seat 1 |
| 12 | Column Lock Module |
| 13 | Steering Column |
| 14 | Glove Box |
| 15 | Engine Inside Position |
| 16 | Body Control Module 6 |
| 17 | Heater, Ventilation, and Air Conditioning Controls |
| 18 | Body Control Module 5 |
| 19 | Heated Seat 2 |
| 20 | Body Control Module 7 |
| 21 | Electric Steering Column Lock |
| 22 | Display |
| 23 | Auxiliary Outlet |
| 24 | Radio |
| 25 | Instrument Cluster HUD |
| 26 | Inside Rearview Mirror |
| 27 | Odd Ignition |
| 28 | Even Ignition |
| 29 | Data Link Connector |
| 30 | Seat Fan |
| 31 | Fuel Pump Power Module |
| 32 | Exhaust Valve 1 |
| 33 | Horn |
| 34 | Headlamp Washer |
| 35 | Air Conditioning Compressor Clutch |
| 36 | Engine Outside Position |
| 37 | Real Time Damping |
| 38 | Left Headlamp |
| 39 | Right Headlpamp |
| 40 | Headlamp Washer Pump |
| 41 | Exhaust Valve 2 |
| 42 | Reverse Lockout |
| 43 | Electric Rear Differential Module |
| 44 | Rear Transmission Cooler Fan |
| 45 | Transmission Control Module |
| 46 | Canister Vent |
| 47 | Integrated Chassis Control Module/ Automatic Occupant Sensing |
| 48 | Theft/Vehicle Interface Module |
| 49 | Engine/ Transmission |
| 50 | Instrument Cluster |
| 51 | Headlamp High Beam |
| 52 | Transmission Control Module/ Engine Control Module |
| Spare Fuses | |
| 63 | Spare |
| 64 | Spare |
| 65 | Spare |
| 66 | Spare |
| 67 | Spare |
| 68 | Spare |
| 69 | Spare |
| 70 | Spare |
| 71 | Spare |
| 72 | Spare |
| 73 | Spare |
| Relays | |
| 53 | Starter |
| 54 | Front Wiper Low/High |
| 55 | Run/Crank |
| 56 | Front Wiper Motor |
| 57 | Headlamp Washer |
| 58 | Air Conditioning Control |
| 59 | Logistics 1 |
| 60 | Headlamp Low |
| 61 | Engine Control Module |
| 62 | Vacuum Pump |
