Chevrolet Blazer EV 2024 Fuse Box Info

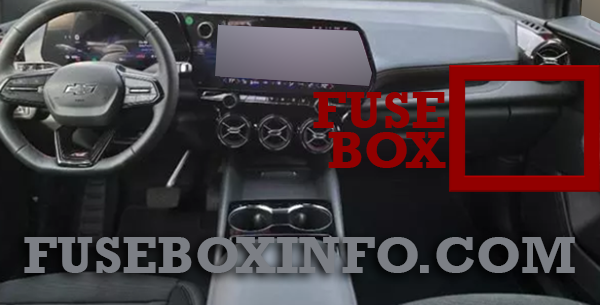

Passenger compartment fuse box location:
The instrument panel fuse box is on the passenger side of the instrument panel, between the glove box and the door.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
Fuse/Relay N° | Functions |
1 | - |
2 | APO/CIGAR LTR – Auxiliary Power Outlet Instrument Panel/Cigar Lighter |
3 | - |
4 | USB PORT/APO AC 150W – Universal Serial Bus Port/Auxiliary Power Outlet Alternating Current 150W |
5 | STRG COL LOCK – RUN/CRANK Steering Column Lock |
6 | ELM 1– Exterior Lighting Module 1 |
7 | AMP-BASE – Amplifier-Base |
8 | RT DR LATCH – Right Door Latch |
9 | LT DR LATCH – Left Door Latch |
10 | STRG COL POS MDL – Steering Column Position Module |
11 | ACP 4 –ADAS Compute Platform 4 |
12 | - |
13 | EUROPE-TRLR CON & ECP_E/ECP_S/VICM – RUN/CRANK Europe – Trailer Control and Electrification Control Processor (Traction Power Inverter 1 and 2)/Vehicle Integration Control Module |
14 | HEADLAMPS – RUN/CRANK Headlamps |
15 | HDLP RT –Headlamp Right |
16 | STRG COL/CLOCK SPRING – Steering Column Lock/Clock Spring |
17 | SEAT FAN PASS & SEAT FAN DRVR – RUN/CRANK Seat Fan Passenger and Seat Fan Driver |
18 | VCD & SRR –Virtual Cockpit Display and Short Range Radar |
19 | MISC 2 & MISC 1 – RUN/CRANK Miscellaneous 2 Switch Bank/Electronic Toll Collection/Interior Particulate Matter Sensor/ Reflective Light Auxiliary Display and Miscellaneous 1 Electronic Brake Control Module/Exterior Lighting Module/Sensing and Diagnostic Module/Inside Rear View Mirror |
20 | BCM 1 & VICM – Body Control Module 1 and Vehicle Integration Control Module |
21 | LRR-RR & EPBS/ESM – Long Range Radar – Rear and Electric Park Brake Switch/Electronic Transmission Range Select Shifter Module |
22 | VKM/VKMB/AUX JACK & ACP3 – Virtual Key Module/Virtual Key Backup Module/Auxiliary Jack and ADAS Compute Platform 3 |
23 | T/LAMP RT & T/LAMP LT – Tail Lamp Right and Tail Lamp Left |
24 | UPA/APA/SBZA & SDM/AOS – Universal Park Assist/Automatic Park Assist/Side Blind Zone Alert and Sensing Diagnostic Module/Automatic Occupant Sensing Module |
25 | ACP 2/EOCM_LC/FCM/MFC & DMS/CGM/DLC/VDM – ADAS Compute Platform 2/External Object Calculating Module/Front Camera Module/Multi Function Control and Driver Monitoring System/Central Gateway Module/Diagnostic Link Connector/ Vehicle Data Monitor |
26 | ECP_E_BATT 2/ACEC & HUD/HVAC DISPLAY – Electrification Control Processor Battery 2/Air Condition Electric Compressor and Heads-Up Display/Heating,Ventilation and Air Conditioning Display |
27 | BCM 3 – Body Control Module 3 |
28 | BCM 2 – Body Control Module 2 |
29 | AMP-UPLEVEL - Amplifier - Uplevel |
30 | BCM 4 – Body Control Module 4 |
31 | VPM/SD CARD/ILSS/OHC – Video Processing Module/SD Card/Indicator Light and Solar Sensor/Over Head Console |
32 | HSWM – Heated Steering Wheel Module |
33 | LRR FR/LIDAR – Long Range Radar Front/Light Detection and Ranging |
34 | ELM 2 – Exterior Lighting Module 2 |
35 | HDLP LT – Headlamp Left |
36 | VCU BATT 1 – Virtual Cockpit Unit Battery 1 |
37 | TCP (OnStar) – Telematics Communication Platform |
38 | WCM – Wireless Charger Module |
39 | HI VOLTAGE SYS LCKOUT – High Voltage System Lockout |
40 | VCU Batt 2 – Virtual Cockpit Unit Battery 2 |
41 | ELM 6 – Exterior Lighting Module 6 |
42 | - |
Engine compartment fuse box:
Fuse/Relay N° | Functions |
1 | Spare |
2 | - |
3 | Spare |
4 | Spare |
5 | Spare |
6 |
- MSM – Memory Seat Module
|
7 | PEEV/PCEV & ECFV/CHFV – Primary Evaporator Expansion Valve/Primary Chiller Expansion Valve and External Condenser Flow Valve/Condensing Heater Flow Valve |
8 |
MCV & PLCM – Main Coolant Valve and Power Line Communication Module -
|
9 | - |
10 | - |
11 | - |
12 | - OBCM 2 – On Board Charging Module 2 |
13 | ESSCP & PECP – Energy Storage System Coolant Pump and Power Electric Cooling Pump |
14 | - |
15 | TRLR PRK LAMPS – Trailer Park Lamps - |
16 | - |
17 | - |
18 | - |
19 | - |
20 | - |
21 | CPDM – Charge Port Door Motor |
22 | - |
23 | ECP_S – Electrification Control Processor |
24 | - |
25 | - |
26 | Spare |
27 | - |
28 | ETC Mod – Electronic Toll Control Module |
29 | - |
30 | - |
31 | - |
32 | Spare |
33 | Spare |
34 | ELM_BAT 5 – Exterior Lighting Module Battery 5 |
35 | ELM BAT 4 – Exterior Lighting Module Battery 4 |
36 | - |
37 | Rear Wiper |
38 | ELM BAT 7 – Exterior Lighting Module Battery 7 |
39 | ELM BAT 3 – Exterior Lighting Module Battery 3 |
40 | - |
41 | DSP LF/DSP RF – Left Front and Right Front Door Switch Panel - |
42 | SEAT SW & VKM/RLH – Seat Position Switch and Virtual Key Module/Rain Light Humidity |
43 | - ECP_E_BATT1 – Electrification Control Processor Battery 1 |
44 | - ACM – Air Conditioning Module |
45 | RFR & HFRC – Remote Function Receiver and Handsfree Rear Closure |
46 | - PFA – Pedestrian Friendly Alert |
47 | PRK EMBLEM – Park Emblem - |
48 | PTM – Power Tailgate Module |
49 | ECP_E_BATT3 – Electrification Control Processor Battery 3 |
50 | PWE L/DSP LR – Left Power Window Electronics/Left Rear Door Switch Panel |
51 | - |
52 | PWE R/DSP R – Right Power Window Electronics/Right Rear Door Switch Panel |
53 | FRT WPR – Front Wiper |
54 | - |
55 | - |
56 | - |
57 | EBCM 1 – Electronic Brake Control Module 1 |
58 | FRT BLWR MTR – Front Blower Motor |
59 | - |
60 | Horn |
61 | Rear Defog |
62 | - |
63 | SRC – Sunroof Controller |
64 | MSM DR/SAET SW DR – Driver Memory Seat Module/Power Seat Driver |
65 | PWR SEAT CODR – Power Seat Co-driver |
66 | CFM – Condenser Fan Module |
67 | Heated Wiper (De-Ice) |
68 | Spare |
69 | Spare |
70 | RELAY’S COIL |
71 | HSM_ROW2_SRC2 – Heated Seat Module Row 2 Source 2 |
72 | HSM_SRC1 – Heated Seat Module Source 1 |
73 | - |
74 | - |
75 | Spare |
76 | Spare |
77 | Spare |
78 | TRLR ST/TRN RT & TRLR ST/TRN LT – Trailer Stop Turn Right and Trailer Stop Turn Left |
79 | HSM_ROW2_SRC1 – Heated Seat Module Row 2 Source 1 |
80 | HSM_SRC2 – Heated Seat Module Source 2 |
81 | - |
82 | Wash Pump |
83 | Rear Wiper |
