Chevrolet Blazer EV 2025 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is on the passenger side of the instrument panel, between the glove box and the door.
Engine compartment fuse box location:
Fuse Box Diagram | Layout

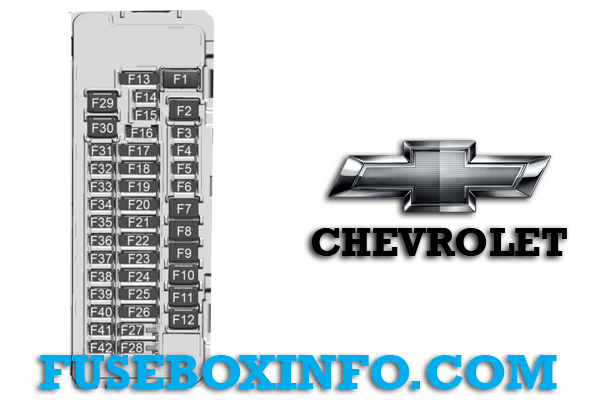

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | - |
| 2 | APO_ROW1_CNSL – Front Console Auxiliary Power Outlet |
| 3 | Spare |
| 4 | RR_APO_USB – Rear USB Auxiliary Power Outlet (Floor Console) |
| 5 | SCL_NOT_RUN – Steering Column Lock Not Run |
| 6 | REAR_TPIM_2 – Rear Traction Power Inverter Module 2 |
| 7 | ACP3_MODULE – ADAS Compute Platform Module 3 |
| 8 | - |
| 9 | - |
| 10 | BCM 4 – Body Control Module 4 |
| 11 | - |
| 12 | - |
| 13 | MISC_3/Spare – MISC 3 – MISCELLANEOUS 3 – Traction Inverter Power Module 1 & 2 Run/Crank/ Vehicle Integration Control Module Run Crank/Spare |
| 14 | ISRVM – Inside Rearview Mirror |
| 15 | HEADLAMP RIGHT |
| 16 | STRG WHL CNTRLS – Steering Wheel Controls |
| 17 | VENTED STS FRT – Vented Seats Front |
| 18 | VCD/AUX_JACK_1 – VCD – Virtual Cockpit Display/Aux Jack 1 – Audio/Video Auxiliary Jack 1 |
| 19 | MISC 4 –MISCELLANEOUS 4 – MISCELLANEOUS BODY/ MISCELLANEOUS IP – MISCELLANEOUS BODY – Airbag Module Run/Crank Exterior Lighting Module Run/Crank Electronic Brake Control Module Run/ Crank/MISCELLANEOUS IP – Reflective Light Auxiliary Display Run/Crank Headlamps Switch Bank Run/Crank Headlamps Left and Right Run/Crank |
| 20 | SCL/VICM – SCL – Steering Column Lock Assembly/ VICM – Vehicle Integration Control Module |
| 21 | BCM_1/EPBS_ESM – Body Control Module 1/Electronic Transmission Range Select Shifter Module/Electric Park Brake Switch |
| 22 | MISCELLANEOUS_5 – Universal Garage Door Opener_Wireless Charger Module/Front Camera Module_ADAS Compute Platform Module 2 |
| 23 | TAIL_LAMPS |
| 24 | MISC 6 – MISCELLANEOUS 6 – Park Assist/SBZA – Side Blind Zone Alert Module/SDM – Sensing and Diagnostic Module/AOS – Automatic Occupant Sensing Module Passenger |
| 25 | MISC 7 – MISCELLANEOUS 7 – Data Link Connector Central Gateway Module Vehicle Data Monitor Module/TVR USB Connector Video Processing Module Indicator Light and Solar Sensor Virtual Key Module Heated Seat Switch Rear Seats Overhead Console Module |
| 26 | VCU_1/VCU_2 – Virtual Cockpit Unit 1 & 2 |
| 27 | BCM 3 – Body Control Module 3 |
| 28 | BCM 2 – Body Control Module 2 |
| 29 | AMPLIFIER |
| 30 | - |
| 31 | HVSL_SWITCH – High Voltage System Lockout Switch |
| 32 | HSWM – Heated Steering Wheel Module |
| 33 | AUX_JACK_2 – Audio/Video Auxiliary Jack/USB (Armrest) |
| 34 | ELM 2 – Exterior Lighting Module 2 |
| 35 | Headlamp Left |
| 36 | ACEC_MODULE – Air Conditioned Electric Compressor |
| 37 | IPD – Instrument Panel Display |
| 38 | LRR/SRR_SNSR – Long and Short Range Radars Sensors |
| 39 | HUD/TCP – Head Up Display/Telematics Control Platform |
| 40 | ELM 1 – Exterior Lighting Module 1 |
| 41 | ELM 6 – Exterior Lighting Module 6 |
| 42 | - |

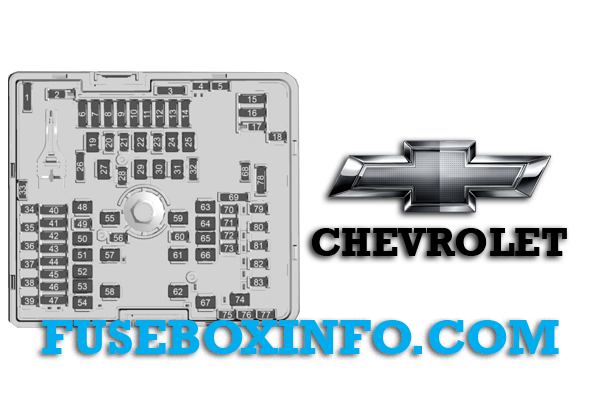

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Spare |
| 2 | - |
| 3 | Spare |
| 4 | Spare |
| 5 | Spare |
| 6 | – MSM – Memory Seat Module Driver Seat |
| 7 | PEEV/PCEV & ECFV/CHFV – Primary Evaporator Expansion Valve Motor/Primary Chiller Expansion Valve Motor and External Condenser Flow Valve/Condensing Heater Flow Valve |
| 8 | MCV & PLCM – Main Coolant Valve Motor and Power Line Communication Module |
| 9 | - |
| 10 | - |
| 11 | - |
| 12 | - OBCM – On Board Charging Module/Spare |
| 13 | ESSCP & PECP – Energy Storage System Coolant Pump and Power Electric Coolant Pump |
| 14 | - |
| 15 | TRLR PRK LAMPS – Trailer Park Lamps - |
| 16 | - |
| 17 | - |
| 18 | - |
| 19 | - |
| 20 | - |
| 21 | CPDM – Charge Port Door Motor |
| 22 | - |
| 23 | ECP_S – Front Traction Power Inverter Module 2 |
| 24 | - |
| 25 | - |
| 26 | Spare |
| 27 | - |
| 28 | ETC Mod – Spare |
| 29 | - |
| 30 | - |
| 31 | - |
| 32 | Spare |
| 33 | Spare |
| 34 | ELM_BAT 5 – Exterior Lighting Module Battery 5 |
| 35 | ELM BAT 4 – Exterior Lighting Module Battery 4 |
| 36 | - |
| 37 | REAR WIPER – Rear Window Wiper |
| 38 | ELM BAT 7 – Exterior Lighting Module Battery 7 |
| 39 | ELM BAT 3 – Exterior Lighting Module Battery 3 |
| 40 | - |
| 41 | DSP LF/DSP RF – Front Doors Window Regulators/Spare - |
| 42 | SEAT SW & VKM/RLH – SEAT SW – Driver & Passenger Seat Switches (Position and Lumbar)/VKM - Virtual Key Sensors/RLH – Rain Light & Humidity Sensors – Driver Door Handle Switch |
| 43 | - ECP_E_BATT1 – Spare/Traction Power Inverter Module 1 |
| 44 | - ACM – Spare/Aeroshutter |
| 45 | RFR & HFRC – Remote Function Receiver Module/Hands Free Closure Release Module |
| 46 | - PFA – Pedestrian Friendly Alert Module/Spare |
| 47 | PRK EMBLEM – Park Emblem (Front & Grille) - |
| 48 | PTM – Power Liftgate Module |
| 49 | ECP_E_BATT3 – Traction Power Inverter Module 3 |
| 50 | PWE L/DSP LR – Left Power Window Motors/Rear Left Door Switch Panels |
| 51 | - |
| 52 | PWE R/DSP R – PWE R – Front and Rear Right Windows Motors/DSP R – Front and Rear Right Door Switches Panels |
| 53 | FRT WPR – Front Wiper |
| 54 | - |
| 55 | - |
| 56 | - |
| 57 | EBCM 1 – Electronic Brake Control Module 1 |
| 58 | FRT BLWR MTR – Front Blower Motor – Heating, Ventilation, Air Conditioning Front Blower Motor |
| 59 | - |
| 60 | Horn |
| 61 | RR_DEFOG – Rear Defogger |
| 62 | - |
| 63 | SRC – Sunroof |
| 64 | MSM DR/SAET SW DR – Driver Memory Seat Module/Power Seat Driver/ SAET SW DR – Driver Seat Switches |
| 65 | PWR SEAT CODR – Passenger Power Seat |
| 66 | CFM – Cooling Fan Module |
| 67 | WIPER DE-ICE – Wiper De-Ice Heater |
| 68 | Spare |
| 69 | Spare |
| 70 | RELAY COIL |
| 71 | HSM_ROW2_SRC2 – Rear Heated Seats Module 2 |
| 72 | HSM_SRC1 – Front Heated Seats Module 1 |
| 73 | - |
| 74 | - |
| 75 | Spare |
| 76 | Spare |
| 77 | Spare |
| 78 | TRLR ST/TRN RT & TRLR ST/TRN LT – Trailer Stop Turn Right and Trailer Stop Turn Left |
| 79 | HSM_ROW2_SRC1 – Rear Heated Seats Module 1 |
| 80 | HSM_SRC2 – Front Heated Seats Module 2 |
| 81 | - |
| 82 | WASH PUMP – Front & Rear Washer Pump |
| 83 | Rear Wiper |
