Chevrolet Orlando 2011 Fuse Box Info

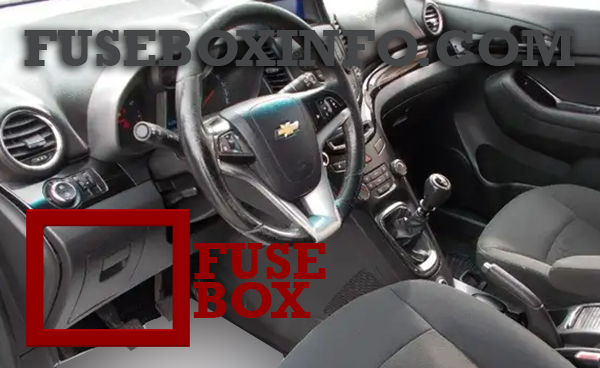

Passenger compartment fuse box location:
The fuse box is located behind the storage compartment in the instrument panel. In right-hand drive vehicles, the fuse box is located in the glove box.

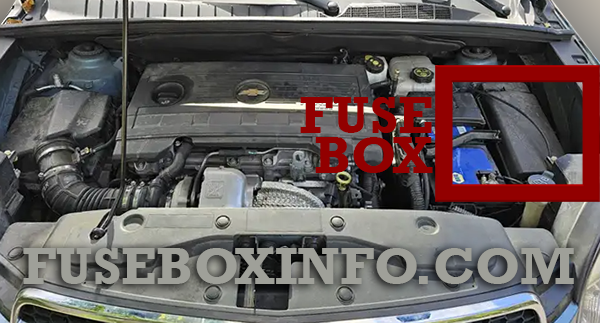

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | - |
| 2 | - |
| 3 | Body control module |
| 4 | Infotainment system, audio |
| 5 | Info display, face plate |
| 6 | Front power outlet |
| 7 | Power outlet |
| 8 | Body control module |
| 9 | Body control module |
| 10 | Body control module |
| 11 | Interior fan |
| 12 | - |
| 13 | Power front seat, left side |
| 14 | Dynamic light control |
| 15 | Airbag |
| 16 | Central locking system, tailgate |
| 17 | Air condition system |
| 18 | - |
| 19 | Shift lever |
| 20 | - |
| 21 | Instrument |
| 22 | Ignition, Electronic key system |
| 23 | Body control module |
| 24 | Body control module |
| 25 | Steering column lock |
| 26 | Rear power outlet |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Transmission control module |
| 2 | Engine control module |
| 3 | |
| 4 | Canister vent sol |
| 5 | Ignition |
| 6 | Front wipers |
| 7 | - |
| 8 | Fuel injection |
| 9 | Fuel injection, ignition system |
| 10 | Engine control module |
| 11 | Lambda sensor |
| 12 | Starter solenoid |
| 13 | Canister vent sol |
| 14 | - |
| 15 | Rear wiper |
| 16 | Ignition, Air quality sensor |
| 17 | Ignition, Airbag |
| 18 | Fuel system control module |
| 19 | - |
| 20 | Fuel pump |
| 21 | Rear power windows |
| 22 | - |
| 23 | - |
| 24 | Front power windows |
| 25 | Electronic vacuum pump |
| 26 | ABS pump |
| 27 | - |
| 28 | Heated rear window |
| 29 | - |
| 30 | ABS valve |
| 31 | Body control module |
| 32 | Body control module |
| 33 | - |
| 34 | Sunroof |
| 35 | Infotainment system, Amplifier |
| 36 | - |
| 37 | High beam, right side |
| 38 | High beam, left side |
| 39 | - |
| 40 | - |
| 41 | - |
| 42 | Cooling fan |
| 43 | - |
| 44 | - |
| 45 | Cooling fan |
| 46 | Cooling fan |
| 47 | Lambda sensor |
| 48 | Fog lights |
| 49 | - |
| 50 | - |
| 51 | Horn |
| 52 | Fuel and emission control |
| 53 | Electrochromatic mirror |
| 54 | Light switch, Light control |
| 55 | Mirror folding |
| 56 | Windscreen washer |
| 57 | Steering column lock |
| 58 | - |
| 59 | Diesel fuel heating |
| 60 | Mirror heating |
| 61 | Mirror heating |
| 62 | Air condition |
| 63 | Rear window sensor |
| 64 | Air quality sensor |
| 65 | Rear fog lamp |
| 66 | Rear washer |
| 67 | Fuel system control module |
| 68 | - |
| 69 | Battery voltage sensor |
| 70 | Rain sensor |
| 71 | - |
