Chevrolet Trax 2024 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is on the left side of the instrument panel.

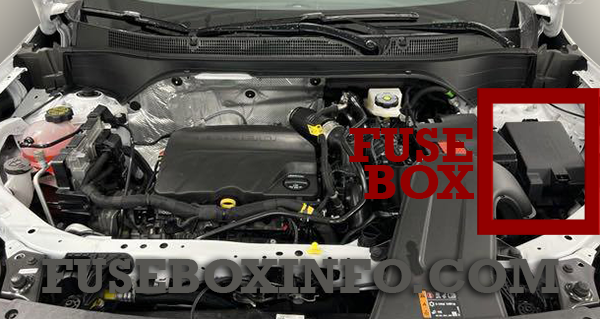

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Body control module 1 |
| 2 | Body control module 2 |
| 3 | Body control module 3 |
| 4 | Body control module 4 |
| 5 | Body control module 5 |
| 6 | Body control module 6 |
| 7 | Body control module 7 |
| 8 | Body control module 8 |
| 9 | Discrete logic ignition switch |
| 10 | Sensing diagnostic module battery |
| 11 | Data link connector |
| 12 | HVAC module/ICS |
| 13 | Liftgate relay |
| 14 | Central gate module |
| 15 | - |
| 16 | - |
| 17 | - |
| 18 | Park assist module/Side blind zone alert |
| 19 | Body control module/Regulated voltage control |
| 20 | Clock spring |
| 21 | A/C/Accessory power outlet |
| 22 | Auxiliary power outlet/DC front |
| 23 | - |
| 24 | - |
| 25 | OnStar module |
| 26 | - |
| 27 | Instrument cluster |
| 28 | - |
| 29 | - |
| 30 | - |
| 31 | Instrument cluster module battery |
| 32 | Silver box audio module/Navigation |
| 33 | - |
| 34 | Passive entry/Passive start |
| Midi Fuses | |
| M01 | - |
| S/B Fuses | |
| S/B01 | HVAC Aux heater – 1 |
| S/B02 | HVAC Aux heater – 2 |
| S/B03 | Front power windows |
| S/B04 | Rear power windows |
| S/B05 | Logistic mode relay |
| S/B06 | Driver power seat |
| S/B07 | - |
| S/B08 | - |
| Circuit Breaker | |
| CB1 | - |
| Relays | |
| RLY01 | Accessory/Retained accessory power |
| RLY02 | Liftgate |
| RLY03 | - |
| RLY04 | Blower |
| RLY05 | Logistic mode |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Micro Fuses | |
| 01 | L/GATE RELEASE |
| 02 | A/C CLUTCH |
| 06 | HTD OSRVM |
| 08 | HORN |
| 10 | - |
| 11 | ECM PT_1 |
| 12 | IGNITION COIL |
| 13 | ENG COMPONENT_2 |
| 14 | ENG COMPONENT_1 |
| 15 | ECM PT_2 |
| 16 | N/A |
| 17 | N/A |
| 18 | RVC |
| 19 | ECM BATT |
| 20 | AUX WATER PUMP |
| 21 | PEPS |
| 24 | HTD/SEAT_1 |
| 25 | HTD/SEAT_2 |
| 28 | CAC SHUTTER |
| 29 | - |
| 31 | FTZM |
| 32 | TCM BATT |
| 34 | ESCL RUN/CRANK |
| 35 | - |
| 36 | - |
| 37 | ECM TCM RUN/CRANK |
| 40 | - |
| 41 | HDLP LEVELING |
| 42 | CLUSTER |
| 44 | WASH PUMP |
| 45 | - |
| 46 | - |
| 47 | CNSTR VENT SOL |
| 48 | - |
| 49 | REAR WIPER PARK |
| 50 | - |
| 51 | - |
| 52 | - |
| 53 | VENT SEAT |
| 54 | - |
| 55 | - |
| 56 | ISRVM/RLAD |
| 57 | - |
| 58 | REAR WIPER |
| 59 | - |
| 62 | LUMBER |
| M-case Fuses | |
| 03 | STARTER SOL |
| 04 | - |
| 05 | RR DEFOG |
| 07 | COOLING FAN MID |
| 09 | - |
| 22 | FRONT WIPER |
| 23 | - |
| 26 | COOLING FAN LOW |
| 27 | - |
| 30 | - |
| 33 | - |
| 38 | EBCM_2 |
| 39 | COOLING FAN HIGH |
| 43 | - |
| 60 | POWER WINDOW LT |
| 61 | POWER WINDOW RT |
| Mini Relays | |
| K04 | COOLING FAN HIGH RELAY |
| Micro Relays | |
| K01 | STARTER SOL RELAY |
| K02 | - |
| K03 | POWERTRAIN RELAY |
