Chevrolet Corvette 2021 Fuse Box

Chevrolet Corvette 2021 Fuse Box Info



Instrument panel fuse box location:

The instrument panel fuse box is behind the glove box.



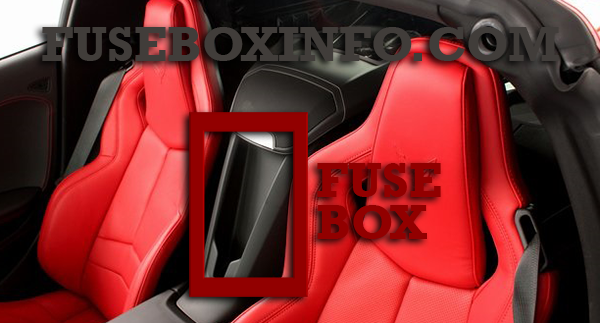

Rear compartment fuse box location:

The rear compartment fuse box is in the rear of the vehicle in between the seats.



Fuse Box Diagram | Layout



Instrument panel fuse box:

Fuse/Relay N° Functions
Fuses
1 -
2 Front wiper
3 Cooling fan 1
4 -
5 Cooling fan 2
6 Front blower
7 Automatic level control
8 Shifter interface board module
9 -
10 Display IP cluster/ HVAC/Center stack module
11 USB
12 -
13 -
14 Glove box
15 -
16 -
17 Remote function actuator
18 Front trunk release
19 Intelligent battery sensor
20 Exterior lighting module 1
21 Exterior lighting module 3
22 Exterior lighting module 4
23 Body control module 2
24 Exterior lighting module 6
25 Amplifier
26 Automatic occupant sensing/Electric park brake
27 Video processing module
28 Right headlamp
29 -
30 Sensing and diagnostic module/ Automatic occupant sensing
31 Body control module 1
32 Column lock module
33 Data link connection/ Wireless charging module
34 Telematics/Head up display
35 Horn
36 -
37 -
38 Front wash pump
39 Rear auxiliary power outlet
40 Performance data recorder/Center stack module
41 -
42 Theft deterrent
43 Left headlamp
44 Exterior lighting module 2
45 Power steering column module
46 Body control module 3
47 Exterior lighting module 5
48 Exterior lighting module 7
49 Body control module 4
50 Front auxiliary power outlet
51 -
52 Steering wheel control switch
53 Heated steering wheel
54 -
Relays
1 -
2 Glove box relay
3 Horn relay
4 Front wash relay
5 Retained accessory power/Accessory relay
6 Front trunk release relay 1
7 -
8 -
9 Front trunk release relay 2
10 Wiper relay



Rear compartment fuse box:

Fuse/Relay N° Functions
Fuses
1 Driver memory seat module/Power seat
2 Driver heated seat
3 Passenger memory seat module/ Power seat
4 Passenger heated seat
5 Transmission control module
6 -
7 Power sounder module/Pedestrian friendly alert function
8 Side blind zone alert/ Rear park assist
9 Column lock module
10 Engine control module/Air conditioning
11 -
12 Lithium ion battery module
13 Active fuel management
14 Seat fan
15 -
16 Exterior lighting module
17 Instrument panel cluster/Shifter interface board/Transmission control module/ Electronic brake control module
18 Engine control module
19 -
20 Sensing and diagnostic module/ Inside rear view mirror
21 Exhaust valve solenoid
22 Fuel pump/Fuel tank zone module
23 Tonneau left
24 Tonneau right
25 Convertible top right
26 Convertible top left
27 Electronic suspension control
28 -
29 CGM
30 O2 sensor
31 O2 sensor/Engine oil/Canister purge/ Active fuel management
32 Ignition even
33 Ignition odd
34 Engine control module 1
35 Engine control module/ Mass air flow Sensor/ O2 sensor/Air conditioning
36 -
37 Canister vent
38 Latch control module
39 Right window switch/Door lock
40 Left window switch/ Door lock
41 -
42 Engine control module 2
43 -
44 Air conditioning clutch
45 -
46 -
47 -
48 -
49 Auxiliary cooling fan right
50 -
51 -
52 -
53 Starter solenoid
54 Auxiliary cooling fan left
55 Automatic leveling control
56 -
57 Rear window defogger
58 -
59 Left/right window
60 Passenger power seat
61 Driver power seat
Relays
1 -
2 Powertrain relay
3 Run/crank relay
4 Rear defogger relay
5 Air conditioning clutch relay
6 -
7 -
8 -
9 -
10 -
11 -
12 -
13 -
14 Starter solenoid relay
15 -
