Audi Q5 2019 Fuse Box Info
Passenger compartment fuse box location:

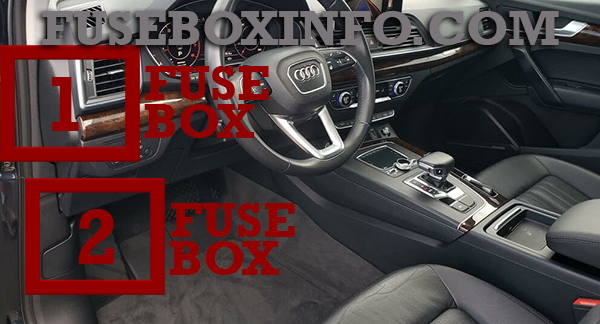

The fuse box 1 is located on the left front side of the cockpit. The fuse box 2 is located in the driver's footwell (left-hand drive vehicle).

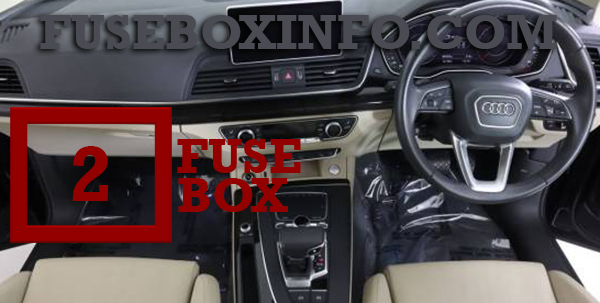

The fuse box 2 is located in the front passenger's footwell (right-hand drive vehicle).

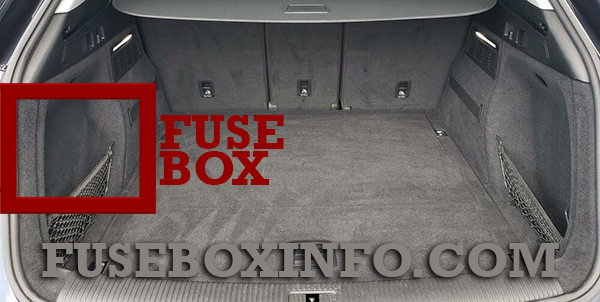

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box 1:
Fuse/Relay N° | Functions |
2 | Telephone |
4 | Head-up display |
5 | Audi music interface, USB charging port |
6 | Front climate control panel, instrument panel |
7 | Steering column lock |
8 | Infotainment system display |
9 | Instrument cluster |
10 | Infotainment unit |
11 | Light switch, switch panel |
12 | Steering column electronics |
14 | Infotainment system |
15 | Steering column adjustment |
16 | Steering wheel heating |
Passenger compartment fuse box 2:
Fuse/Relay N° | Functions |
Fuse panel A (brown) | |
2 | Engine components |
3 | Fuel injectors, crankcase housing heater |
4 | Vacuum pump, hot water pump, exhaust doors, radiator sensor |
5 | Brake light sensor |
6 | Engine valves, camshaft adjustment |
7 | Heated oxygen sensors |
8 | Water pump |
9 | Hot water pump |
10 | Oil pressure sensor, oil temperature sensor |
11 | Clutch pedal position sensor, engine start |
12 | Engine valves |
13 | Radiator fan |
14 | Fuel injectors |
15 | Ignition coils, heated oxygen sensors |
16 | Fuel pump |
Fuse panel B (red) | |
1 | Anti-theft alarm system |
2 | Engine control module |
3 | Lumbar support |
4 | Automatic transmission selector mechanism |
5 | Horn |
6 | Electromechanical parking brake |
7 | Gateway control module |
8 | Interior headliner lights |
9 | Emergency call system |
10 | Airbag control module |
11 | Electronic Stabilization Control (ESC) |
12 | Diagnostic connector, light/rain sensor |
13 | Climate control system |
14 | Right front door control module |
15 | A/C compressor |
Fuse panel C (black) | |
1 | Front seat heating |
2 | Windshield wipers |
3 | Left headlight electronics |
4 | Panorama glass roof |
5 | Left front door control module |
6 | Sockets |
7 | Right rear door control module |
8 | All wheel drive |
9 | Right headlight electronics |
10 | Windshield washer system/headlight washer system |
11 | Left rear door control module |
Fuse panel D (black) | |
1 | Seat ventilation, rearview mirror, climate control system, rear climate control system controls, windshield defogger |
2 | Gateway, climate control system |
4 | Clutch pedal position sensor |
5 | Engine start |
7 | Rear USB charging port |
8 | Garage door opener, electromechanical active roll stabilization |
9 | Adaptive cruise control |
10 | Exterior sound, pedal module |
11 | Video camera |
12 | Right headlight |
13 | Left headlight |
14 | Rear Seat Entertainment preparation |
Fuse panel E (red) | |
1 | Ignition coils |
2 | Engine valves |
6 | Automatic transmission |
7 | Instrument panel |
8 | Climate control system (blower) |
10 | Dynamic steering |
11 | Engine start |
Luggage compartment fuse box:
Fuse/Relay N° | Functions |
Fuse panel A (black) | |
2 | Windshield defroster |
3 | Windshield defroster |
5 | Air suspension/suspension control |
6 | Automatic transmission |
7 | Rear window defogger |
8 | Rear seat heating |
9 | Left tail lights |
10 | Left safety belt tensioner |
11 | Central locking system |
12 | Luggage compartment lid |
Fuse panel B (red) | |
Not assigned | |
Fuse panel C (brown) | |
2 | Telephone |
3 | Lumbar support |
4 | Audi side assist |
5 | Rear Seat Entertainment preparation |
7 | Vehicle opening/start (NFC) |
8 | Smart module (tank) |
9 | Climatized cup holder |
11 | Auxiliary battery control module |
12 | Garage door opener |
13 | Rearview camera, peripheral cameras |
14 | Right tail lights |
16 | Right safety belt tensioner |
Fuse panel E (red) | |
2 | Sound-amplifier |
5 | Trailer hitch (right light) |
7 | Trailer hitch |
8 | Trailer hitch (left light) |
9 | Trailer hitch (socket) |
10 | Sport differential |
