Audi Q5 2009 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

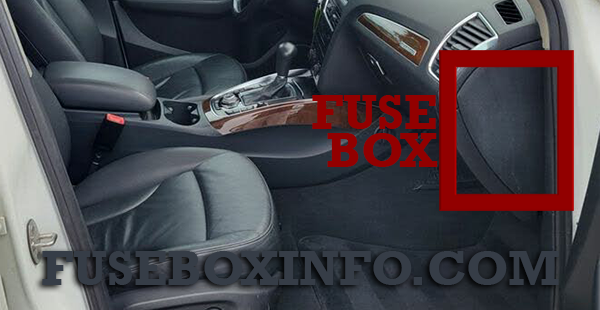

The instrument panel fuse box is located on the end of the instrument panel on the passenger’s side of the vehicle.
Luggage compartment fuse box location:

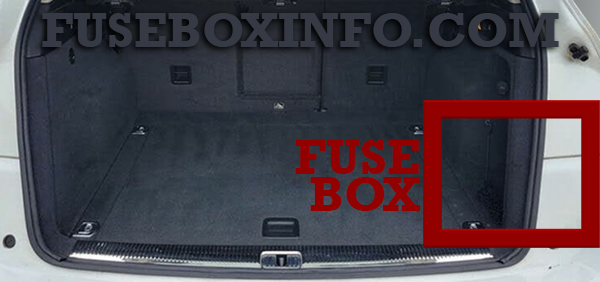

The luggage compartment fuse box is located on the right side of the trunk, behind a cover.
Fuse Box Diagram | Layout
Passenger compartment fuse box (Left Side):
| Fuse/Relay N° | Rating | Functions |
| Fuse panel (black) | ||
| 1 | 5A | Dynamic steering |
| 2 | 5A | Clutch sensor |
| 3 | 5A | HomeLink |
| 4 | - | Not used |
| 5 | 5A | Air conditioner |
| 6 | 5A | Autom. headlight range control, right |
| 7 | 5A | Autom. headlight range control, left |
| 8 | 5A | Vehicle electrical system control module |
| 9 | 5A | Automatically dimming inside mirror |
| 10 | 5A | Gearshift gate |
| 11 | 5A | Heated washer jets |
| 12 | 5A | Air conditioner |
| Fuse panel (brown) | ||
| 1 | 5A | Auxiliary water pump |
| 2 | 5A | Clutch sensor |
| 3 | 25A | Fuel pump |
| 4 | 5A | Auxiliary water pump |
| 5 | 30A | Seat heating driver's side |
| 6 | 10A | Electronic stabilization program (ESP) |
| 7 | 25A | Horn |
| 8 | 30A | Window lifter engine for door, left |
| 9 | 30A | Wiper and washer system |
| 10 | 25A | Electronic stabilization program (ESP) |
| 11 | 15A | Door, left |
| 12 | 5A | Rain sensor, light sensor |
| Fuse panel (red) | ||
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | 10A | Lumbar support |
| 4 | 35A | Dynamic steering |
| 5 | 10A | Climatized cupholder |
| 6 | 35A | Vehicle electrical system control module |
| 7 | 20A | Vehicle electrical system control module |
| 8 | 30A | Vehicle electrical system control module |
| 9 | 20A | Panoramic sliding sunroof |
| 10 | 30A | Vehicle electrical system control module |
| 11 | 20A | Panoramic sliding sunroof sunshade |
| 12 | 5A | Anti-theft alarm warning system |
Passenger compartment fuse box (Right Side):
| Fuse/Relay N° | Rating | Functions |
| Fuse panel (black) | ||
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | - | Not used |
| 4 | - | Not used |
| 5 | 5A | Steering column switch module |
| 6 | 5A | Electronic Stabilization Program (ESP) |
| 7 | 5A | Diagnostic connector, Terminal 15 |
| 8 | 5A | Data bus on board diagnostic interface |
| 9 | - | Not used |
| 10 | - | Not used |
| 11 | - | Not used |
| 12 | - | Not used |
| Fuse panel (brown) | ||
| 1 | 5A | CD/DVD player |
| 2 | 5A | Audi drive select switch module |
| 3 | 5/20A | MMI/Radio |
| 4 | 5A | Light switch |
| 5 | 5A | Data bus on board diagnostic interface, Instrument cluster |
| 6 | 5A | Ignition lock |
| 7 | - | Not used |
| 8 | 40A | Air conditioner blower |
| 9 | 5A | Steering column lock |
| 10 | 10A | Air conditioner |
| 11 | 10A | Diagnostic connector, Terminal 30 |
| 12 | 5A | Steering column switch module |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuse panel (black) | ||
| 1 | 30A | Rear lid control module 2 |
| 2 | - | Not used |
| 3 | 30A | Rear lid control module 1 |
| 4 | - | Not used |
| 5 | - | Not used |
| 6 | - | Not used |
| 7 | - | Not used |
| 8 | - | Not used |
| 9 | - | Not used |
| 10 | - | Not used |
| 11 | - | Not used |
| 12 | - | Not used |
| Fuse panel (black) | ||
| 1 | 5A | Tire pressure monitoring system |
| 2 | 15A | Trailer towing |
| 3 | 20A | Trailer towing |
| 4 | 20A | Trailer towing |
| 5 | 5A | Electromechanical parking brake |
| 6 | 15A | Electronic dumping system |
| 7 | 30A | Electromechanical parking brake |
| 8 | 30A | Comfort system central control module |
| 9 | - | Not used |
| 10 | 30A | Comfort system central control module |
| 11 | 20A | Comfort system central control module |
| 12 | - | Not used |
| Fuse panel (brown) | ||
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | 7.5A | Radio/MMI/Navigation/cell phone prep |
| 4 | 30A | Digital sound system |
| 5 | 7.5A | MMI |
| 6 | - | Not used |
| 7 | 30A | Electromechanical parking brake |
| 8 | - | Not used |
| 9 | 30A | Window lifter engine for door, right |
| 10 | - | Not used |
| 11 | 15A | Door, right |
| 12 | 5A | Rear view camera |
| Fuse panel (red) | ||
| 1 | 15A | 12V socket (rear center console) |
| 2 | 15A | 12V socket (front center console) |
| 3 | 15A | 12V socket (luggage compartment) |
| 4 | 15A | Cigarette lighter/socket |
| 5 | 5A | Audi parking system advanced |
| 6 | 5A | Telephone |
| 7 | - | Not used |
| 8 | 15A | Rear wiper |
| 9 | 5A | Electromechanical parking brake |
| 10 | 5A | Audi side assist |
| 11 | - | Not used |
| 12 | 5A | Airbag system |
