Audi R8 2020 Fuse Box Info

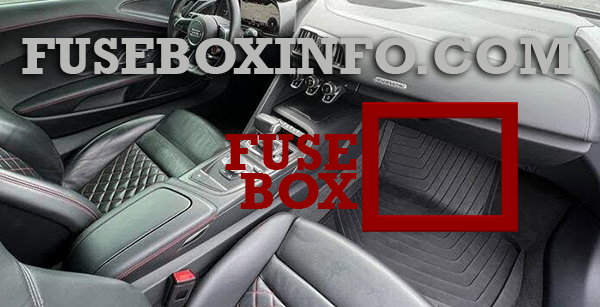

Passenger compartment fuse box location:
The fuse box is located in the footwell area on the passenger’s side behind a cover.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
Fuse/Relay N° | Functions |
Fuse panel A (black) | |
1 | Steering column switch module |
2 | Headliner interior light, Haldex clutch, airbag, switch panel, steering |
3 | Electronic Stabilization Control (ESC) |
4 | Dynamic steering |
5 | Garage door opener |
6 | Diagnostic port, light control panel, front central electric system control module |
7 | Gateway |
8 | ESC control module |
9 | Airbag |
10 | Climate control system, pressure sensor |
11 | Left LED headlight |
13 | Right LED headlight |
14 | Automatic dimming rearview mirror |
15 | Starter |
16 | Rear fuse panel |
Fuse panel B (black) | |
3 | Climate control system blower fan |
4 | Front central electric system control module |
6 | Rearview camera |
Fuse panel C (black) | |
1 | Diagnostic connector |
2 | Electronic parking brake switch |
3 | Gateway |
4 | Brake booster |
6 | Cigarette lighter, sockets |
7 | Instrument cluster |
8 | Rear central electric system control module |
9 | Rear central electric system control module |
Fuse panel D (red) | |
3 | Electronic Stabilization Control (ESC) |
4 | Terminal 15 (relay) |
5 | Selector lever (automatic transmission) |
7 | Interior lights |
8 | Windshield wiper (driver’s side) |
9 | Windshield wiper (front passenger’s side) |
10 | Horn |
11 | Steering column switch module |
12 | Light switch |
Fuse panel E (brown) | |
1 | ESC control module |
2 | ESC control module |
3 | Climate control system |
4 | Vehicle positioning |
5 | Left door control module |
6 | Right door control module |
7 | Front central electric system control module |
8 | Front central electric system control module |
9 | Front central electric system control module |
10 | Anti-theft alarm system |
11 | Front central electric system control module |
12 | Rain/light sensor |
Fuse panel F (black) | |
7 | Infotainment unit |
8 | Infotainment system control module |
9 | Infotainment system Bluetooth, safety belt microphone |
10 | Infotainment system sound amplifier |
12 | Infotainment system Audi music interface |
