Acura Integra 2025 Fuse Box Info

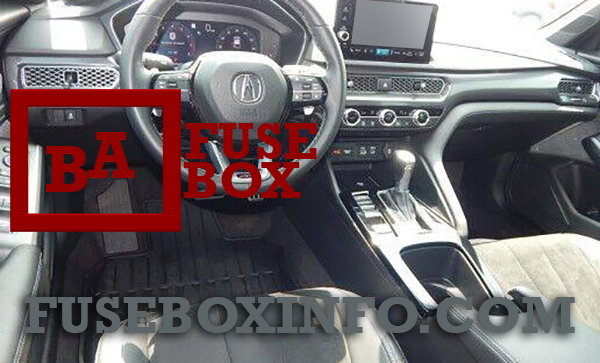

Passenger compartment fuse box location:
The interior fuse box is located under the dashboard on the driver’s side.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | P/W DR |
| 2 | 20A | P/W AS |
| 3 | 20A | P/W RR R |
| 4 | 20A | P/W RR L |
| 5 | 10A | OPTION |
| 6 | 10A | SRS |
| 7 | 10A | T/G MTR / TRUNK ACT |
| 8 | (10A) | IDAS / HUD |
| 9 | 20A | FR ACC SOCKET |
| 10 | 20A | DOOR LOCK |
| 11 | 10A | METER |
| 12 | 10A | OPTION3 (ST CUT) |
| 13 | - | - |
| 14 | 10A | OPTION6 (VB SOL) |
| 15 | 10A | DR DOOR UNLOCK |
| 16 | 20A | SUNROOF* |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| 20 | - | - |
| 21 | - | - |
| 22 | 10A | SMART |
| 23 | 10A | DR DOOR LOCK |
| 24 | - | - |
| 25 | 10A | IMG |
| 26 | 10A | SRS |
| 27 | 10A | ST CUT RLY |
| 28 | 10A | OPTION5 |
| 29 | 15A | FUEL PUMP |
| 30 | 10A | L SIDE DOOR UNLOCK |
| 31 | 10A | R SIDE DOOR UNLOCK |
| 32 | - | - |
| 33 | - | - |
| 34 | - | - |
| 35 | - | - |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
| 39 | 10A | R SIDE DOOR LOCK |
| 40 | 20A | P/SEAT REC / RR HI |
| 41 | 20A | P/SEAT SLIDE / FR HI |
| 42 | (7.5A) | BACK LT |
| 43 | 10A | A/C |
| 44 | 10A | DRL |
| 45 | 10A | ACC |
| 46 | 10A | ACC KEY LOCK |
| 47 | 10A | L SIDE DOOR LOCK |
| 48 | 20A | H/SEAT |
| 49 | (20A) | AS P/SEAT REC* |
| 50 | (10A) | P/LUMBAR DR* |
| 51 | - | - |
| 52 | (20A) | RR H/SEAT* |
| 53 | (20A) | AS P/SEAT SLI* |
| 54 | 10A | OPTION1 / FUEL LID |
| 55 | (30A) | AUDIO AMP* |
| 56 | (30A) | ADS* |
* Not available on all models
Passenger compartment fuse box B (Sub fuse box - 1.5 L engine models):
| Fuse/Relay N° | Rating | Functions |
| A | (10A) | BACKUP2 MAIN |
| B | (7.5A) | AUDIO SUB VST |
| C | (10A) | ACC VST |
| D | (10A) | VST 1 |
| E | (15A) | AUDIO VST |
| F | (20A) | EOP |
| G | - | - |
| H | (10A) | VST 2 |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 125A | BATTERY |
| 2 |
40A 40A 60A 40A 40A 30A 60A |
- - F/BOX OPTION - F/BOX OPTION2 DC/DC2 F/BOX MAIN |
| 3 |
30A 30A 70A 30A 40A 30A 40A |
- - - RR DEFROSTER - - HTR MTR |
| 4 |
30A 40A 30A 30A 30A 30A 30A |
- ABS/VSA MTR DC/DC - IG MAIN R/M1 R/M2 |
| 5 |
30A 30A 70A 30A*1/50A*2 40A 30A 40A |
ST MAGNETIC SW WIPER EPS RFC*2 ABS/VSA FSR MAIN FAN F/BOX MAIN2 |
| 6 | (30A) | SUB FAN |
| 7 | 30A | IG MAIN2 |
| 8 | (7.5A) | ACTIVE EXHAUST VALVE*2 |
| 9 | (30A) | EVP* |
| 10 | (7.5A) | AUDIO SUB*2 |
| 11 | - | - |
| 12 | - | - |
| 13 | 10A | H/STRG BATT SNSR* |
| 14 | - | - |
| 15 | (10A) | FR FOG* |
| 16 | 10A | MG CLUTCH |
| 17 | 15A | WASHER |
| 18 | 15A | HORN |
| 19 | 15A | BACK UP |
| 20 | (15A) | AUDIO |
| 21 | (7.5A) | RFC RLY CL+ |
| 22 | 15A | DBW |
| 23 | - | - |
| 24 | 10A | BACKUP FI-ECU |
| 25 | 15A | IGP |
| 26 | (15A) | TCU* |
| 27 | 15A | LCM L |
| 28 | (15A) | INJ |
| 29 | 10A | STOP |
| 30 | 15A | LCM R |
| 31 | 15A | IG COIL |
| 32 | - | - |
| 33 | 15A | HAZARD |
| 34 | (7.5A) | AUDIO SUB VST |
| 35 | - | - |
| 36 | (30A) | AUDIO VST MAIN |
| 37 | (30A) | BACKUP2 |
| 38 | - | - |
| 39 | (7.5A) | IG1 MON2*2 |
| 40 | (10A) | VBACT |
| 41 | 10A | IGPS [LAF] |
| 42 | (7.5A) | IG1 MON2*1 |
* Not available on all models
*1 1.5 L engine models
*2 2.0 L engine models
