Acura ZDX 2024 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is located to the right of the glove box.
Engine compartment fuse box location:
Fuse Box Diagram | Layout

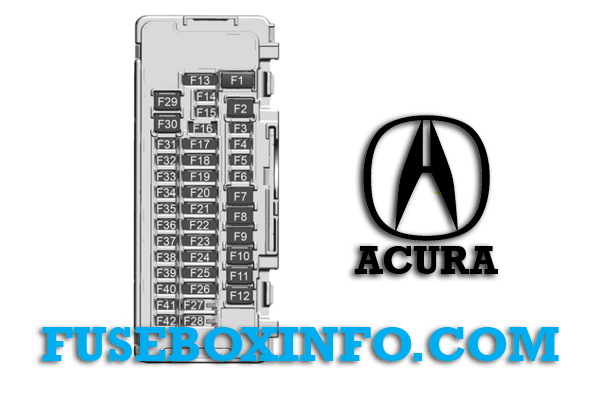

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | - |
| 2 | Auxiliary Power Outlet Instrument Panel |
| 3 | Auxiliary Power Outlet Cargo Area |
| 4 | Universal Serial Bus / AC 150W Power Outlet Rear Console |
| 5 | - |
| 6 | Exterior Lighting Module 1 |
| 7 | - |
| 8 | - |
| 9 | - |
| 10 | - |
| 11 | Rear Blower Module |
| 12 | Front Blower Motor |
| 13 | Vehicle Integration Control Module and Electrification Control Processor (Traction Power Inverter 1 and 2) |
| 14 | Rear Wiper |
| 15 | Headlamp Right |
| 16 | Steering Wheel Control Switch |
| 17 | - |
| 18 | Tail Lamp Right and Tail Lamp Left |
| 19 | Seat Fan Control Module & Misc Body Ignition Circuit |
| 20 | Body Control Module 1 and Vehicle Integration Control Module |
| 21 | Air Condition Electric Compressor and Electronic Transmission Range Select Shifter Module / Electric Park Brake |
| 22 | Virtual Cockpit Unit – |
| 23 | Steering Column Position Module – |
| 24 | Central Gateway Module and Sensing Diagnostic Module/ Automatic Occupant Sensing Module |
| 25 | High Voltage Safety Lockout – |
| 26 | Traction Power Inverter Module 1/2 & Virtual Cockpit System/Instrument Panel Displace/Heads-Up Display/Heating, Ventilation and AirConditioning Display |
| 27 | Body Control Module 3 |
| 28 | - |
| 29 | Amplifier |
| 30 | Body Control Module 4 |
| 31 | Over Head Console / Universal Garage Opener Door / Indicator Light and Solar Sensor |
| 32 | Heated Steering Wheel Module |
| 33 | Body Control Module 2 |
| 34 | Exterior Lighting Module 2 |
| 35 | Headlamp Left |
| 36 | - |
| 37 | Telematics Communication Platform |
| 38 | Diagnostic Link Connector / Wireless Charger Module / Universal Serial Bus Instrument Panel |
| 39 | - |
| 40 | - |
| 41 | Exterior Lighting Module 6 |
| 42 | - |

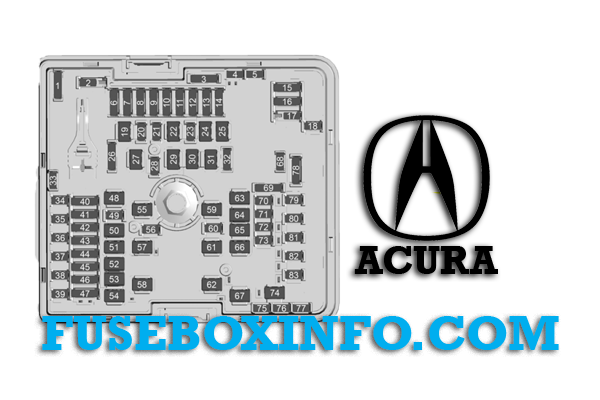

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 01 | Spare |
| 02 | - |
| 03 | Spare |
| 04 | Spare |
| 05 | Spare |
| 06 | Memory Seat Module/ Memory Bolster Module |
| 07 | Primary Evaporator Expansion Valve/Secondary Evaporator Expansion - |
| 08 | Primary Coolant Valve/Secondary Coolant Valve - |
| 09 | - |
| 10 | - |
| 11 | - |
| 12 | Electrification Control Processor (Traction Power Inverter Module 2) and Electrification Control Processor (Traction Power Inverter Module 1) |
| 13 | Energy Storage System Coolant Pump and Power Electronics Coolant Pump |
| 14 | - |
| 15 | Trailer Park Lamps - |
| 16 | - |
| 17 | - |
| 18 | - |
| 19 | - |
| 20 | - |
| 21 | Side Blind Zone Sensing / Short Range Radar Rear / Front Camera Module / ADAS Compute Platform 2 |
| 22 | - |
| 23 | ADAS Compute Platform 3 |
| 24 | - |
| 25 | - |
| 26 | Spare |
| 27 | - |
| 28 | - |
| 29 | - |
| 30 | - |
| 31 | - |
| 32 | Spare |
| 33 | Spare |
| 34 | Exterior Lighting Module 5 |
| 35 | Exterior Lighting Module 4 |
| 36 | Semi Active Damping System |
| 37 | Video Processing Module |
| 38 | Exterior Lighting Module 7 |
| 39 | Exterior Lighting Module 3 |
| 40 | Electrification Control Processor Battery 2 & Electrification Control Processor Battery 3 |
| 41 | Door Switch Panel Left Front and Door Switch Panel Right Front |
| 42 | Virtual Key Sensor Rear & Virtual Key Sensor Front |
| 43 | Front Grille Lamp - |
| 44 | External Condenser Flow Valve/Condensing Heater Flow Valve & Air Condition Module |
| 45 | Hands-Free Rear Closure & Remote Function Actuator |
| 46 | Pedestrian Friendly Alert Module & Rain Humidity Light |
| 47 | Long Range Radar / Short Range Radar Front and Park Assist / Automated Park Assist |
| 48 | Power Tailgate Module |
| 49 | Vehicle Leveling Module - Module Battery Supply |
| 50 | Window Right Front / Right Rear |
| 51 | Vehicle Leveling Module - Motor Battery Supply |
| 52 | Window Left Front / Left Rear |
| 53 | Front Wiper |
| 54 | - |
| 55 | - |
| 56 | Right Fold Seat |
| 57 | Electronic Brake Control Module |
| 58 | - |
| 59 | - |
| 60 | Horn |
| 61 | Rear Defog |
| 62 | - |
| 63 | Sunroof Control |
| 64 | Power Seat Driver |
| 65 | Power Seat Assistant |
| 66 | Condenser Radiator Fan Module |
| 67 | Heated Wiper |
| 68 | Spare |
| 69 | Spare |
| 70 | Relay's Coil |
| 71 | Heated Seat Module Rear 2 |
| 72 | Heated Seat Module Front 1 |
| 73 | Left Fold Seat |
| 74 | Direct Current/Alternate Current Inverter |
| 75 | Spare |
| 76 | Spare |
| 77 | Spare |
| 78 | Trailer Stop Turn Right and Trailer Stop Turn Left |
| 79 | Heated Seat Module Rear 1 |
| 80 | Heated Seat module Front 2 |
| 81 | Out of Park |
| 82 | Wash Pump Rear and Wash Pump Front |
| 83 | Rear Wiper Control |
