GAC GN6 2024 Fuse Box Info

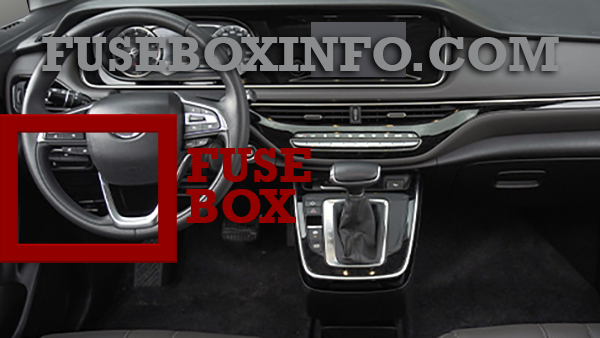

Passenger compartment fuse box location:
The instrument panel fuse box is located to the left of the steering wheel, behind the storage box.

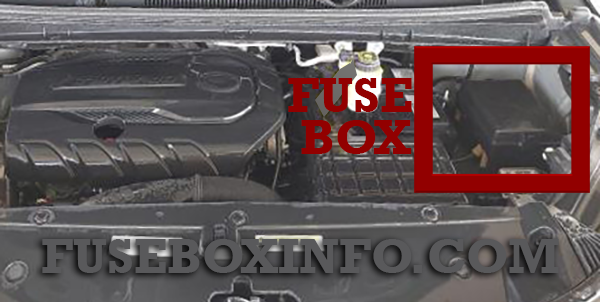

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| IF01 | - | - |
| IF02 | 20A | Electric seat adjustment* |
| IF03 | 20A | Power sunroof control unit*/panorama sunroof control unit*/panorama sunroof sunshade motor* |
| IF04 | - | - |
| IF05 | 20A | Body control module (front right window regulator) |
| IF06 | 20A | Body control module (front left window regulator) |
| IF07 | 20A | Body control module (rear right window regulator) |
| IF08 | 20A | Body control module (rear left window regulator) |
| IF09 | 7.5A | Smartphone wireless charging module* |
| IF10 | - | - |
| IF11 | 15A | Body control module (windshield washer and rear wiper motor) |
| IF12 | 10A | Rear-view mirror folding* |
| IF13 | - | - |
| IF14 | - | - |
| IF15 | - | - |
| IF16 | 30A | Instrument panel fuse box |
| IF17 | 7.5A | OBD Diagnosis Interface |
| IF18 | 20A | Body control module (main light) |
| IF19 | 7.5A | Gateway module |
| IF20 | 7.5A | Gearshift module* |
| IF21 | 10A | Body control module (turn signal) |
| IF22 | - | - |
| IF23 | 7.5A | PEPS control unit * / Ignition switch * / ESCL * |
| IF24 | 20A | Body control module (main light) |
| IF25 | 7.5A | High brake light / EPB switch |
| IF26 | 20A | Body control module (door lock) |
| IF27 | - | - |
| IF28 | SHUNT | Divider |
| IF29 | 10A | SRS control unit |
| IF30 | 7.5A | Engine control unit/AT control unit* |
| IF31 | 7.5A | Gateway module/ body control module / PEPS control unit* |
| IF32 | - | - |
| IF33 | 7.5A | Steering angular speed sensor/EPS control unit/gearshift module* |
| IF34 | 7.5A | Brake switch/ESP and EPB control module |
| IF35 | 7.5A | Parking sensor control unit / panoramic parking control unit * /rear A/C control panel / seat heating * |
| IF36 | 7.5A | Air quality sensor/anion generator* |
| IF37 | 7.5A | Front left combination light (height adjustment motor)/front right combination light (height adjustment motor)/headlight height adjustment switch /automatic headlight control unit |
| IF38 | 7.5A | Rain and light sensor * / power sunroof control unit / panoramic sunroof control unit * / front A/C control panel / A/C control unit / instrument cluster / AUDIO control unit |
| IF39 | 15A | AT control unit* |
| IF40 | 15A | AUDIO control unit |
| IF41 | 7.5A | Body control module / PEPS control unit* |
| IF42 | 7.5A | USB charging port 1/ USB charging port 2 |
| IF43 | 25A | Right trunk 12V power supply interface |
| IF44 | 7.5A | AUDIO control unit / rear-view mirror adjustment switch |
| IF45 | 25A | Front 12V power supply interface |
| IF46 | - | - |
| IF47 | 7.5A | Front blower relay / rear blower relay / defogging relay / PEPS control unit * / electric anti-glare interior rear-view mirror * |
| IF48 | - | - |
| IF49 | - | - |
| IF50 | 7.5A | Body control module / PEPS control unit * / engine control unit / starter relay 1 / starter relay 2 |
| IF51 | 7.5A | Panoramic parking control unit* |
| IF52 | 7.5A | Automatic headlight control unit * |
| IF53 | 7.5A | Front left door handle switch |
| IF54 | 7.5A | A/C control unit / PM2.5 sensor * |
| IF55 | 15A | Body Control Module |
| IF56 | 7.5A | Front A/C control panel / rear A/C control panel / AUDIO display / instrument cluster |
| IR01 | - | IG1 relay |
| IR02 | - | IG2 relay* |
| IR03 | - | - |
| IR04 | - | - |
| IR05 | - | ACC relay* |
| IR06 | - | Rear-view mirror folding relay* |
| IR07 | - | Rear-view mirror unfolding relay* |
* if equipped
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| EF01 | - | - |
| EF02 | - | - |
| EF03 | 40A | Rear Blower |
| EF04 | 40/60A | ESP and EPB control module |
| EF05 | - | - |
| EF06 | - | - |
| EF07 | 7.5A | A/C compressor |
| EF08 | - | - |
| EF09 | - | - |
| EF10 | 20A | Seat Heating* |
| EF11 | 20A | High beam relay (high beam) |
| EF12 | - | - |
| EF13 | 15A | Front Left Low Beam |
| EF14 | 15A | Front Right Low Beam |
| EF15 | 7.5A | Engine control unit |
| EF16 | 7.5A | Left rear-view mirror defogger*/right rear-view mirror defogger* |
| EF17 | - | - |
| EF18 | 40A | ACC relay*/ignition switch/IG1 relay |
| EF19 | 7.5A | Low Beam Relay |
| EF20 | - | - |
| EF21 | - | - |
| EF22 | - | - |
| EF23 | 20A | Fuel pump |
| EF24 | 25A | Wiper |
| EF25 | 7.5A | Brake switch / main relay / starter relay 1 / starter relay 2 / engine control unit / ESP and EPB control module |
| EF26 | 15A | Horn relay / horn |
| EF27 | - | - |
| EF28 | - | - |
| EF29 | - | - |
| EF30 | 10A | Variable cam timing (intake end)/variable cam timing (exhaust end)/discharge valve/throttle valve/carbon canister solenoid valve/oil pump solenoid valve |
| EF31 | 10A | Compressor relay/front oxygen sensor/rear oxygen sensor |
| EF32 | 15A | Engine control unit / clutch position sensor * / starter relay 1 |
| EF33 | 15A | Ignition coil 1/ignition coil 2/ignition coil 3/ignition coil 4 |
| EF34 | 10A | Electronic fan relay / fuel pump relay |
| EF35 | 80A | EPS control unit |
| EF36 | 40A | Instrument panel fuse box |
| EF37 | 40A | Front Blower |
| EF38 | 40A | ESP and EPB control module |
| EF39 | 40A | Rear-view mirror defogger * / rear windshield defogger |
| EF40 | 150A | Divider |
| EF41 | 30A | Starter relay 1 / starter relay 2 / ignition switch / IG2 relay * |
| EF42 | - | - |
| EF43 | 50A | Instrument panel fuse box |
| EF44 | - | - |
| EF45 | - | - |
| EF46 | - | - |
| EF47 | - | - |
| EF48 | - | - |
| EF49 | - | - |
| ER01 | - | Front Blower Relay |
| ER02 | - | Rear Blower Relay |
| ER03 | - | Fuel pump relay |
| ER04 | - | - |
| ER05 | - | Electronic fan relay |
| ER06 | - | Wiper speed regulation relay |
| ER07 | - | Wiper relay |
| ER08 | - | High Beam Relay |
| ER09 | - | Defogging relay |
| ER10 | - | - |
| ER11 | - | Low Beam Relay |
| ER12 | - | Main Relay |
| ER13 | - | Compressor Relay |
| ER14 | - | - |
| ER15 | - | Starter relay 1 |
| ER16 | - | Starter Relay 2 |
| ER17 | - | - |
| ER18 | - | - |
| ER19 | - | Horn Relay |
| ER20 | - | - |
* if equipped
