GAC GN8 2022 Fuse Box Info
Passenger compartment fuse box location:

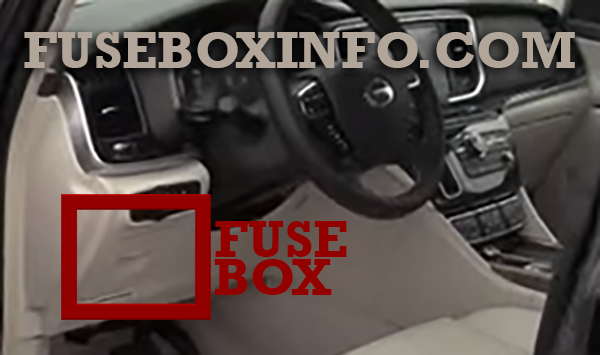

The instrument panel fuse box is located to the left of the steering wheel, behind the storage box.

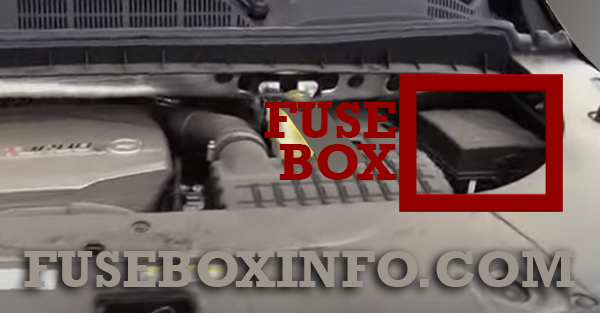

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| IF1 | SHORT PIN | Short pin |
| IF2 | 15A | Body control module (light power supply) |
| IF3 | 7.5A | Gateway control unit |
| IF4 | 10A | Body control module (turn signal power supply) |
| IF5 | 15A | Sunroof control unit |
| IF6 | 25A | Front right seat connector/rear right seat connector |
| IF7 | 7.5A | Front left courtesy light/front right courtesy light/rear left courtesy light/rear right courtesy light/power sunshade/rear-view mirror folding relay/rear-view mirror unfolding relay |
| IF8 | 7.5A | TPMS control unit/EPB switch/high brake light |
| IF9 | 20A | Front AUDIO control unit/rear AUDIO control unit |
| IF10 | 10A | Brake switch/TCU/gearshift lever |
| IF11 | 30A | DCDC converter |
| IF12 | 30A | Right sliding door control unit |
| IF13 | 20A | Body control module (front right window regulator motor/rear right window regulator motor power supply)/front right window regulator motor/rear right window regulator motor |
| IF14 | 30A | IG1 relay/ACC relay |
| IF15 | 25A | Front left seat connector/rear left seat connector |
| IF16 | 7.5A | OBD diagnosis interface |
| IF17 | 10A | Instrument cluster/front central console panel/T-Box control unit/memory seat control unit/ panorama parking control unit |
| IF18 | 30A | Electric hatchback door control unit |
| IF19 | 15A | Body control module (wiper cleaning motor/rear wiper motor power supply) |
| IF20 | 20A | Front left window regulator control unit/front left window regulator switch |
| IF21 | 10A | Rear left seat connector/rear right seat connector |
| IF22 | 20A | Body control module (door lock power supply) |
| IF23 | 30A | Left sliding door control unit |
| IF24 | 25A | Front cigarette lighter/rear cigarette lighter/rear 12V power interface |
| IF25 | 7.5A | PEPS control unit/body control module |
| IF26 | 10A | Memory seat control unit/rear AUDIO control unit/rear- view mirror adjustment switch/front AUDIO control unit |
| IF27 | - | - |
| IF28 | 7.5A | Anion generator |
| IF29 | 10A | Air quality sensor/front blower relay/rear blower relay/interior rear-view mirror/PEPS control unit/defroster relay |
| IF30 | 7.5A | Lane departure warning control unit/headlight height adjustment switch/left combination headlight/right combination headlight/front collision warning control module/panorama parking control unit/reversing radar control unit/automatic parking control unit |
| IF31 | 10A | Auxiliary instrument panel switch group/sunroof control unit/sunroof sunshade/rain and light sensor/front central console panel/front A/C control panel/automatic headlight control unit/T-BOX control unit/instrument cluster/front A/C control unit/rear A/C control panel/front left seat connector/rear left seat connector/rear right seat connector/right sliding door control unit/rear A/C control unit/electric hatchback door control unit/left sliding door control unit//left instrument panel switch group |
| IF32 | 7.5A | Steering angular speed sensor/TPMS control unit/EPS control unit/brake switch/ESP and EPB control unit |
| IF33 | 7.5A | Gateway control unit/body control module/PEPS control unit/DCDC converter |
| IF34 | 10A | Airbag control unit |
| IF35 | 7.5A | Gearshift lever/engine control unit/TCU |
| IF36 | 20A | Body control module (rear left window regulator switch)/rear left window regulator motor |
| IF37 | 7.5A | PEPS control unit |
| IF38 | 7.5A | Front left door antenna/front right door antenna/PEPS control unit |
| IF39 | 7.5A | Intelligent atmosphere light control module/A/C control unit/rear A/C control panel/front A/C control panel/display screen/automatic headlight control unit/front left seat connector/front right seat connector/right sliding door control unit/rear A/C control unit/left sliding door control unit/electric hatchback door closing |
| IF40 | 7.5A | Smartphone wireless charging module/inverter/USB charging port |
| IF41 | 15A | Body control module |
| IF42 | - | - |
| IF43 | 7.5A | Left rear-view mirror heater/right rear-view mirror heater |
| IF44 | 30A | Rear defogging heater |
| IR01 | - | IG2 relay |
| IR02 | - | ACC relay |
| IR03 | - | IG1 relay |
| IR04 | - | - |
| IR05 | - | Defroster relay |
| IR06 | - | Rear-view mirror folding relay |
| IR07 | - | Rear-view mirror unfolding relay |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| EF1 | 150A | Main fuse |
| EF2 | 80A | EPS control unit |
| EF3 | 80A | Instrument panel fuse box |
| EF4 | 50A | Electronic fan relay |
| EF5 | 30A | Rear blower relay |
| EF6 | 20A | Rear left seat connector |
| EF7 | 20A | Front left seat connector |
| EF8 | 30A | Front blower relay |
| EF9 | 40A | ESP and EPB control module |
| EF10 | 50A | Instrument panel fuse box |
| EF11 | 40A | ESP and EPB Control Module |
| EF12 | 30A | Starter relay 1/IG2 relay |
| EF13 | 20A | Wiper relay/wiper speed regulation relay |
| EF14 | 20A | Inverter |
| EF15 | - | - |
| EF16 | - | - |
| EF17 | 7.5A | A/C compressor relay |
| EF18 | - | - |
| EF19 | - | - |
| EF20 | 15A | Fuel pump relay |
| EF21 | - | - |
| EF22 | 7.5A | Engine control unit/starter relay 2 |
| EF23 | 15A | Speaker relay |
| EF24 | 7.5A | Battery sensor |
| EF25 | - | - |
| EF26 | 15A | High beam relay |
| EF27 | - | - |
| EF28 | Short pin | Low beam relay |
| EF29 | Short pin | Main relay |
| EF30 | 10A | Fuel injector 1/fuel injector 2/fuel injector 3/fuel injector 4/fuel pump relay |
| EF31 | 15A | Ignition coil 1/ignition coil 2/ignition coil 3/ignition coil 4 |
| EF32 | 10A | Engine control unit |
| EF33 | 10A | Electronic fan relay/front oxygen sensor/rear oxygen sensor/starter relay 1/A/C compressor relay |
| EF34 | 10A | Left low beam |
| EF35 | 10A | Right low beam |
| EF36 | 7.5A | Engine control unit/DCDC converter |
| EF37 | 10A | Variable camshaft timing (intake end)/variable camshaft timing (exhaust end)/carbon canister solenoid valve/exhaust valve/throttle valve |
| ER01 | - | Wiper relay |
| ER02 | - | Wiper speed regulation relay |
| ER03 | - | Fuel pump relay |
| ER04 | - | - |
| ER05 | - | - |
| ER06 | - | Speaker relay |
| ER07 | - | Low beam relay |
| ER08 | - | A/C compressor relay |
| ER09 | - | High beam relay |
| ER10 | - | Starter relay 2 |
| ER11 | - | Main relay |
| ER12 | - | Electronic fan relay |
| ER13 | - | - |
| ER14 | - | Front blower relay |
| ER15 | - | Rear blower relay |
| ER16 | - | Starter relay 1 |
