GAC GS3 2023 Fuse Box Info

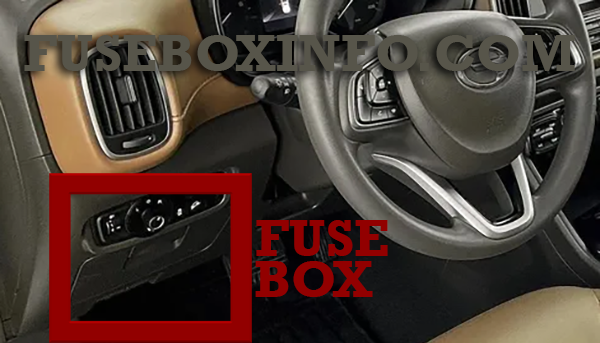

Passenger compartment fuse box location:
The instrument panel fuse box is located to the left of the steering wheel, behind the storage box.

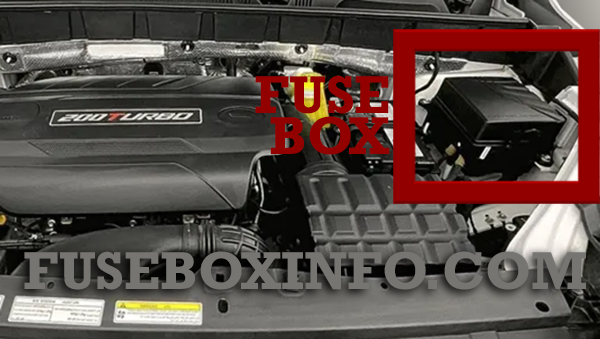

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| IF1 | SHORT PIN | Short-circuit link |
| IF2 | 20A | Body control module |
| IF3 | 7.5A | Gateway control unit |
| IF4 | 10A | Body control module |
| IF5 | 15A | AUDIO control unit |
| IF6 | 15A | Sunroof control unit |
| IF7 | 7.5A | Trunk light / front right courtesy light / front left courtesy light / rear-view mirror folding relay / rear view mirror unfolding relay |
| IF8 | 15A | Body control module |
| IF9 | - | - |
| IF10 | - | - |
| IF11 | - | - |
| IF12 | 20A | Body control module |
| IF13 | 20A | Body control module |
| IF14 | 30A | Ignition switch/IG1 relay/ACC relay |
| IF15 | 20A | Driver side seat control unit |
| IF16 | 7.5A | OBD diagnostic interface |
| IF17 | - | - |
| IF18 | 10A | Instrument cluster/front central console panel/T-BOX control unit |
| IF19 | 15A | Body control module |
| IF20 | 20A | Driver side seat control unit |
| IF21 | - | - |
| IF22 | 20A | Body control module |
| IF23 | - | - |
| IF24 | 20A | Cigarette lighter/12 V power outlet |
| IF25 | 7.5A | Body control module/PEPS control unit |
| IF26 | 10A | Smart display/rear-view mirror adjustment switch/AUDIO control unit |
| IF27 | - | - |
| IF28 | 7.5A | HVAC assembly |
| IF29 | 7.5A | Blower relay/interior rearview mirror/PEPS control unit/defroster relay |
| IF30 | 7.5A | Gateway control unit/body control module/PEPS control unit |
| IF31 | 10A | Sunroof control unit/rain and light sensor/T - BOX control unit/instrument cluster/A/C control unit/driver side seat control unit/left dashboard switch group |
| IF32 | 7.5A | Steering angular speed sensor/EPB control unit/EPS control unit/ABS/ESP control unit |
| IF33 | 7.5A | Front left combination light/front right combination light/reversing radar control unit/headlight height adjustment switch/A/C console panel/front central console panel |
| IF34 | 10A | SRS control unit |
| IF35 | 7.5A | Brake switch/engine control unit/ AT control unit/shift lever |
| IF36 | 7.5A | EPB switch/high brake light |
| IF37 | 7.5A | PEPS control unit |
| IF38 | 7.5A | PEPS control unit/start switch |
| IF39 | 10A | A/C control unit/A/C console panel/smart display |
| IF40 | 7.5A | Starter relay 1/body control module/starter relay 2 |
| IF41 | - | - |
| IF42 | - | - |
| IF43 | 7.5A | Left rear-view mirror/right rear-view mirror |
| IF44 | 30A | Defogger |
| IR1 | - | IG2 relay |
| IR2 | - | ACC relay |
| IR3 | - | IG1 relay |
| IR4 | - | - |
| IR5 | - | Defroster relay |
| IR6 | - | Rear-view mirror folding relay |
| IR7 | - | Rear-view mirror unfolding relay |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| EF1 | 125A | Main fuse |
| EF2 | 80A | EPS control unit |
| EF3 | 50A | Instrument panel fuse box |
| EF4 | 40A | Low-speed fan relay |
| EF5 | 40A | High-speed fan relay 1 |
| EF6 | 40A | ABS/ESPA control unit |
| EF7 | - | - |
| EF8 | 30A | Blower/blower relay |
| EF9 | - | - |
| EF10 | 50A | Instrument panel fuse box |
| EF11 | - | - |
| EF12 | 30A | IG2 relay/ignition switch/starter relay 1/starter relay 2 |
| EF13 | 20A | Wiper relay/wiper speed regulation relay |
| EF14 | - | - |
| EF15 | 25A | ABS/ESP control unit |
| EF16 | 15A | High beam/high beam relay |
| EF17 | 7.5A | A/C compressor relay |
| EF18 | - | - |
| EF19 | - | - |
| EF20 | 15A | Fuel pump relay |
| EF21 | 30A | EPB control unit |
| EF22 | 7.5A | Engine control unit/brake switch |
| EF23 | 15A | Horn relay |
| EF24 | 30A | EPB control unit |
| EF25 | - | - |
| EF26 | 7.5A | Battery sensor |
| EF27 | 15A | AT control unit |
| EF28 | Short-circuit link |
Low beam relay |
| EF29 | Short-circuit link |
Main relay |
| EF30 | 10A | Fuel injector 1/fuel injector 2/fuel injector 3/fuel injector 4/fuel pump relay |
| EF31 | 15A | Ignition coil 1/ignition coil 2/ignition coil 3/ignition coil 4 |
| EF32 | 10A | Engine control unit/clutch sensor/clutch position sensor |
| EF33 | 7.5A | Low-speed fan relay/starter relay 2/high-speed fan relay 2/high-speed fan relay 1/starter relay 1 |
| EF34 | 10A | Front left low beam |
| EF35 | 10A | Front right low beam |
| EF36 | 7.5A | Engine control unit |
| EF37 | 10A | Rear oxygen sensor/variable camshaft timing(exhaust end)/variable camshaft timing (intake end)/canister solenoid valve/front oxygen sensor/throttle valve/eduction valve |
| ER01 | - | Wiper relay |
| ER02 | - | Wiper speed regulation relay |
| ER03 | - | Fuel pump relay |
| ER04 | - | High-speed fan relay 1 |
| ER05 | - | - |
| ER06 | - | Horn relay |
| ER07 | - | Low beam relay |
| ER08 | - | Compressor relay |
| ER09 | - | High beam relay |
| ER10 | - | Starter relay 1 |
| ER11 | - | Main relay |
| ER12 | - | - |
| ER13 | - | Blower relay |
| ER14 | - | Starter relay 2 |
| ER15 | - | High-speed fan relay 2 |
| ER16 | - | Low-speed fan relay |
