GAC Emkoo 2024 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is located to the left of the steering wheel, under the cover.

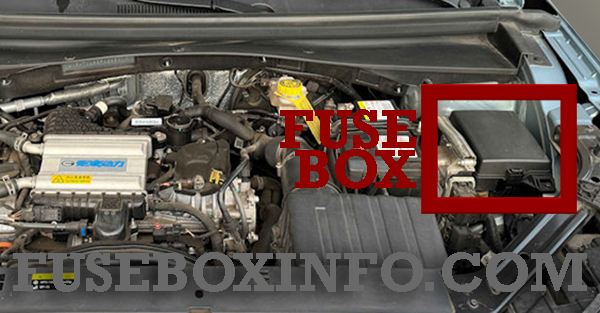

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| IF01 | 20A | Front 12V power outlet |
| IF02 | 7.5A | Integrated BCM*/BCM*/PEPS ECU* |
| IF03 | 7.5A | AV control uni*/GWM*/exterior rearview mirror adjusting switch* |
| IF04 | 7.5A | Rear USB port |
| IF05 | 20A | USB_TYPE_C interface |
| IF06 | - | - |
| IF07 | 7.5A | GWM*/T-BOX ECU* |
| IF08 | 20A | AV control unit* |
| IF09 | 20A | Left front seat connector (HVSM)* |
| IF10 | 10A | Rain and light sensor*/touch control screen |
| IF11 | 10A | GWM / A/C control unit / Left front seat connector (HVSM)* |
| IF12 | - | - |
| IF13 | 7.5A | Blower relay (ER05)/PEPS ECU*/integrated BCM* |
| IF14 | 20A | Integrated BCM*/BCM* |
| IF15 | 10A | Instrument cluster display |
| IF16 | - | - |
| IF17 | 10A | Airbag control unit |
| IF18 | 7.5A | WDCT control unit / engine control unit |
| IF19 | 7.5A | GWM / PEPS ECU*/ T-BOX ECU*/BCM*/instrument cluster*/ integrated BCM* |
| IF20 | 7.5A | Brake switch |
| IF21 | 7.5A | ESPI |
| IF22 | 7.5A | Gearshift lever module/ electronic P gear actuator/ HVAC control unit/ negative ion generator*/ EPS control unit |
| IF23 | 7.5A | Panoramic sunroof sunshade*/ left front seat connector (HVSM)* |
| IF24 | - | - |
| IF25 | 7.5A | Left instrument panel switch block/ left rear combination lamp/air quality sensor*/ right front combination lamp |
| IF26 | 7.5A | RPA ECU*/AV ECU |
| IF27 | - | - |
| IF28 | - | - |
| IF29 | - | - |
| IF30 | 20A | BCM* |
| IF31 | 20A | Integrated BCM*/BCM* |
| IF32 | 7.5A | Power liftgate module*video receiver module* |
| IF33 | 20A | Integrated BCM* |
| IF34 | 7.5A | Gearshift lever module/Lane departure warning module* |
| IF35 | 7.5A | GWM/PEPS ECU* |
| IF36 | 15A | Integrated BCM*/BCM* |
| IF37 | 30A | Integrated BCM*/BCM*/combination instrument |
| IF38 | 10A | Instrument panel switch group-right/instrument panel switch group-left/PEPS ECU*/EPB switch |
| IF39 | 20A | BCM* |
| IF40 | 20A | Integrated BCM*/BCM* |
| IF41 | 7.5A | Driver OBD DLC 1/front passenger OBD DLC 2 |
| IF42 | 20A | Integrated BCM*/BCM* |
| IF43 | Dark current switch |
AV control unit/GWM/left front seat connector (HVSM)*/HVAC control unit/touch control screen/Rain and light sensor* |
| IF44 | 30A | Power liftgate module* |
| IF45 | 30A | Right front door control module* |
| IF46 | 30A | Left front door control module* |
| IF47 | - | - |
| IF48 | - | - |
| IF49 | 20A | BCM* |
| IF50 | 15A | IG2 power supply |
| IF51 | 20A | Right front seat connector (seat adjusting switch)* |
| IF52 | 20A | Right front seat connector (seat adjusting switch)* |
| IF53 | 15A | Integrated BCM*/BCM* |
| IF54 | 20A | BCM* |
| IF55 | - | - |
| IF56 | 20A | Panoramic sunroof sunshade* |
| IF57 | - | - |
| IF58 | - | - |
| IR01 | - | ACC relay |
| IR02 | - | Lock-up relay 1 |
| IR03 | - | Lock-up relay 2 |
| IR04 | - | IG1 relay |
| IR05 | - | - |
| IR06 | - | - |
| IR07 | - | IG2 relay |
* if equipped
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| EF01 | - | - |
| EF02 | 15A | Left front combination lamp* |
| EF03 | 15A | Right front combination lamp* |
| EF04 | 7.5A | Engine control unit |
| EF05 | - | - |
| EF06 | - | - |
| EF07 | - | - |
| EF08 | - | - |
| EF09 | - | - |
| EF10 | 7.5A | WDCT control unit |
| EF11 | 30A | WDCT control unit |
| EF12 | 15A | Horn relay (ER03)/horn |
| EF13 | 30A | WDCT control unit |
| EF14 | 7.5A | MRR module* |
| EF15 | - | - |
| EF16 | 20A | Fuel pump |
| EF17 | 20A | Wiper speed relay (ER11)/ wiper relay (ER12)/ front wiper motor |
| EF18 | 7.5A | Brake switch/low beam relay (ER13) |
| EF19 | 7.5A | Engine control unit/main relay (ER17) |
| EF20 | - | - |
| EF21 | - | - |
| EF22 | 60A | Instrument panel PDU |
| EF23 | 40A | ESPI |
| EF24 | 30A | IG1 power supply |
| EF25 | 30A | Starter excitation coil/engine control unit |
| EF26 | 40A | ACC power supply |
| EF27 | 40A | To HVAC assembly (blower) |
| EF28 | - | - |
| EF29 | 50A | GWM*/T-BOX ECU*/AV control unit*/ left front seat connector*/HVAC control unit |
| EF30 | - | - |
| EF31 | - | - |
| EF32 | 60A | Instrument panel PDU |
| EF33 | - | - |
| EF34 | 80A | EPS control unit |
| EF35 | 10A | Water pump relay (ER02)/fuel pump relay (ER14)/radiator fan control module |
| EF36 | 15A | Ignition coil 1 / ignition coil 2 / ignition coil 3 / ignition coil 4 |
| EF37 | 15A | Engine control unit |
| EF38 | 10A | Compressor relay (ER04)/upstream oxygen sensor/downstream oxygen sensor/starter relay 1(ER15)/starter relay 2(ER16) |
| EF39 | 10A | PCV heater relay (ER01)/PCV heater/canister vent valve/electronic intake air recirculation valve/canister solenoid valve/oil control valve (intake end)/oil pump solenoid valve/oil control valve (exhaust end) |
| EF40 | - | - |
| EF41 | 30A | Left front combination lamp |
| EF42 | 10A | Right front combination lamp |
| EF43 | 30A | Electric water pump |
| EF44 | 7.5A | High beam relay (ER10)/left front combination lamp*/right front combination lamp |
| EF45 | 7.5A | A/C compressor |
| EF46 | - | - |
| EF47 | - | - |
| EF48 | 40/60A | ESPI |
| EF49 | 30A | Electronic P gear actuator |
| EF50 | - | - |
| ER01 | - | PCV heater relay |
| ER02 | - | Water pump relay |
| ER03 | - | Horn relay |
| ER04 | - | Compressor relay |
| ER05 | - | Blower relay |
| ER06 | - | - |
| ER07 | - | - |
| ER08 | - | - |
| ER09 | - | - |
| ER10 | - | High beam relay |
| ER11 | - | Wiper speed relay |
| ER12 | - | Wiper relay |
| ER13 | - | Low beam relay |
| ER14 | - | Fuel pump relay |
| ER15 | - | Starter relay 1 |
| ER16 | - | Starter relay 2 |
| ER17 | - | Main relay |
* if equipped
